Siemens MSI-20B 500-893081 | Addressable Dual-Action Pull Station, Category ID
Architect’s Product Breakdown
The MSI-20B manual pull station serves as an intelligent initiating device within commercial fire alarm architectures. Installed directly onto Signaling Line Circuits (SLC), this model requires a two-step physical motion—lifting a barrier before pulling down the primary handle—to prevent accidental trips from casual contact or warehouse vibration. Its onboard microcomputer chip provides dynamic supervision and communicates point-specific device status back to the main control panel, eliminating zone ambiguity during emergency events.
Integrating this station into legacy MXL or modern XLS networks requires programming the internal address via a handheld programmer or device programming unit. Upgrading older mechanical boxes with this addressable model reduces wiring complexity and tightens diagnostic feedback loops across large facility loops.
Installers must ensure correct loop polarity and avoid excessive wire pulling tension inside shallow electrical boxes. Tight wall clearances can pinch communication wires, causing intermittent ground faults or SLC communication drops that trigger trouble signals on the main fire alarm control panel.

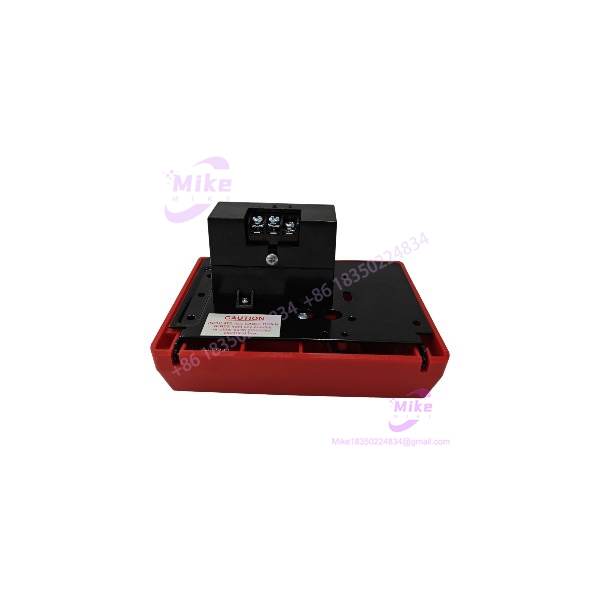

MSI-20B 500-893081
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Siemens Industry, Inc. |
| Model Number | MSI-20B (Part No. 500-893081) |
| Device Type | Dual-Action Addressable Manual Station |
| Operation Method | Double-action (Lift and Pull) |
| Wiring Topology | Two-wire SLC loop connection |
| Address Programming | Electronic programming via DPU or FPI-32 |
| Enclosure Material | High-impact red polycarbonate |
| Dimensions | Standard single-gang or 4-inch backbox compatible |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Agency Listings | UL Listed, FM Approved, CSFM Listed |
Field Engineer’s Pitfall Guide
- Incorrect SLC Loop Polarity: Reversing the incoming and outgoing communication wires on the terminal block will isolate downstream devices and throw an open-circuit trouble on the panel. I once watched a technician spend three hours tracking down a wiring swap in a stairwell because the polarity markings inside the backbox were misread under low emergency lighting.
- Overlooking Address Programming: Installing the unit without setting its unique loop address via a programmer results in communication polling faults. The panel will report an unconfigured device until the correct address is burned into memory.
- Mechanical Reset Errors: Forcing the pull-down handle back up without using the proper Allen key to release the internal latch mechanism will shear the locking teeth and ruin the station housing.
QA & Testing SOP
- Visual & Origin Inspection: Verify original packaging seals, check the red polycarbonate housing for surface cracking, and ensure terminal screws are tight and uncorrodes.
- Live Test Environment: Connect the device to a benchtop SLC test loop driven by a compatible fire control panel or programmer unit.
- Diagnostics & Handshake Tests: Execute an address verification routine to confirm stable two-way data handshakes, then physically actuate the dual-action levers to test alarm transmission.
- Preservation & Packaging: Record the verified device address on the exterior label, install terminal dust covers, and pack the unit in antistatic cushioning material.
Technical FAQ
Can I program this model using panel auto-programming features?
While many modern panels support automatic device discovery, the MSI-20B generally requires explicit address assignment using a dedicated device programmer or DPU tool to ensure correct loop mapping.
Does this station require an external power supply?
No. It operates entirely on power and data drawn directly from the two-wire Signaling Line Circuit (SLC) loop.
Is the pull handle reusable after an alarm activation?
Yes. The handle remains locked in the down position until reset with a standard Allen wrench tool, but it does not require broken glass replacement parts.
Can this device be installed in outdoor wet environments?
No. This model is rated for indoor dry or conditioned spaces only; exterior installations require a weather-resistant weatherproof backbox and cover assembly.
