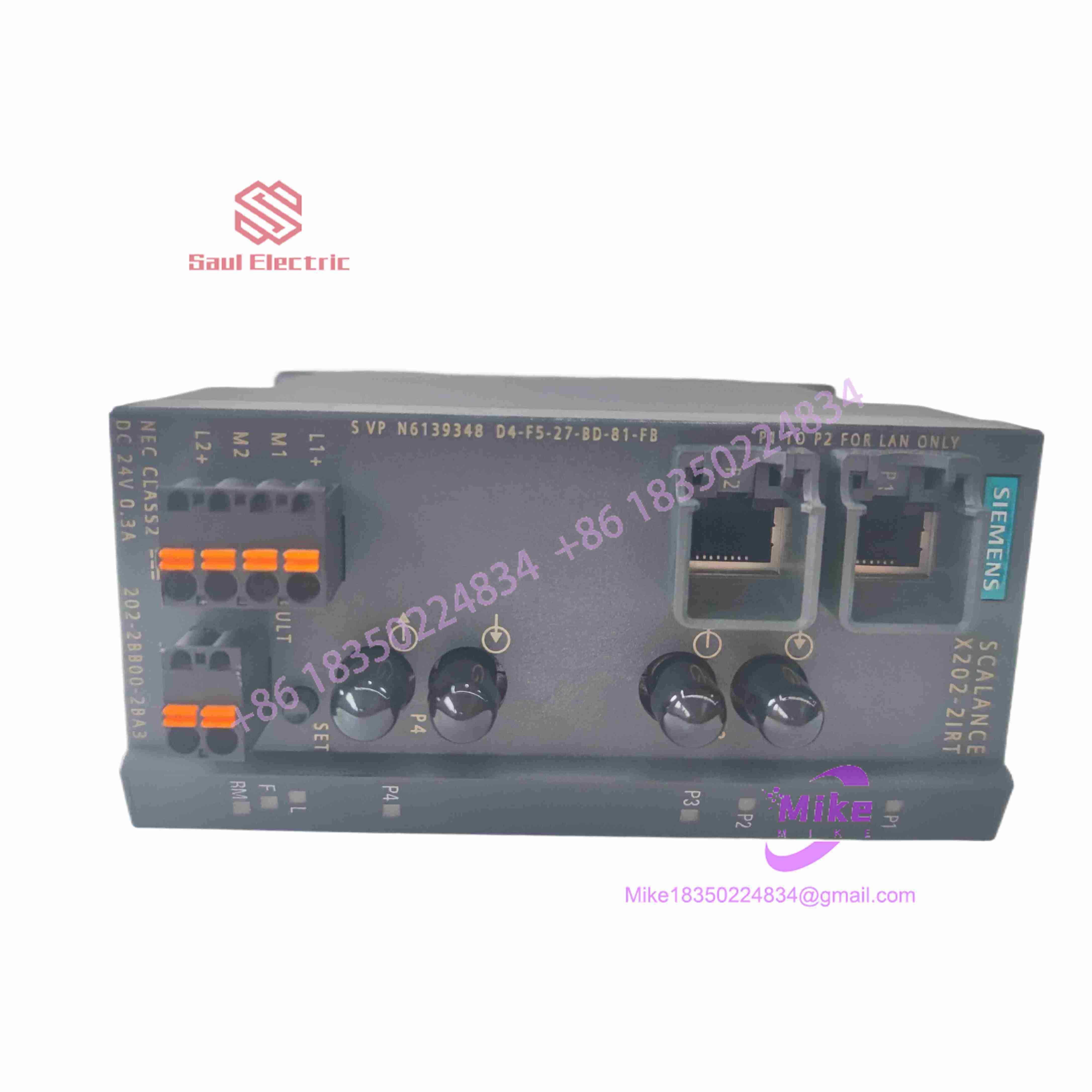

The Siemens 6GK5202-2BB00-2BA3 (SCALANCE X202-2P IRT) is a specialized managed Industrial Ethernet switch purpose-built for high-speed, deterministic PROFINET IRT applications. Driven by onboard ERTEC 200 switching technology, this unit handles Isochronous Real-Time motion control loops—such as multi-axis servo synchronization and high-speed packaging machinery—where jitter must remain well below 1 microsecond.

The hardware architecture pairs two standard 10/100 Mbps RJ45 copper ports with two plastic optical fiber (POF / PCF) duplex BFOC/ST ports. The integration of POF/PCF optical ports allows plant engineers to run noise-immune, high-speed fiber backbones directly between moving machine skids or high-EMI environments (like robotic welding cells) without requiring expensive glass fiber transceivers. The module includes redundant 24 VDC power terminals and a signaling contact for automated fault reporting.

From an engineering lifecycle standpoint, the 6GK5202-2BB00-2BA3 natively supports the C-PLUG (Configuration Plug) swap mechanism. Network topology, IP addressing, PROFINET device names, and port configurations stored on the C-PLUG allow maintenance crews to replace a damaged switch in minutes. Plugging the existing C-PLUG into the replacement unit boots it up with an identical network profile, eliminating the need for a laptop or TIA Portal session on the floor.

6GK5202-2BB00-2BA3

Key Technical Specifications

Field Engineer’s Pitfall Guide (Unique Value)

• KINKING POF FIBER CABLES DURING TIGHT CABINET ROUTING: Never bend Plastic Optical Fiber (POF) lines beyond their minimum 30mm bend radius. When dressing POF cables inside dense enclosures, sharp 90-degree bends cause micro-cracks in the plastic core. This attenuates the optical light path, leading to intermittent “Port Down” errors or high packet drop rates on PROFINET IRT motion loops.
• FORGETTING TO TRANSFER THE C-PLUG DURING SWAPS: Always verify that the C-PLUG is transferred from the old switch to the replacement. If you mount a fresh 6GK5202-2BB00-2BA3 without inserting the original C-PLUG, the switch will boot up with factory default IP settings. The PROFINET Controller (S7-1500 / S7-300) will fail to recognize the device name, keeping the entire IRT network segment down.
• MIXING IRT PORTS WITH NON-IRT SWITCHES IN REDUNDANT RINGS: Do not drop a standard unmanaged switch into an MRPD / IRT ring topology. PROFINET IRT relies on strict hardware clock synchronization. Introducing a standard commercial or unmanaged industrial switch without ERTEC hardware will break the time-slot schedule, causing all downstream motion drives to fault out on sync errors.

QA & Testing SOP (Transparency)

1. Visual & Optical Port Inspection: Microscopic inspection of RJ45 housing clips, terminal block pins, and BFOC optical port alignment for dust, debris, or physical degradation.
2. Dielectric Isolation & Power Check: Dual 24 VDC redundant power inputs tested for high-voltage isolation and reverse-polarity protection.
3. Live PROFINET IRT Bench Test: Module wired into a test rack with an S7-1500 CPU and SINAMICS S120 drive array.
4. Traffic Stress & C-PLUG Verification: 100Mbps line-rate traffic injected across both copper and optical ports for 4 hours while cycling power to verify configuration retention via the C-PLUG slot.
5. ESD Cleaning & Anti-Static Pack: Reset to clean baseline, fitted with protective optical dust caps, sealed in static-shielding bags, and packed in reinforced foam shipping cartons.

Technical FAQ

What is the difference between POF and PCF fiber cables on the 6GK5202-2BB00-2BA3?

POF (Plastic Optical Fiber) uses a 980/1000 µm all-plastic core suitable for short runs up to 50 meters. PCF (Polymer Clad Fiber) features a glass core with a polymer cladding, extending the maximum distance up to 100 meters. The optical ports on this switch support both media types using standard BFOC (ST) connectors.

Can I use standard glass multi-mode fiber cables with this switch?

No. The optical transceivers on the 6GK5202-2BB00-2BA3 are tuned specifically for POF/PCF wavelengths (650 nm LED source). Connecting standard 50/125 µm or 62.5/125 µm glass multi-mode fiber will result in severe signal loss and a failure to establish a link.

How does the C-PLUG work on the SCALANCE X202-2P IRT?

The C-PLUG is a removable memory chip located on the side/top of the unit. When installed, it automatically saves all network settings (IP address, subnet mask, PROFINET device name, VLANs). If the switch hardware fails, you simply pull the C-PLUG from the dead unit, insert it into the replacement 6GK5202-2BB00-2BA3, and power up—no laptop or software configuration required.

What happens if one of the redundant 24VDC power feeds fails?

If one 24VDC feed drops out, the switch continues operating without interruption via the secondary feed. Simultaneously, the internal alarm relay contact drops, and a hardware diagnostic message is sent over PROFINET to alert operators of the power supply failure.

Is the 6GK5202-2BB00-2BA3 compatible with TIA Portal and STEP 7 V5.x?

Yes. The switch can be integrated into your hardware configuration using its standard GSDML file in both STEP 7 Classic (V5.x) and TIA Portal. Once added, it exposes full diagnostic data—including port status, fiber attenuation warnings, and power supply health—directly to the PLC application code.
