SEW-Eurodrive DFS56L/TF/RH1M/KK | AC Synchronous Servo Motor
Dynamic Product Introduction
Achieving sub-millimeter positioning accuracy and fast acceleration profiles in automated machinery requires robust, high-performance synchronous servo motors paired with compatible drive controllers. Honestly, the SEW-Eurodrive DFS56L/TF/RH1M/KK solves this challenge directly by combining high thermal endurance, precise resolver feedback, and a compact industrial footprint. This motor handles dynamic load shifts, continuous speed regulation, and high-frequency start-stop cycles reliably without thermal degradation (—though verifying your exact inverter matching, feedback cable shielding, and brake options beforehand is crucial). Compared to standard induction motors, the SEW DFS56 series ensures optimal dynamic stiffness and precise synchronization across multi-axis industrial automation lines.

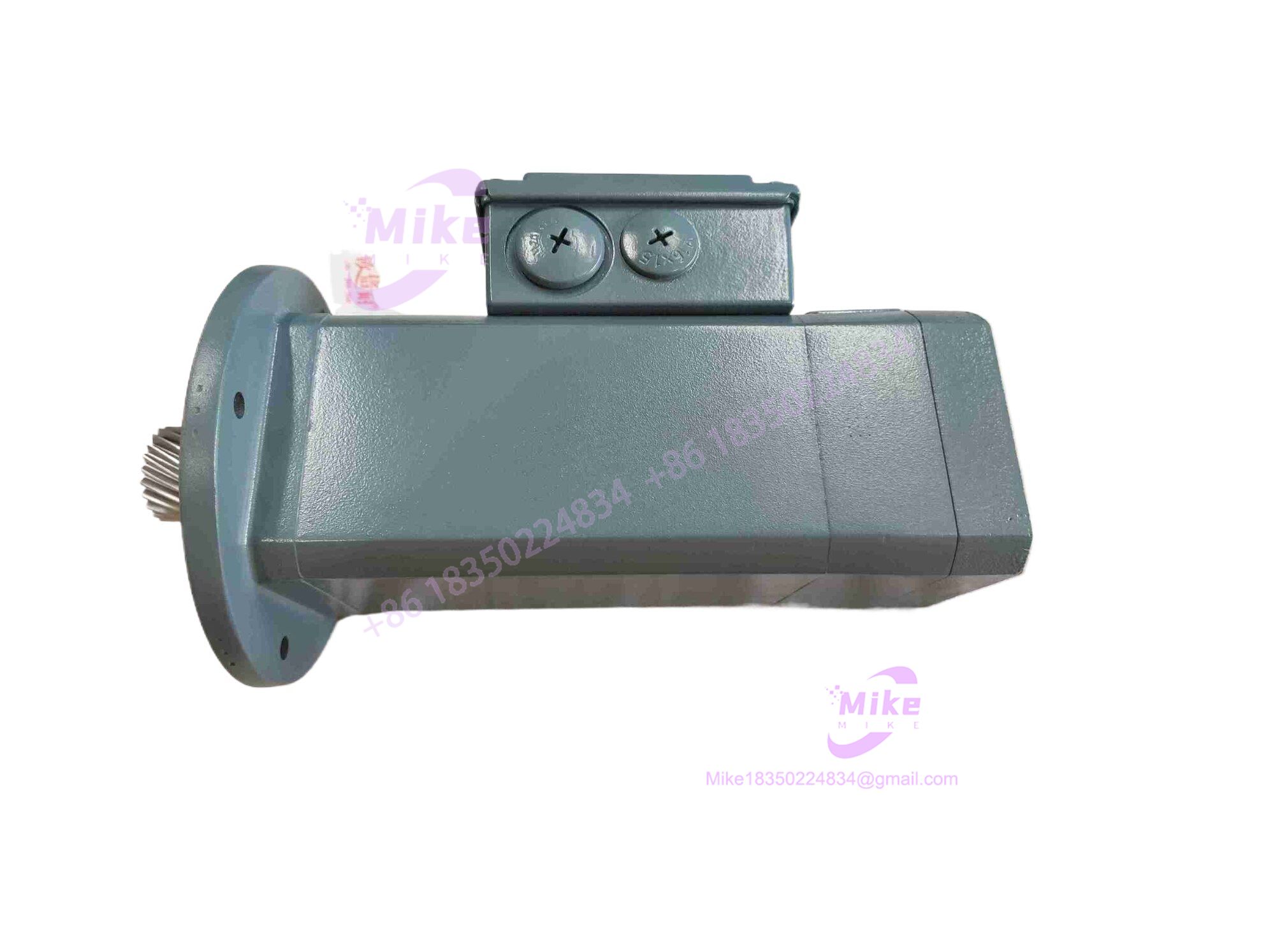

DFS56L/TF/RH1M/KK
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | SEW-Eurodrive DFS Synchronous Servo Motor Line |
| Model Designation | DFS56L/TF/RH1M/KK (DFS56LTFRH1MKK) |
| Motor Type | 3-Phase AC Synchronous Servo Motor |
| Voltage Rating | 400 VAC nominal supply |
| Current Rating | 2.4 ADC / AAC nominal tier |
| Rated Speed | Up to 3000 RPM |
| Thermal Protection | Integrated TF (Temperature Sensor / PTC) |
| Feedback Type | RH1M Resolver feedback interface |
| Connection Type | KK (Terminal Box / Connector configuration) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market servo motors requires rigorous mechanical and electrical verification to ensure stator windings, rotor magnets, and internal resolver feedback remain uncompromised. For every inbound SEW DFS56L/TF/RH1M/KK unit, our audit team logs serial numbers against traceability ledgers, inspects output shafts and bearings for runout or radial play, and checks electrical insulation resistance (megger testing) across all 3-phase stator windings.
Once cleared, the motor is mounted onto a dynamic servo test stand paired with an appropriate SEW MOVIDRIVE inverter. Technicians verify smooth rotation across varying speed profiles up to 3000 RPM, test resolver feedback tracking accuracy, check thermal sensor (TF) continuity, and monitor vibration levels under load. The motor shaft is then treated with anti-corrosion coating, and the unit is securely packaged in custom protective foam.
The Field Engineer’s Pitfall Guide
❗ Resolver Phasing and Cabling: Incorrect wiring or unshielded cables between the resolver (RH1M) and the servo drive can introduce electrical noise, resulting in velocity ripple or drive fault trips.
❗ Thermal Protection Bypass: Operating the servo motor without connecting the integrated TF (temperature sensor) circuit to the inverter trip input risks catastrophic stator burnout under heavy overloads.
❗ Mechanical Alignment & Radial Loads: Exceeding maximum radial or axial shaft load limits during pulley or gearbox coupling can cause premature bearing failure and shaft deflection.
Intent-Driven FAQ
- What do the letters ‘TF’ and ” designate in the part number?
‘TF’ indicates the integrated thermal sensor protection (PTC thermistor), while ” specifies the built-in resolver feedback encoder for closed-loop commutation.
- What inverter series is compatible with the SEW DFS56L motor?
It is engineered to operate seamlessly with SEW-Eurodrive MOVIDRIVE and MOVIAXIS servo inverter systems.
- What type of warranty covers verified surplus SEW servo motors?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- Can this motor be used in explosive or washdown environments?
Standard DFS motors are designed for indoor industrial environments; specialized IP ratings or covers are required for harsh washdown conditions.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
