SEW DFE32B | Fieldbus Interface Board for MOVITRAC & MOVIDRIVE
Dynamic Product Introduction
Integrating industrial variable frequency drives into a broader PLC-controlled PROFIBUS network requires a robust, high-performance communication option card that plugs directly into the drive’s internal slot. Honestly, the SEW-Eurodrive DFE32B solves this challenge directly by providing seamless PROFIBUS-DP and DP-V1 connectivity for MOVITRAC B and MOVIDRIVE B inverters. This module handles real-time process data exchange, parameterization, and diagnostic monitoring reliably without communication lag or frame drops (—though verifying your GSD file version, node address switches, and bus termination resistors beforehand is essential). Compared to external gateway converters, the internal SEW DFE32B option card ensures a clean, reliable installation that preserves cabinet space and delivers high noise immunity.

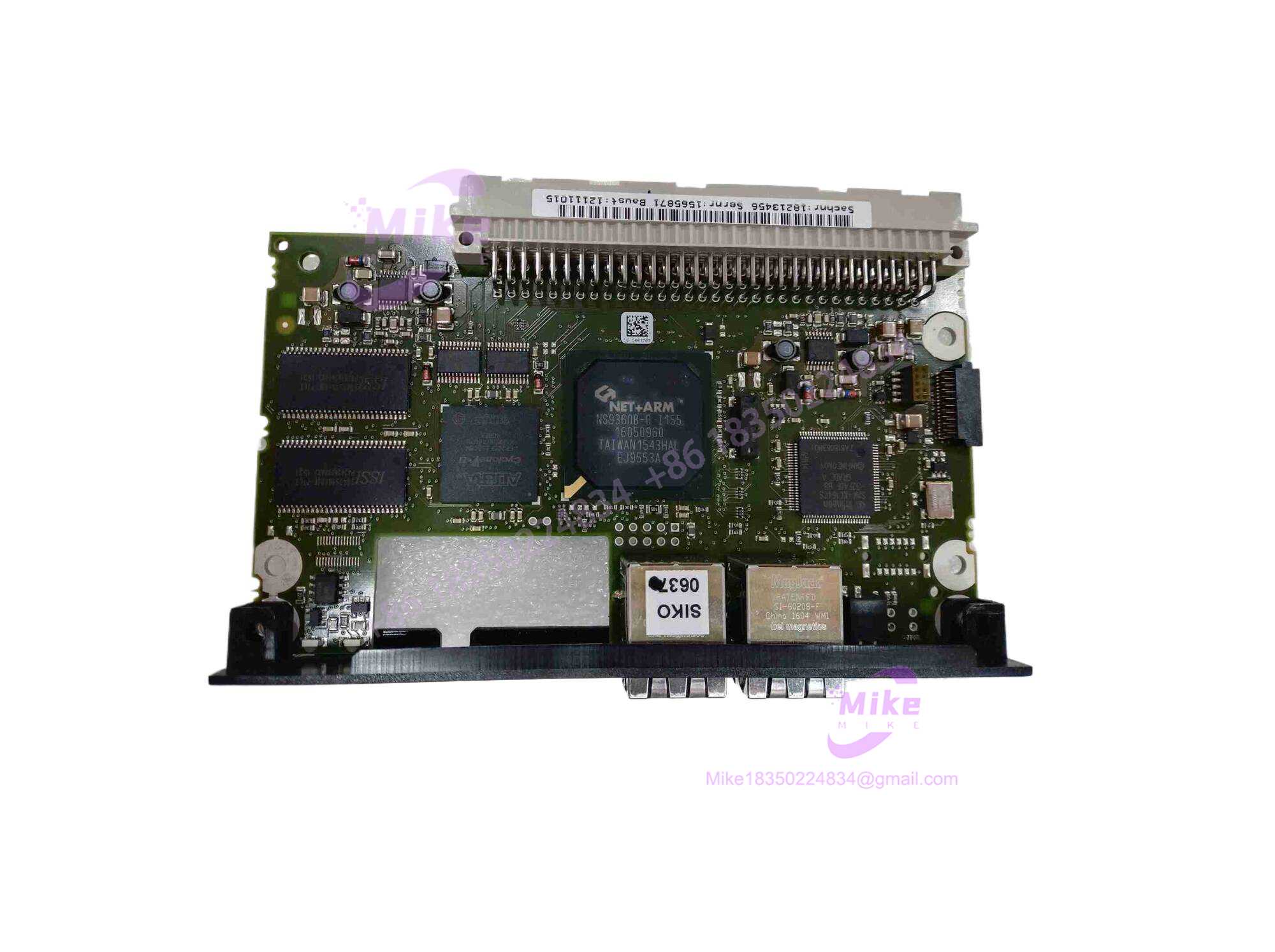

DFE32B
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | SEW-Eurodrive Drive Inverter Communication Options (B-Series) |
| Model Designation | DFE32B (PROFIBUS-DP Option Card) |
| Bus Protocol | PROFIBUS-DP (in accordance with IEC 61158 / EN 50170) |
| Transmission Rates | 9.6 kBaud to 12 MBaud (automatic baud rate detection) |
| Connection Interface | 9-pin D-sub socket connector (with bus termination switch capability) |
| Supported Drive Families | MOVIDRIVE MDX60B/61B, MOVITRAC B, MOVIAXIS |
| Diagnostic Features | Integrated bi-color operating state and status LEDs |
