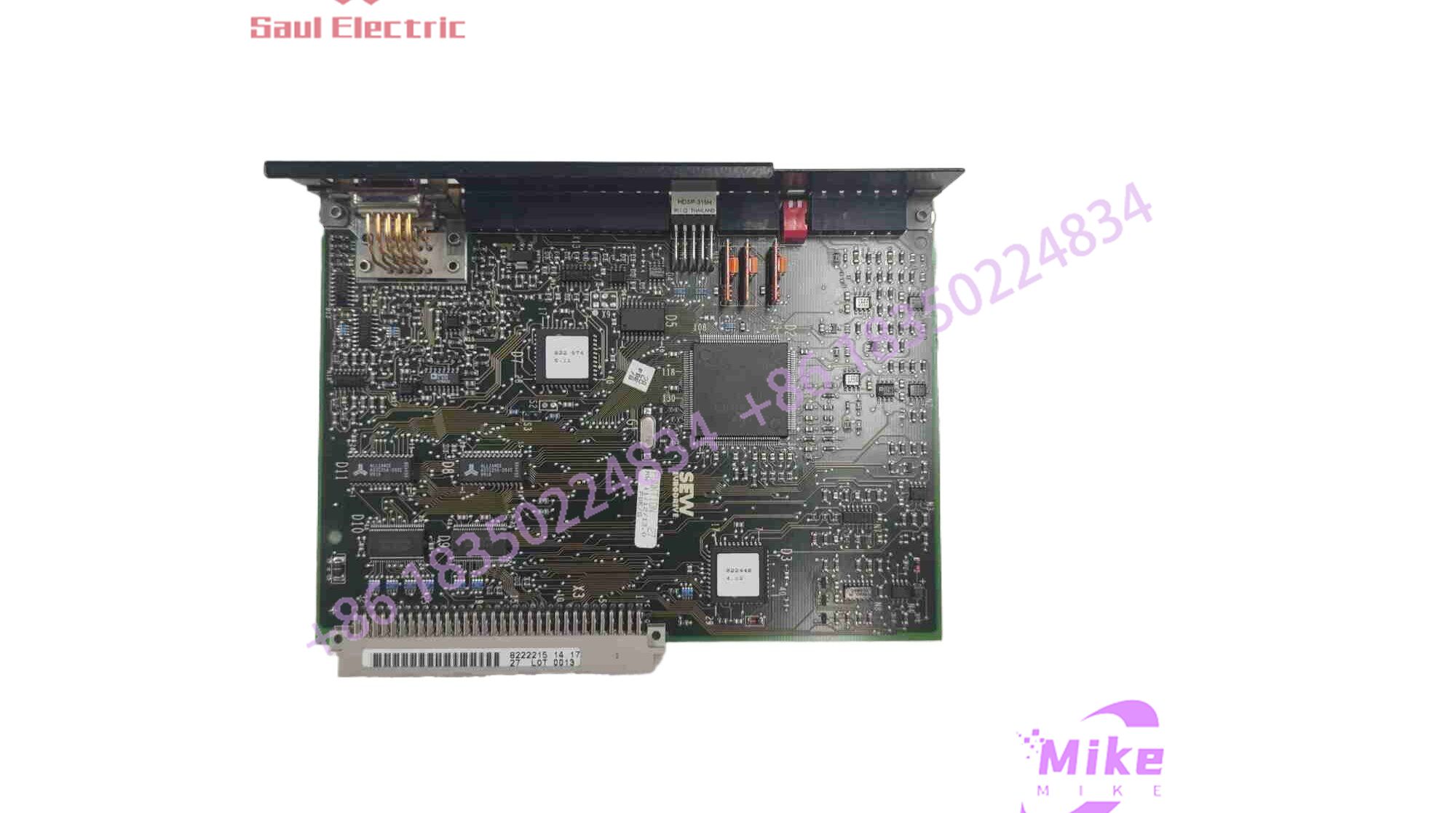

SEW 8222215.14.17 | MDV Control Card, New Surplus In Stock
Architect’s Product Breakdown
The SEW 8222215.14.17 functions as an internal expansion card tailored for the MOVIDRIVE drive ecosystem, bridging raw encoder pulse trains with internal inverter digital signal processor routines. When deployed in high-dynamic positioning loops, it eliminates slip-induced velocity errors by feeding quadrature tracking data straight back to the control core.
Replacing this card on legacy drives requires careful attention to slot placement and firmware revision matching. If you drop a newer hardware revision into an older chassis without updating the basic unit parameter set, expect initialization faults on the serial communication bus. Panel builders and maintenance technicians value this module for its direct backplane integration, avoiding messy external signal converters inside cramped enclosure panels.
8222215.14.17
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | SEW-Eurodrive |
| Part Number | 8222215.14.17 |
| Module Type | Encoder / Control Option Card |
| Compatible Series | MOVIDRIVE MDV |
| Mounting Type | Internal Slot Insertion |
| Input Signals | TTL / RS422 Quadrature Encoder |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +70°C |
| Maximum Humidity | 93% relative humidity, non-condensing |
| Power Consumption | Powered via drive backplane bus |
Field Engineer’s Pitfall Guide (Unique Value)
- Firmware Revision Mismatches: Swapping this card with a different hardware index without verifying the drive base unit firmware can trigger persistent communication error fault codes. Always back up parameters via Movitools before pulling the old board.
- Electrostatic Discharge (ESD) Vulnerability: The exposed edge connectors and surface-mount integrated circuits on this card are sensitive to static. I once watched a technician handle a replacement board without a grounding strap on a dry winter morning, immediately frying the input transceiver and costing the plant an extra twelve hours of downtime.
- Option Slot Allocation: Do not force this card into incorrect internal option slots on the inverter housing. Misalignment bends backplane pins, which requires complete drive teardown to straighten or replace.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Each unit undergoes inspection for OEM holographic seals, matching serial numbers, and physical integrity of the multi-pin backplane connector.
- Test Bench Simulation: The card is installed onto a live MOVIDRIVE test rig running thermal load checks at maximum rated ambient cabinet limits.
- Signal Handshake Validation: Technicians inject synthetic quadrature pulse trains into the input terminals to verify tracking accuracy, zero drift, and internal register scaling.
- Anti-Static Packaging: Post-testing, units are sealed inside moisture-barrier, dissipative ESD shielding bags complete with silica gel desiccants.
Technical FAQ
- Can I hot-swap this card while the drive is powered on? No. Power down the drive and wait at least ten minutes for the DC bus capacitors to completely discharge before removing or inserting option cards to prevent component destruction.
- Does this module retain configuration parameters after power loss? Parameters are stored on the main drive’s parameter module or non-volatile memory, not directly on this option card. Swapping the card leaves base configurations intact on the inverter chassis.
- Is this card compatible with older MOVIDRIVE compact units? Compatibility depends on the exact hardware build index of the base inverter. Verify the unit code suffix against SEW technical documentation before installation.
- What warranty comes with a surplus unit? Units typically carry a standard 12-month replacement warranty backed by rigorous bench testing.
