Sauter AVM234SF132 | 2500N SUT Electric Valve Actuator
Product Introduction
When high-pressure industrial fluid loops demand exact modulation without hunting or calibration drift, standard actuators fall short. The Sauter AVM234SF132 is not a basic open-close motor; it is a high-force, intelligent linear servo drive built around Sauter Universal Technology (SUT)—though setting it up requires careful matching of its internal coding switches to your controller loop.
Driven by a precision stepping motor featuring force-dependent electronic cut-off, this unit automatically maps its stroke length to match the connected valve upon initial power-up. It handles continuous signals as well as switched inputs seamlessly, storing calibrated position data in non-volatile memory so it won’t lose its zero point during a sudden power outage. Encased in a rugged housing, it provides reliable valve manipulation across complex building automation and process applications.

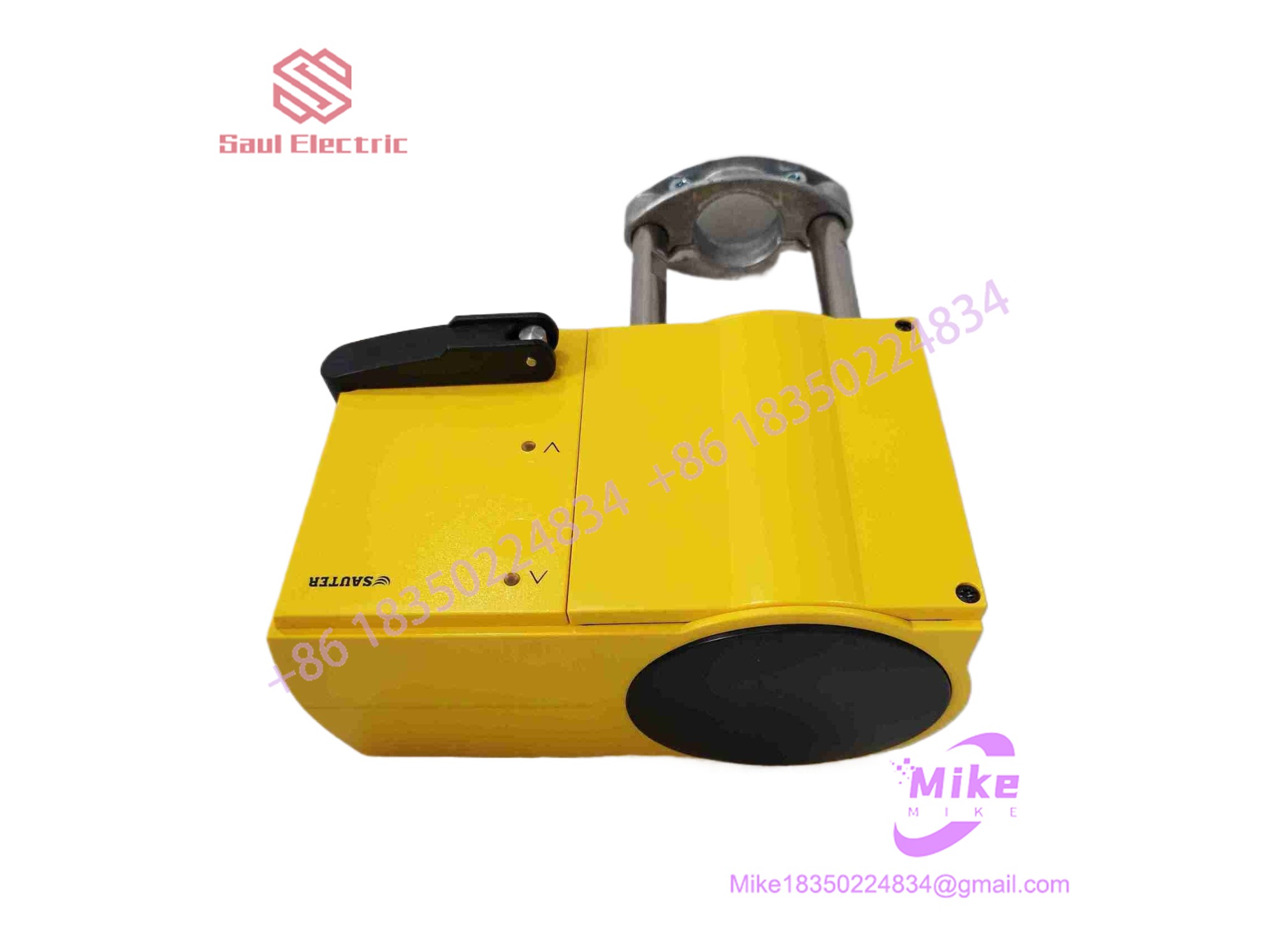

AVM234SF132
Key Technical Specifications
| Parameter | Value |
| Actuating Force | 2500 N |
| Stroke Range | Up to 49 mm (Min valve stroke 8 mm) |
| Running Speed | 2, 4, or 6 s/mm (Selectable via coding switches) |
| Power Supply | 24 V AC/DC (50/60 Hz) |
| Control Signal | 0–10V, 4–20mA, 2-point, or 3-point |
| Protection Rating | IP66 |
| Ambient Temperature | -10°C to 55°C |
| Weight | ~4.1 kg |
Application Scenarios & Pain Points
- District Heating Substation Control: High differential pressures in district energy nodes often force valves off-target. The 2500N force profile of the AVM234SF132 easily overcomes high medium pressures, preventing valve stem binding.
- Exact Flow Regulation in AHUs: Air handling units require smooth, jitter-free damper and valve positioning. The selectable running times (2 to 6 s/mm) allow control engineers to tune response rates and eliminate system hunting.
- Retrofitting Legacy Valve Trains: Replacing failed actuators on older VQD, BQD, or third-party flanged valves usually triggers a massive piping redesign. The SUT automatic stroke adjustment and flexible mounting options allow this unit to couple directly without custom linkage kits.
QA & Live Testing SOP (Trust Signal)
Every AVM234SF132 undergoes a rigorous functional verification check on our test rig before dispatch. We apply a 24V supply to verify the internal stepping motor initializes correctly, cycling the drive through a simulated 0–40mm stroke to test the absolute position encoder. We validate response tracking against both 0–10V and 4–20mA analog inputs using a process calibrator, and we ensure the electronic force-dependent cut-off engages cleanly at travel end-stops without stalling or overheating the gearbox.
Field Engineer’s Pitfall Guide
- ❗ Orientation Restrictions: Never mount the actuator in a suspended (upside-down) position. Condensation or dripping valve packing leaks will run down the spindle and infiltrate the motor housing, destroying the internal electronics. Mount vertically upright to horizontal.
- ❗ Initialisation Interruption: Do not manually force or interrupt the valve spindle during its initial power-up calibration sequence. If interrupted, the unit may miscalculate travel limits, leading to incomplete valve closure.
- ❗ Coding Switch Mismatches: Ensure your running time and characteristic switches (linear vs. equal-percentage) match your loop controller parameters before commissioning, or the control loop will experience severe lag or over-oscillation.
Intent-Driven FAQ
- Can I run the AVM234SF132 directly on a 230V mains supply?
Not out of the box. It is natively engineered for 24V AC/DC. To use it on 230V systems, you must install an approved Sauter internal power module accessory.
- What happens to the valve position if the power drops out?
Thanks to the absolute distance measurement system, the actuator retains its calibrated stroke data in non-volatile memory during a power failure, meaning it will not lose its reference point when power is restored.
- How do I manually override the actuator during a control failure?
The unit includes an integrated manual crank handle. Engaging it automatically cuts power to the motor, allowing you to manually position the valve and trigger a re-initialisation once returned to auto.
- Is this actuator compatible with non-Sauter valves?
Yes. While it natively bolts onto Sauter series valves (like VQD, BQD, VUG, and VUS), various mechanical adapter kits are available to mount it securely onto competing manufacturer valve bodies.
- What do the diagnostic LEDs indicate on the housing?
The two-color LEDs display the live status of the applied control signal, distinguishing instantly between continuous operation, switched modes, and error states.
