Saia Burgess PCD3.W340 | Analog Input Module Key Spec Data
Architect’s Product Breakdown
The Saia Burgess PCD3.W340 operates as a high-density analog input module within modular programmable logic controller architectures, bridging field transmitters with core processing units. In continuous industrial and building automation environments where monitoring diverse process variables (such as temperature, pressure, and flow) is critical, maintaining signal integrity across multiple channels is essential to prevent data skew. This specific hardware model accommodates up to 8 independent input channels, supporting software-selectable configurations for standard 4–20 mA current loops and 0–10 V voltage signals.
Deploying or replacing this analog module model requires strict attention to shielding practices, loop power wiring, and terminal configuration. When performing maintenance swaps, engineers must ensure that field sensor commons are properly terminated and that input ranges match the software configuration in the PG5 control suite. Omitting proper cable shielding or running analog signal wires parallel to high-voltage power lines can introduce electromagnetic interference, resulting in erratic analog readings and process instability.

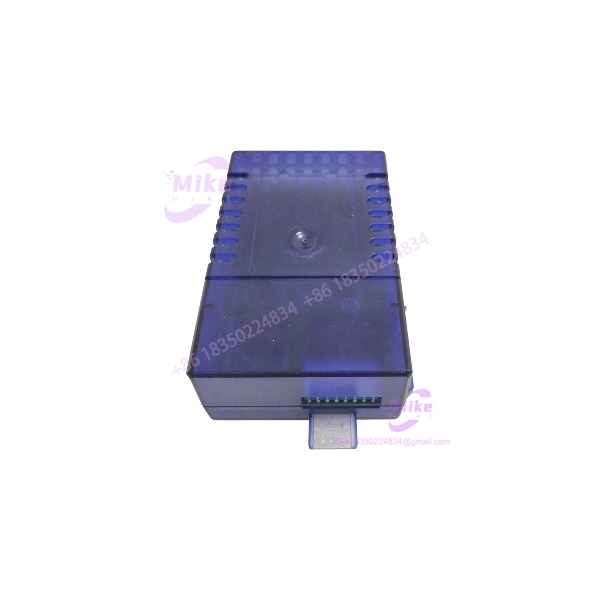

PCD3.W340
Key Technical Specifications
- Manufacturer: Saia Burgess Controls (Honeywell)
- Product Category: Analog Input Module
- Part Number / Catalog No.: PCD3.W340
- Number of Channels: 8 analog input channels
- Input Signal Types: Software-selectable 4–20 mA current and 0–10 V voltage signals
- Resolution: 12-bit ADC conversion
- Diagnostic Features: Open-circuit/burnout detection for 4–20 mA loops
- Termination Type: Removable plug-in spring terminal blocks
- Operating Temperature Range: 0°C to +55°C (standard industrial threshold)
- Relative Humidity Limit: 10% to 85% (non-condensing)
- Mounting Type: DIN Rail / PCD3 Modular System Rack
- Weight: Approximately 100 g
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCD3.W340 module while the rack power supply or field circuits are energized. Doing so can arc backplane pins and corrupt local I/O communications.
- Ignoring Cable Shield Grounding: Failing to properly ground the shielding drain wire of analog signal cables at one end will introduce common-mode noise, causing fluctuating or jittery process variable readings.
- Mismatched Software and Hardware Configuration: When swapping this module model, verify that the channel software configuration in the PG5 suite matches the physical wiring (e.g., current vs. voltage mode). Applying 24 VDC loop power directly across a voltage input configured incorrectly can damage the internal channel circuitry.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo physical inspection to confirm clean PCB traces, secure housing latches, and authentic OEM labeling.
- Live Test Bench Environment: Modules are inserted into a validation PCD3 test rack powered by regulated supplies to evaluate backplane communication stability.
- Signal Calibration & Loop Testing: Technicians inject calibrated current and voltage signals across all 8 channels to verify conversion accuracy, linearity, and open-circuit detection.
- Anti-Static Packaging: Post-testing units are wrapped in static-dissipative shielding material and packed with protective cushioning foam to prevent transit damage.
Technical FAQ
Can I hot-swap the PCD3.W340 module while the PLC rack is powered?
No. I/O modules and terminal blocks must only be inserted or removed when both the PCD controller rack and external power supplies are completely disconnected.
Does this module support both current and voltage inputs?
Yes. The PCD3.W340 features software-selectable input ranges supporting standard 4–20 mA current loops and 0–10 V voltage signals.
What causes fluctuating or unstable readings on an input channel?
Unstable readings are typically caused by unshielded signal cables routed near high-voltage lines, loose terminal connections, or grounding loops in the field sensor wiring.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard industrial environments.
