SAACKE SEAVIS HMI 05E 637307 | Marine Boiler HMI
Dynamic Product Introduction
The SAACKE SEAVIS HMI 05E, part 637307, is the operator-facing component of the Se@vis burner-management environment. It is not the safety controller itself and should not be listed as a replacement for the Se@vis FSC-01 controller. SAACKE’s own technical parts documentation identifies 637307 specifically as “Bedienpanel HMI 05e” and describes the HMI as a control and monitoring device with a touch screen and interfaces.
That distinction matters when sourcing a replacement from surplus inventory. A working screen is only one part of the equation; the HMI has to communicate with the installed Se@vis control architecture and, depending on the system revision, retain or access the correct application data. SAACKE documentation separately identifies a 4 GB Se@vis SDMicro Card, part 639806, which is a useful warning against assuming that the HMI hardware alone contains the complete burner-management application.
Recent procurement records also continue to identify the Seavis HMI 05E as a component of SAACKE burner-control systems alongside the Seavis FSC-01 V3.02 controller and FSC-IO modules. That supports its role as an operator panel rather than a standalone PLC or burner controller.

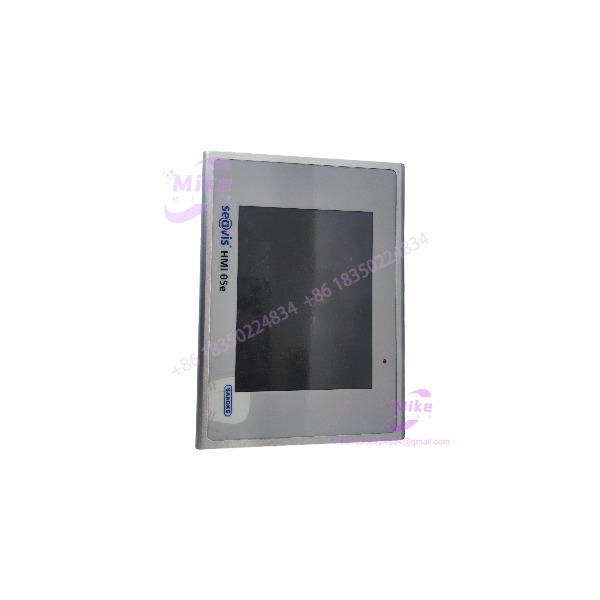

HMI 05E
Key Technical Specifications
- Manufacturer: SAACKE
- Product: Se@vis HMI 05E
- Model: HMI 05E
- Part Number / MPN: 637307
- Product Category: HMI / operator panel
- System: SAACKE Se@vis
- Application: Burner management and combustion-system control/monitoring
- Operator Interface: Touch-screen HMI
- System Function: Operator control and monitoring
- Associated Control Architecture: Se@vis FSC burner-management system
- Related Controller: Se@vis FSC-01 / FSC-01 V3.02 appears in current procurement records
- Related I/O: Se@vis FSC-IO modules are documented alongside the HMI in system procurement
- Separate Application Storage Identified by SAACKE: Se@vis SDMicro Card 4GB, part 639806
- Exact Display Size: Not sufficiently verified from the available SAACKE documentation
- Exact Display Resolution: Not sufficiently verified
- Exact Supply Voltage: Not sufficiently verified
- Exact Power Consumption: Not sufficiently verified
- Exact Communication Ports: Not sufficiently verified
- Exact Touchscreen Technology: Public documentation confirms touch-screen operation but does not provide enough evidence here to specify the underlying touch technology
- Firmware Version: Must be verified from the individual unit/system
- Environmental Rating: Must be verified against the applicable Se@vis hardware revision
- Condition of Supplied eBay Unit: Used
Why the 637307 Identification Matters
The SAACKE technical parts list gives a particularly useful piece of evidence:
- 637307 — Bedienpanel HMI 05e
- 639806 — Se@vis SDMicro Card 4GB
- 636092 — Touch pen
- These components are listed within the same Se@vis burner-management documentation.
For procurement, that means 637307 should be treated as the physical HMI/operator panel, while the SD card and control application should be checked separately. A replacement panel that powers up but lacks the expected project/application data is not necessarily a complete system replacement.
Global Sourcing & Live-Test SOP
1. Inbound Verification
For a used SAACKE HMI 05E 637307, start with identity rather than cosmetics.
- Photograph the front and rear of the panel.
- Record the SAACKE part number 637307.
- Record serial number and hardware revision if visible.
- Photograph every connector and terminal area.
- Check the touchscreen surface for cracks, deep scratches and pressure damage.
- Inspect mounting hardware and enclosure edges.
- Check for evidence of moisture ingress or corrosion.
- Confirm that the unit is actually HMI 05E rather than another Se@vis panel revision.
The supplied marketplace listing identifies the item as SAACKE SEAVIS HMI 05E DISPLAY 637307, model SEAVIS HMI 05E / HMI 05E, MPN 637307, and lists it as used.
2. Display and Touch Test
Before connecting the HMI to a live burner system:
- Power it using the documented supply arrangement for the exact revision.
- Check backlight/display uniformity.
- Test the full touch area.
- Look for dead zones or intermittent touch registration.
- Check whether the boot sequence completes normally.
- Record displayed firmware/application information where accessible.
Do not assume that a responsive touchscreen proves that the panel is application-ready.
3. Communication Test
If a suitable Se@vis test environment is available:
- Connect the HMI to the appropriate control system.
- Confirm communication with the Se@vis controller.
- Verify displayed process values.
- Test command acknowledgement.
- Check alarm/event display.
- Verify navigation through the intended operator screens.
- Confirm that the HMI does not generate communication faults after an extended run.
A bench test that only proves the screen illuminates is insufficient for a critical burner-management replacement.
4. Application/Data Verification
Check whether the original installation uses a separate Se@vis SDMicro Card 4GB, part 639806.
If application data is stored externally, preserve the original card and configuration. Do not overwrite or format an original card merely to test a replacement HMI. SAACKE’s parts documentation treats the SD card as a separately identified component.
5. Extended Run
For a used panel intended for operational service:
- Run the HMI continuously for at least 24 hours where practical.
- Monitor display stability.
- Test repeated touchscreen inputs.
- Monitor communication status.
- Record any application errors or unexpected restarts.
- Save photographs of the final diagnostic state.
Package the display face with a rigid protective layer and prevent connector damage during shipping.
Field Engineer’s Pitfall Guide
❗ Do Not Confuse the HMI With the Burner Controller
The HMI 05E 637307 is the operator interface. SAACKE documentation separately identifies the Se@vis FSC controller and FSC-IO modules. A replacement HMI therefore does not automatically replace the burner-management controller or its safety logic.
❗ Do Not Assume the Application Is Stored Entirely in the Panel
SAACKE identifies a separate 639806 Se@vis SDMicro Card 4GB in the same system documentation. If the original installation depends on removable application/configuration storage, preserve that data during a migration or HMI replacement.
❗ Avoid Guessing the Electrical Specification From Other HMI Products
There are many industrial panels with similar physical construction, but the available documentation does not establish the exact HMI 05E supply voltage, power consumption, display resolution or connector pinout. Do not populate those fields from a visually similar panel. Verify the actual nameplate and SAACKE system documentation first.
Intent-Driven FAQ
What is SAACKE SEAVIS HMI 05E 637307?
It is the SAACKE Se@vis HMI operator panel, part number 637307, used as a control and monitoring interface within SAACKE burner-management systems. SAACKE’s technical parts documentation explicitly identifies 637307 as the HMI 05e operator panel.
Is HMI 05E a PLC?
No. The available documentation identifies it as an HMI control and monitoring device. The Se@vis control architecture uses separate controller and I/O hardware, including FSC-01 and FSC-IO modules.
What is SAACKE part number 637307?
637307 is the documented SAACKE part number for the Se@vis HMI 05E operator panel. The same number appears in SAACKE system documentation and the supplied marketplace listing.
Does the HMI 05E include the Se@vis software?
Do not assume that it does in isolation. SAACKE separately identifies the Se@vis SDMicro Card 4GB, part 639806, indicating that application/data storage can be a separate hardware item. The exact arrangement depends on the installed Se@vis system revision.
Can I use another SAACKE HMI as a replacement?
Not without checking the system revision, hardware compatibility, communication interface, application data and mounting arrangement. The correct replacement should be verified against the original 637307 configuration and the associated Se@vis controller.
Is the eBay HMI 05E new or used?
The supplied listing identifies the unit as Used and gives the model as SEAVIS HMI 05E / HMI 05E, with MPN 637307. The seller also states that the item has been opened and is supplied without its original packaging.
What should I verify before buying a used HMI 05E?
Request clear photographs of the 637307 nameplate, rear connectors, display condition and any boot/application screen. Also verify whether the original installation includes the separate Se@vis SDMicro Card and whether the seller has actually tested communication with a compatible Se@vis controller.
Procurement Description
SAACKE SEAVIS HMI 05E operator panel, Part No. 637307, for Se@vis burner-management and combustion-control systems. Touch-screen HMI used for operator control and process monitoring. SAACKE documentation identifies 637307 as the HMI 05e panel and separately lists Se@vis application storage hardware. Verify hardware revision, supply requirements, connector configuration, firmware/application data and compatibility with the installed Se@vis FSC controller before commissioning.
