REOTRON 567LH-DP24 | Thyristor Power Controller Unit

Description

REOTRON 567LH-DP24 | Thyristor Power Controller Unit

Dynamic Product Introduction

Thyristor power controllers in heavy industrial heating, glass manufacturing, or thermal processing lines suffer when analog control loops pick up electrical noise from nearby high-frequency transformers. Thermal runaway or erratic power cycling usually traces back to degraded potentiometer control lines or noisy 0–10V analog references. The REOTRON 567LH-DP24 resolves these loop instabilities by routing setpoint and feedback signals directly across a digital Profibus DP fieldbus while maintaining galvanic separation between power electronics and local control logic.

Upgrading legacy phase-angle firing boards to the digital 567LH-DP24 architecture eliminates drift caused by ambient cabinet heat. By shifting from analog firing boards to microprocessor-driven thyristor gating, the module maintains tight current density across varying heating element resistance curves. For plant maintenance teams facing tight downtime windows during furnace overhauls, drop-in replacement units with pre-verified Profibus addresses ensure instant network reconnection without re-tuning downstream power steps.

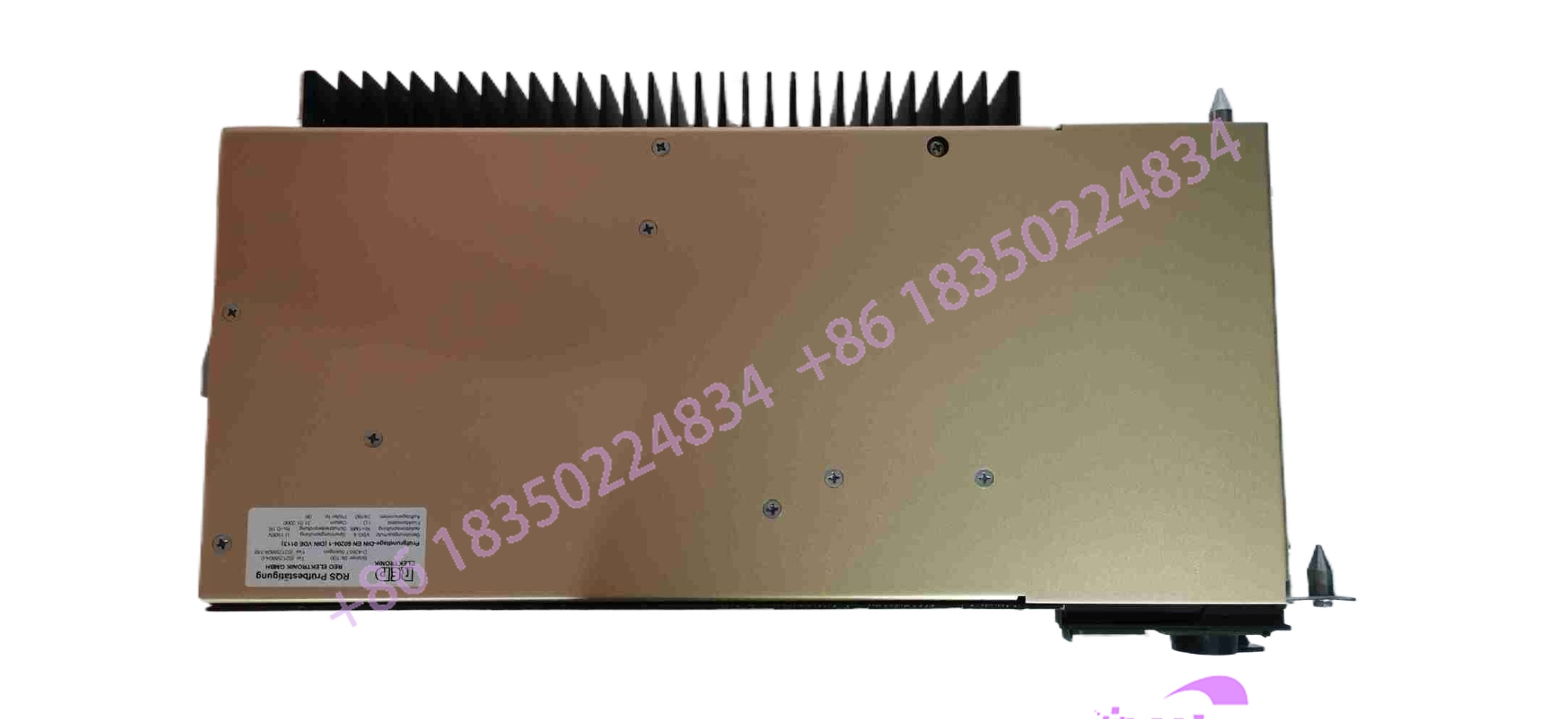

567LH-DP24

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring replacement REOTRON units for critical industrial thermal control demands rigorous shop-floor validation before the card ever reaches a customer’s control panel:

Inbound Verification & Physical Audit

• Visual & Traceability Checks: Verification of serial codes, PCB revisions, and original REO manufacturing labels to rule out gray-market refurbishments or counterfeit components.
• Component Stress Inspection: High-resolution optical examination of power thyristor gates, terminal blocks, internal smoothing capacitors, and optocouplers for heat discoloration or solder fracturing.

Live Simulation Setup

• Power & Logic Initialization: The 567LH-DP24 unit is energized on a specialized test bench utilizing a stable 24V DC logic supply and simulated single-phase AC load setup.
• Profibus Network Handshake: Connected to an active PLC network master running the corresponding GSD file to confirm auto-baud locking and cyclic parameter read/write cycles.

Diagnostic & Stress Testing

• Full-Load Phase Angle Verification: Oscilloscope testing on the thyristor pulse output across varying command percentages (0% to 100%) to confirm linear firing angle modulation without waveform distortion.
• 24-Hour Thermal Burn-In: Continuous operation under 80% maximum rated load inside a temperature-controlled test enclosure to stress gate drive circuits and thermal dissipation pathways.

Final Packaging Preparation

• Firmware & Address Logging: Verification of installed firmware version and resetting of default bus communication parameters on the test certificate.
• ESD Safe Sealing: Double-wrapped in static-shielding film with moisture absorber packets prior to export packing.

The Field Engineer’s Pitfall Guide

❗ Mismatched Master GSD Configuration Files

When replacing an older revision of the REOTRON 567LH-DP24 with a newer hardware hardware batch, the master PLC system may reject the node if the GSD module parameter length does not match the hardware’s expected I/O word allocation.

(Honestly, I’ve seen an entire heat-treatment bay remain down for two shifts because the technicians swapped the physical hardware but forgot to update the Profibus device profile in the PLC hardware config).

❗ Operating Without the 24V Auxiliary Logic Supply

While the high-voltage thyristor circuit handles load delivery, the onboard microprocessor and Profibus transceiver rely strictly on the external 24V DC supply. Powering up the AC line voltage without the 24V DC logic rail active will prevent the thyristor gate driver from initializing properly, triggering immediate network bus faults.

❗ Rotary / DIP Switch Hardware Re-addressing While Powered

Modifying the hardware address DIP switches on the front panel while the 24V DC logic power is turned ON will not update the active network address. The microprocessor reads the physical switch configuration strictly during its boot-up diagnostic phase. Always cycle 24V control power after changing node address pins.

Intent-Driven FAQ

Will I lose my custom firing angle or current limit settings when swapping this unit?

If parameters were stored locally on the unit rather than downloaded automatically via the Profibus DP master upon startup, you will need to re-configure the operating parameters (such as phase angle mode vs. burst mode and current limit thresholds) using the network setup software or local configuration tool.

What causes a solid RED Fault LED after installing a replacement 567LH-DP24?

A persistent RED Fault LED usually indicates either an auxiliary 24V DC voltage dip, a missing line synchronization phase signal, or an over-temperature condition on the heatsink. Verify that line power is present and that external thermal switches are closed.

Can the REOTRON 567LH- be operated via analog signals if the Profibus line fails?

Depending on the specific sub-model configuration, REOTRON controllers often feature fallback analog control terminals (0–10V or 4–20mA). However, if configured specifically for network control mode, a loss of fieldbus communication will trigger an emergency lock-out until the Profibus cyclic frame is restored.

Does the 24V supply need to be isolated from the main plant power?

Yes. It is standard engineering practice to power the 567LH- logic circuit using an isolated, regulated 24V DC industrial power supply to prevent ground loops and high-voltage spikes from coupling into the controller’s digital processing board.

What warranty coverage comes with surplus or refurbished REOTRON units?

All certified surplus and fully tested replacement units carry a 12-month operational warranty covering component defects and functional failure under standard operating conditions.
