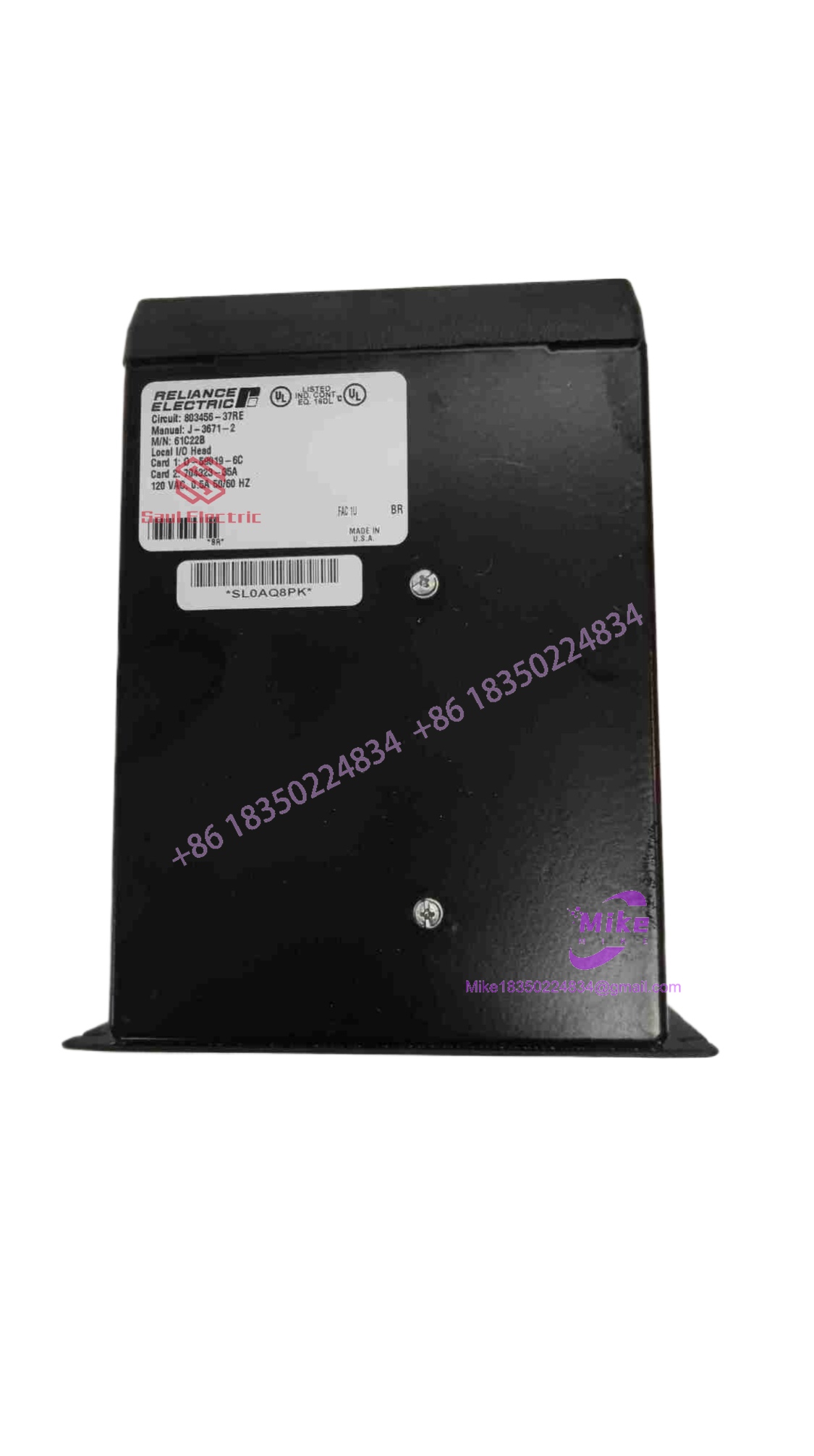

Reliance Electric 61C22B | AutoMate 120VAC Local I/O Head Module
Dynamic Product Introduction
Communication timeouts and data-link drops on legacy AutoMate architectures frequently stem from revision-level mismatching or aging local head multiplexers rather than controller software corruption. When an older digital I/O rail starts dropping data frames or failing to sync with the central processor unit, adjusting software scan rates rarely resolves underlying hardware-level degradation. Deploying the Reliance Electric 61C22B resolves this vulnerability directly, upgrading the node with a factory-spec Revision B local head engineered to maintain strict 250K baud polling loops.
In plant-floor maintenance scenarios, swapping in this specific local head stabilizes rack communication and restores clean local power distribution without forcing a costly network topology rewrite. (Though verifying rail address jumpers and fuse integrity prior to initial energization remains non-negotiable.) It handles heavy industrial electrical noise cleanly, preserving deterministic control loops across legacy automation cells.
61C22B
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | 120VAC Rail-Mounted Digital Local I/O Head |
| Series Compatibility | Reliance Electric AutoMate 20 / 20E System Architecture |
| Input Voltage Rating | 120 VAC (50/60 Hz) |
| Current Rating | 0.5 A |
| Communication Speed | 250K baud with hardware parity checking |
| Rail Power Capacity | Powers up to 4 full digital I/O rails (64 points total) |
| Fuse Protection | 250VAC MDQ 4-amp replaceable line fuse |
| Instruction Manual Reference | J-3671 |
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing legacy local I/O communication hardware requires rigorous diagnostic validation to guarantee seamless backplane integration and packet integrity.
- Inbound Verification: Incoming modules undergo comprehensive serial number tracking, OEM watermark verification, and anti-counterfeit checks against historical Reliance production logs.
- Live Simulation: Qualified local heads are slotted into an active AutoMate test rack powered by a controlled AC supply to evaluate communication multiplexing and rail power output.
- Diagnostics: Technicians execute continuous packet communication sweeps, baud-rate stress tests, and power-rail voltage regulation checks to catch latent component drift.
- Final Prep: Connector edge fingers and 12-pin interface ports are cleaned and inspected for micro-corrosion, and the unit is sealed inside heavy-duty anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Local vs. Remote Configuration Mix-ups: Assuming a local head can act interchangeably in remote I/O link drops without adherence to topology rules will result in immediate communication handshaking failures. Always ensure the module is deployed strictly within local I/O configurations tied directly to processor ports.
❗ Blown Power-Stage Fuses: Failing to inspect the 250VAC MDQ fuse compartment prior to installation can leave an entire multi-rail bank unpowered upon startup. Always verify fuse continuity during routine pre-checks.
❗ Hot-Swapping Under Power: Sliding a local head interface module into an energized chassis risks backplane pin arcing and logic corruption. Always kill rack power and verify zero voltage state before seating or unseating modules.
Intent-Driven FAQ
Will this 61C22B local head communicate natively with my existing AutoMate 20 processor?
Yes, the 61C22B is engineered specifically for the AutoMate 20/20E and related DCS architectures, maintaining precise register compatibility and 250K baud handshakes.
Are these units factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed OEM surplus and fully recertified, bench-tested units. Each listing explicitly notes the condition tier to match your plant’s procurement rules.
What do the faceplate LED indicators report during operation?
The faceplate includes dedicated indicators for system power (POWER), active communication (COM), and discrete rail fault statuses (RAIL FAULT 0-3) across the connected I/O ports for rapid troubleshooting.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical health, communication interface stability, and internal power supply functionality from day one.
Does the module require an external power supply for connected I/O rails?
No, the unit features an onboard power supply explicitly designed to provide necessary operating power to up to four full rails (64 points) of digital I/O modules.
