PROCES-DATA PD1611 | P-NET Analog Transmitter & Base Module Specs
Architect’s Product Breakdown
The PROCES-DATA PD1611 operates as a specialized analog signal transmitter and fieldbus interface node within the Series 1000 process control architecture. Designed for process automation, agricultural control networks, and distributed industrial monitoring, this hardware model digitizes analog field measurements (such as temperature, pressure, or flow inputs) and broadcasts calibrated data directly across a local or wide-area P-NET fieldbus ring. By handling local signal conditioning directly at the sensor node, the unit eliminates analog signal degradation caused by long field wiring runs.
Deploying or servicing this model in an existing P-NET network requires establishing correct node addressing via hardware selectors or configuration software, as well as terminating signal leads correctly on the module’s terminal base. Featuring a ruggedized, compact industrial housing, the module provides galvanic isolation between field measurement circuits, power supply lines, and the high-speed P-NET bus structure. When conducting maintenance swaps, engineers must ensure that external 24 VDC loop power is verified and that network baud rate configurations match existing node profiles to prevent communication dropouts.

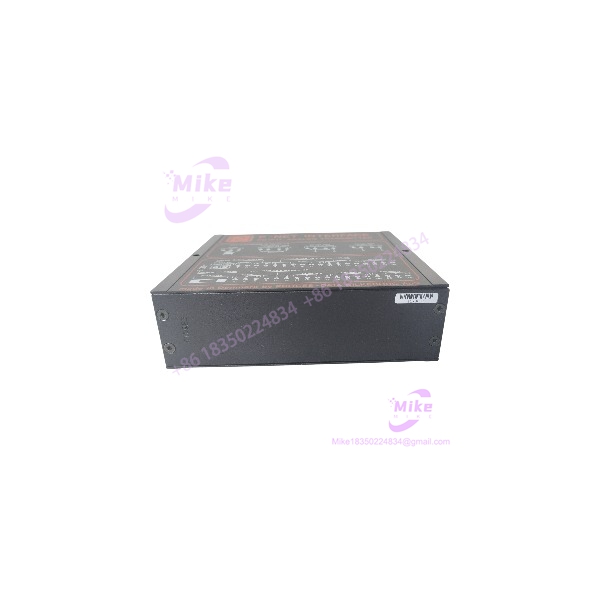

PD1611
Key Technical Specifications
- Manufacturer: PROCES-DATA (Process Data)
- Product Category: P-NET Fieldbus Analog Transmitter / Interface Module
- Part Number / Catalog No.: PD1611 (PD 1611)
- Product Series: Series 1000 Module Family
- Fieldbus Protocol: P-NET Fieldbus Standard (RS-485 / optical / ring topology)
- Operating Supply Voltage: 24 VDC nominal (\pm 15\% industrial tolerance)
- Signal Conversion: Multi-channel high-resolution A/D conversion for analog sensor signals
- Galvanic Isolation: Isolation barrier between power, field inputs, and P-NET bus logic
- Mounting / Connection: Base module mounting with screw terminal blocks for field lines
- Operating Temperature Range: -10°C to +60°C
- Weight: Approximately 0.45 kg (0.99 lb)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never unseat or disconnect the PD1611 module from its base unit while the 24 VDC power supply is active. Unplugging the device under load can induce voltage transients that risk corrupting onboard non-volatile memory or damaging adjacent P-NET network transceivers.
- Incorrect P-NET Fieldbus Cable Shielding: Failing to properly drain and ground the shielded twisted-pair cable on the P-NET communication line can introduce severe common-mode electrical noise, causing continuous frame CRC errors and node drops.
- Unshielded Sensor Lead Run Lengths: Connecting unshielded analog sensor wires over long physical distances in high-EMI environments (near large pumps, VFDs, or contactors) can induce noise into high-resolution input stages, degrading measurement accuracy.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean connector terminal contacts, intact housing clips, unblemished circuit diagrams/labels, and authentic OEM markings.
- Live Test Bench Environment: Modules are mounted on a dedicated P-NET test bench supplied with regulated 24 VDC power to confirm normal startup, LED diagnostic indicators, and internal microprocessor health.
- Analog Calibration & Fieldbus Polling Test: Technicians inject multi-point precision voltage/current signals into the analog input channels and monitor the P-NET bus traffic using diagnostic software to confirm accurate A/D conversion, node addressing, and data transmission stability.
- Anti-Static Packaging: Post-testing units are wrapped in multi-layer conductive ESD shielding bags and cushioned in high-density foam packaging to prevent mechanical or electrostatic damage during transport.
Technical FAQ
Can I hot-swap the PROCES-DATA PD1611 transmitter while the system is energized?
No. Always isolate the 24 VDC supply power before removing or installing the module to avoid electrical transients or communication bus lockups.
What communication protocol does this model use to talk to higher-level controllers?
This model utilizes the P-NET fieldbus protocol, a open European industrial standard designed for process automation networks.
Does the module require a separate base unit for installation?
Yes. The PD1611 interfaces with a compatible PROCES-DATA base unit (such as the PD1611 base format) that provides physical DIN-rail mounting and wiring terminal termination.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed process control modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard operating conditions.
