Parker CPAR-08AE-14293 | AC Servo Motor Controller Unit
Dynamic Product Introduction
Maintaining tight motion trajectories and rapid settling times across high-speed automated machinery requires responsive, dependable servo drive hardware. When legacy drive units experience power stage faults or communication timeouts, installing a verified Parker CPAR-08AE-14293 servo controller reestablishes absolute performance to your motion axis.
Engineered for precision industrial applications, this unit handles complex motion profiles without thermal instability or tracking lag. Deploying a fresh CPAR-08AE-14293 module ensures seamless tuning integration, reliable feedback processing, and uninterrupted production throughput.

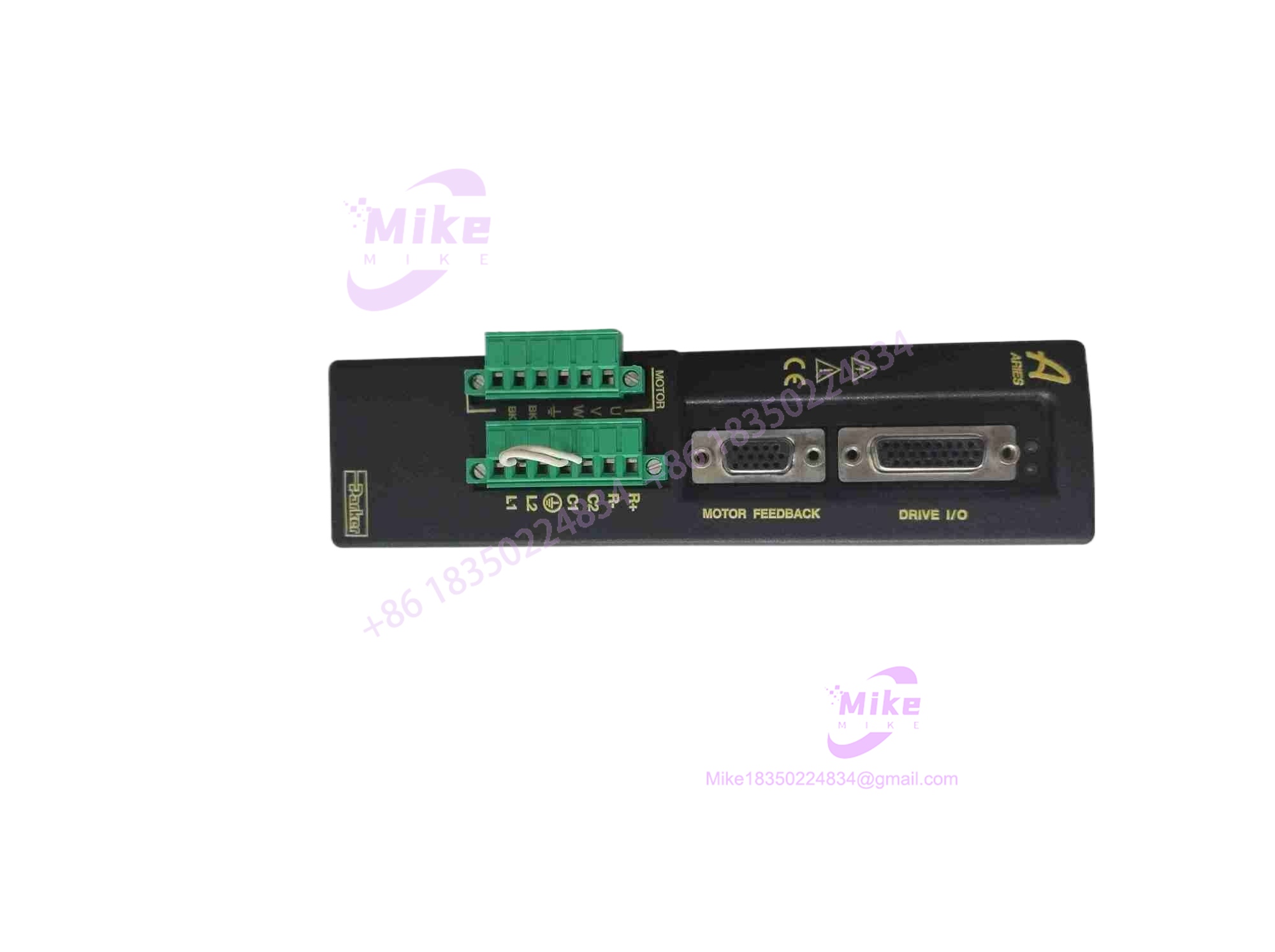

CPAR-08AE-14293
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Model | CPAR-08AE-14293 |
| Manufacturer | Parker Hannifin Corporation |
| System Compatibility | Industrial multi-axis and single-axis motion architectures |
| Module Classification | Digital AC Servo Drive / Controller |
| Input Voltage Range | Standard industrial AC supply configurations (120/240V class variant) |
| Control Modes | Position, velocity, and torque closed-loop execution |
| Feedback Support | Incremental encoder, absolute formats, or resolver variants |
| Operating Temperature | 0°C to +40°C / +45°C industrial panel threshold |
| Enclosure Protection | IP20 cabinet-mount electronic card format |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring legacy or surplus industrial servo drives through secondary markets requires an exhaustive verification workflow to guarantee power stage stability and logic health.
- Inbound Verification: Incoming CPAR-08AE-14293 batches undergo high-magnification optical checks of power terminal integrity, control board capacitors, and holographic laser traceability against official Parker production logs.
- Live Simulation: Technicians mount the drive onto a dynamic test bench coupled to a matched servomotor load and powered via a variable AC supply to verify pre-charge and rectifier behavior.
- Diagnostics: Engineers execute full-scale software tuning sweeps, validating feedback tracking linearity, current loop response, and running a 24-hour thermal soak load test.
- Final Prep: Hardware units receive comprehensive firmware revision logging, static-dissipative wrapping, and custom foam-lined vacuum sealing inside heavy-gauge moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ DC Bus Pre-Charge Hazards: Failing to allow adequate discharge time after cutting power before touching terminal blocks can result in severe electrical shock from residual high-voltage DC bus charge. Always verify zero voltage with a meter prior to servicing.
❗ Inadequate Heat Dissipation Clearance: Mounting the CPAR-08AE-14293 inside a cramped enclosure without maintaining proper vertical airflow clearance will trigger thermal over-temperature faults under heavy loads. Always verify cabinet cooling fans are operational.
❗ Feedback Shield Grounding Omissions: Leaving encoder or resolver cable shields ungrounded at the designated chassis clamp will inject high-frequency electrical noise into the control loops, causing erratic motor jitter. Always secure shield drains cleanly.
Intent-Driven FAQ
Will swapping this drive require downloading a new configuration file?
Yes, servo tuning parameters, gain settings, and commutation offsets are stored within the drive’s memory structure. When replacing a unit, you must upload your machine’s backup parameter file to match your motor mechanics.
Are these units original factory sealed or surplus stock?
Sourced inventory pools span both original factory-sealed packaging and fully certified, tested surplus hardware. Every single unit undergoes rigorous bench validation prior to dispatch.
Can this drive handle third-party servomotors?
While optimized for companion motor lines within the Parker ecosystem, compatibility depends entirely on matching feedback types, pole counts, and electrical winding curves. Always cross-reference motor specs before pairing.
What software tool is used to configure and tune this drive?
Drive configuration, tuning, and diagnostic monitoring are managed via dedicated PC software suites provided by Parker for their digital servo drive platforms.
What kind of warranty accompanies a replacement servo drive?
All supplied units carry a comprehensive 1-year operational warranty covering internal power stage health, control board stability, and communication port integrity.
Are you integrating this drive into an active machine axis or keeping it on hand as a critical hot-spare for your production line?
