Pacific Scientific R43HCNA-R2-NS-VS-00 | High-Torque Brushless Servo Motor
Dynamic Product Introduction
Motion control engineers managing automated packaging lines, CNC milling stations, or high-speed indexing tables know how destructive sudden motor winding breakdown or feedback alignment loss can be to production flow. When an active axis experiences insulation failure or resolver phase drift, replacing the servo motor with an exact match is critical to restoring motion parameters without re-tuning servo drive gain loops.
The Pacific Scientific R43HCNA-R2-NS-VS-00 is engineered for demanding industrial positioning applications that demand high torque density and low inertia rotor response. Built into a heavy-duty NEMA 42 frame housing, this brushless AC servo motor utilizes high-temperature neodymium magnets and Class H insulated stator windings to prevent thermal degradation under rapid acceleration and deceleration cycles. Equipped with a precision factory-aligned resolver feedback assembly, the R43HCNA-R2-NS-VS-00 delivers stable position feedback and clean commutation for legacy Pacific Scientific drives as well as modern Kollmorgen servo amplifiers.

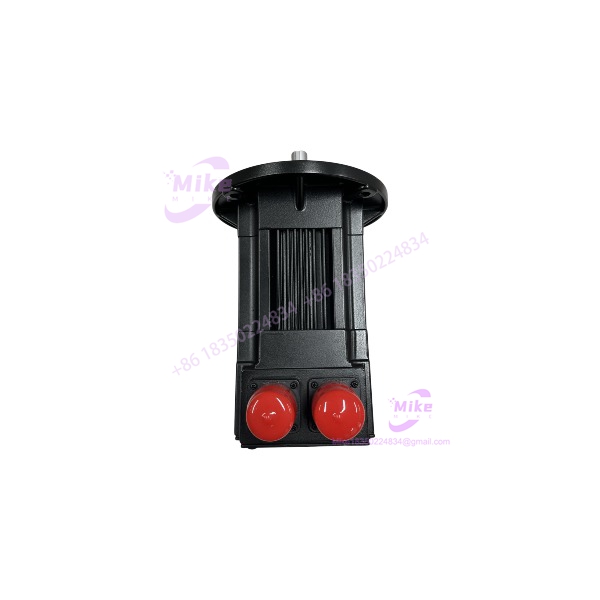

R43HCNA-R2-NS-VS-00
Key Technical Specifications
- Motor Frame Size: NEMA 42 (118 mm square flange)
- Winding Code: HC (High-speed / custom voltage winding profile)
- Feedback Type: R2 (Integrated brushless resolver for commutation and position feedback)
- Shaft Configuration: NS (Standard smooth/keyed shaft output)
- Mounting Option: VS (Standard face/flange mount with industrial shaft seal)
- Design Sequence: 00 (Standard factory base configuration)
- Magnet Material: High-energy Neodymium-Iron-Boron (NdFeB) permanent magnets
- Insulation Class: Class H (180 °C rated thermal insulation)
- Ingress Protection: IP65 sealed housing construction (when shaft seal is properly lubricated)
- Electrical Connections: Military-style circular bayonet/threaded connectors
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing surplus or legacy brushless servo hardware requires thorough mechanical and electromechanical verification to guarantee smooth torque delivery and accurate feedback alignment.
Inbound Verification & Traceability
- Paperwork Audit: Validation of serial numbers, winding codes, and model suffix codes against OEM manufacture archives to verify winding specs and feedback configuration.
- Physical Inspection: Comprehensive examination of front mounting flanges, keyways, shaft runout tolerances, housing paint/seal integrity, and circular connector pin condition.
Live Bench Simulation & Diagnostics
- Winding Integrity & Megger Testing: Conducting phase-to-phase and phase-to-ground insulation resistance testing at 1,000 V DC using a calibrated Megohmmeter to confirm zero winding leakage.
- Resolver Phase Alignment Check: Checking resolver transformation ratio, signal balance, and electrical zero phase angle on an oscilloscope while rotating the rotor to ensure exact alignment with motor back-EMF waveform.
- Drive Back-EMF & Run Test: Coupling the motor to a calibrated Pacific Scientific / Kollmorgen servo amplifier to execute dynamic velocity loops, acceleration profiles, and high-speed directional changes while monitoring drive current draw and thermal rise.
- 24-Hour Stress Run: Motor undergoes continuous load cycling on an automated test rig to verify bearing noise floor, temperature stabilization, and feedback tracking accuracy.
Final Prep
- Shaft & Connector Protection: Installing protective caps on feedback/power connectors and applying rust-inhibitor film to the exposed drive shaft.
- ESD & Shock Packaging: Suspended in custom high-density foam packaging before double-boxed air freight shipping.
The Field Engineer’s Pitfall Guide
- ❗ Resolver Zero Alignment Distortion: Never loosen or rotate the rear resolver endbell housing screws when installing or inspecting the motor. The internal resolver is factory-aligned to the rotor’s magnetic poles. Shifting the resolver alignment manually will destroy drive commutation alignment, causing the drive to trigger over-current faults or runaway motor conditions.
- ❗ Over-Tensioning Mechanical Belts: Applying excess radial load to the drive shaft via over-tightened timing belts or gear pulleys can cause premature front bearing failure or shaft snapping. Always verify radial and axial load limits against OEM mechanical ratings before tensioning.
- ❗ Power Connector Wiring Mistakes: Reversing motor power phases (U, V, W) on the circular main power connector will cause the motor to run backward relative to resolver feedback, causing immediate servo amplifier runaway or instantly triggering feedback loss errors.
Intent-Driven FAQ
Will swapping out an old R43HCNA-R2-NS-VS-00 require re-tuning my servo drive parameters?
No. If the replacement motor is an exact model match (matching winding code, frame size, and resolver suffix), the motor electrical constants (Ke, Kt, winding resistance) remain identical. The servo drive will control the motor with your original parameter set.
Can this motor be used with modern non-Pacific Scientific drives?
Yes. The R43HCNA-R2-NS-VS-00 utilizes a standard AC brushless permanent magnet design paired with a standard brushless resolver. It is compatible with modern universal servo drives (such as Kollmorgen AKD, Parker, or Siemens) that support resolver feedback interfaces.
What maintenance is required for the shaft oil seal?
Inspect the shaft seal periodically for signs of dry friction or breakdown. Apply a thin layer of high-temperature grease around the seal contact area when installing couplings or gearboxes to preserve IP65 sealing performance.
How do I troubleshoot a motor over-temperature fault on this motor?
Check the thermistor/thermal switch pins on the feedback connector for continuity. If the thermal switch shows an open circuit when cold, the internal sensor is damaged. If it opens only during operation, evaluate mechanical binding, high ambient heat, or drive current over-saturation.
What warranty coverage comes with replacement units?
All verified Pacific Scientific R43HCNA-R2-NS-VS-00 motors include a standard 12-month full-replacement warranty covering winding insulation, resolver feedback accuracy, and mechanical bearing stability.
If you need help verifying connector pinouts, checking resolver alignment specifications, or matching drive cable assemblies for your R43HCNA-R2-NS-VS-00 motor, let me know your drive controller model and I can assist with the setup details.
