OKUMA ER-FC-2048D | OSP Absolute Encoder
Product Introduction
A CNC axis can have a perfectly healthy motor and amplifier yet still fail position control because the feedback device has lost its reference. That is where the OKUMA ER-FC-2048D fits. It is an absolute position encoder designed for Okuma motion systems, providing the controller with rotational position feedback used for closed-loop axis control. Available documentation identifies the unit as an OSP absolute encoder associated with BL-series motors.
The encoder is especially relevant to maintenance of older Okuma CNC equipment where the original feedback hardware is no longer readily supported. Current technical records describe the ER-FC-2048D as supporting up to 16-bit resolution, with single-turn and multi-turn operating configurations, while another technical source identifies serial data feedback and its use for axis speed and position feedback.

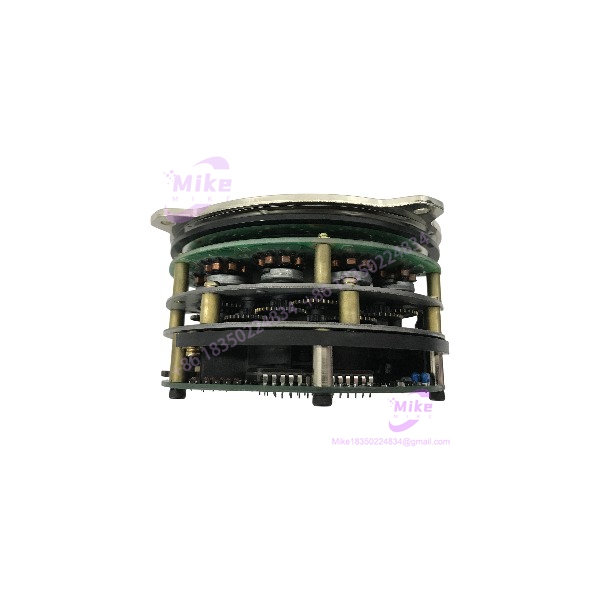

ER-FC-2048D
Key Technical Specifications
- Manufacturer: OKUMA
- Part Number: ER-FC-2048D
- Alternate Spelling: ERFC2048D
- Product Type: Absolute encoder / position encoder
- System: Okuma OSP CNC
- Primary Function: Motor shaft position feedback
- Motor Application: Okuma BL-series motors
- Encoder Type: Absolute
- Resolution: Up to 16-bit
- Turn Configuration: Single-turn or multi-turn, depending on system configuration
- Feedback Interface: Serial data output
- Feedback Information: Position and speed feedback
- Maximum Rotation Reference: Some technical listings specify up to 2,048 revolutions for the encoder system
- Clock Frequency: One current technical source lists 81.92 MHz
- Manufacturer Status: Discontinued / legacy
- Installation: Motor-mounted feedback assembly
The 2,048-revolution and 81.92 MHz figures come from secondary technical documentation and should be treated as system-specific rather than universal specifications for every ER-FC-2048D configuration.
Application Scenarios & Pain Points
Okuma CNC axis feedback replacement
When an OSP-controlled machine reports an encoder or position-feedback fault, replacing the feedback device can be preferable to disturbing an otherwise serviceable motor and drive assembly.
BL motor maintenance
ER-FC-2048D is documented specifically for use with Okuma BL motors. The encoder therefore belongs to the motor-feedback chain rather than the general PLC I/O layer.
Positioning accuracy problems
An aging encoder can produce intermittent feedback errors, loss-of-position alarms, abnormal axis behavior, or failure during machine initialization. A verified replacement provides a direct path for troubleshooting the feedback chain.
Legacy OSP CNC equipment
The model is identified as discontinued, making lifecycle management particularly relevant. Keeping a known-compatible encoder available can be much less disruptive than waiting for a machine-tool retrofit when an axis suddenly loses feedback.
Encoder-to-motor replacement work
Several current listings show ER-FC-2048D associated with different Okuma BL motor assemblies and different top-board identifiers. This reinforces the need to match the encoder against the actual motor and machine configuration rather than treating the part number as a universal mechanical substitute.
QA & Live Testing SOP
We treat the ER-FC-2048D as precision feedback hardware. Cosmetic inspection alone is not enough.
Step 1 — Part-number verification
We record the complete ER-FC-2048D marking, encoder label, serial information, and any secondary board identifier.
Step 2 — Mechanical inspection
The encoder housing, shaft/interface, mounting features, connector, and cable interface are inspected for damage or deformation. Mechanical fit is just as important as the electrical specification.
Step 3 — Electrical screening
Before connection to an Okuma control system, the unit is checked for obvious shorts, connector damage, contamination, and abnormal resistance conditions where the applicable service documentation provides valid test points.
Step 4 — Feedback test
Where a compatible Okuma test environment is available, the encoder is connected to the appropriate motor/control configuration and checked for valid feedback initialization, position response, and rotational feedback.
Step 5 — CNC verification
The final test should confirm that the OSP control recognizes the feedback device without generating encoder-related alarms and that commanded axis movement produces consistent position feedback.
Step 6 — ESD protection
After testing, the encoder is protected against electrostatic discharge and mechanical shock. Precision feedback electronics should not be shipped loose in ordinary packaging.
Field Engineer’s Pitfall Guide
❗ Do not substitute based only on the ER-FC-2048D number. Current records show ER-FC-2048D units carrying different top-board identifiers, including E4809-436-057-A and E4809-024-041. Those identifiers should be compared against the existing encoder before ordering.
❗ Do not confuse encoder resolution with mechanical compatibility. A replacement can have an appropriate resolution yet still be wrong for the motor, connector, feedback protocol, or OSP control configuration.
❗ Do not apply arbitrary test power. Encoder electronics should be tested according to the applicable Okuma motor/control documentation. The base ER-FC-2048D designation alone should not be used to invent a supply-voltage specification.
Intent-Driven FAQ
Q: What is OKUMA ER-FC-2048D?
A: ER-FC-2048D is an Okuma absolute position encoder used for motor feedback in compatible OSP CNC systems and BL-series motor applications.
Q: Is ER-FC-2048D an incremental encoder?
A: No. Available technical references identify it as an absolute encoder. It provides absolute position information rather than functioning as a conventional incremental pulse encoder.
Q: What resolution does ER-FC-2048D provide?
A: Technical references identify the encoder as supporting up to 16-bit resolution. The exact effective configuration should be confirmed against the machine and encoder revision.
Q: What motors use ER-FC-2048D?
A: It is documented for use with Okuma BL-series motors. Exact motor compatibility should be checked against the machine’s original encoder and motor assembly.
Q: Is ER-FC-2048D discontinued?
A: Yes. Current industrial equipment references identify the ER-FC-2048D as a discontinued Okuma model, which explains its relevance as a legacy CNC maintenance spare.
Q: Can any ER-FC-2048D replace my existing encoder?
A: Not automatically. Check the motor model, encoder label, connector, mechanical interface, top-board identifier, and OSP CNC configuration before substitution.
Q: What is ERFC2048D?
A: ERFC2048D is an alternate written form of the ER-FC-2048D part number used in some industrial listings. Treat both designations as referring to the same base part only after matching the physical encoder identification.
