Moog D138-002-012 | System Command and Control Token

Description

Moog D138-002-012 | System Command and Control Token

Dynamic Product Introduction

Swapping specialized motion controllers on industrial production lines often introduces hidden roadblocks when the controller boots up into a restricted state because of an unrecognized hardware token variant. Honestly, the Moog D138-002-012 handles this configuration layer by acting as the specific hardware entitlement module required to unlock tailored system features and communication protocols on the MSC platform. This module ensures that network node IDs, software block access, and trajectory licensing match your machine configuration securely at the hardware level (—though verifying your exact software version string prior to swapping is essential). Compared to generic token types, utilizing the correct D138-002-012 variant prevents frustrating license fault codes and gets high-precision loops back online rapidly.

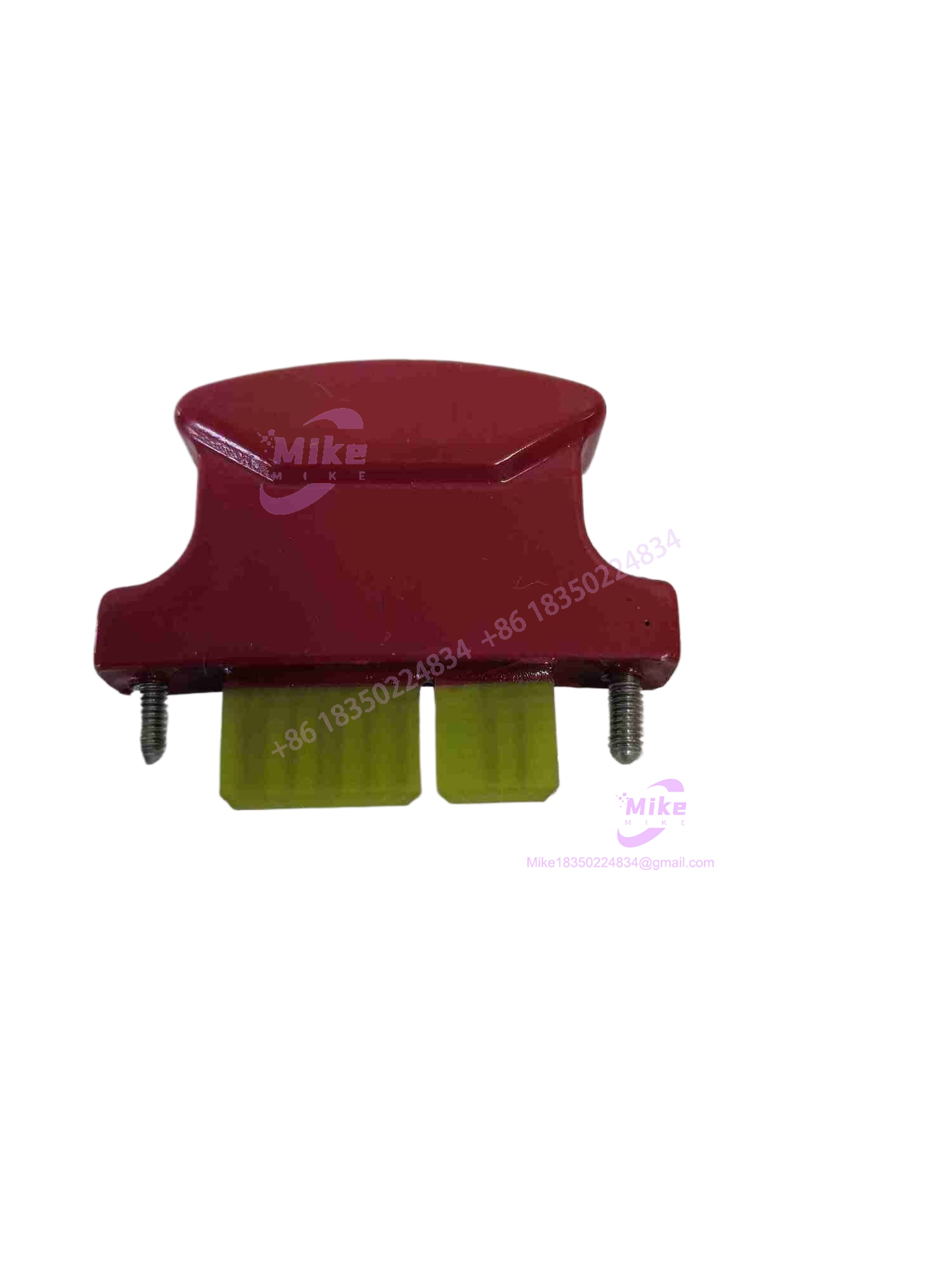

D138-002-012

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market hardware option tokens requires rigorous validation to ensure internal memory registers and connection pins remain completely uncorrupted. For every inbound Moog D138-002-012 unit, our audit team inspects the gold-plated contact fingers under high magnification and verifies component provenance against global OEM traceability logs.

Once cleared, the module is inserted into a live MSC controller test rack. Technicians execute a complete boot-sequence handshake test to verify that the controller reads the identifier correctly, unlocks the assigned software feature blocks, and maintains stable network communication parameters without throwing faults. The unit is then wrapped in static-dissipative material and sealed inside a moisture-barrier bag.

The Field Engineer’s Pitfall Guide

❗ Variant Mismatches: Assuming all D138-series option modules are functionally identical will cause the controller to reject the token or boot into a crippled state. Always cross-reference the exact suffix (-012) against your machine’s original bill of materials.

❗ Electrostatic Discharge (ESD) Vulnerability: Handling the exposed contact pins of the D138-002-012 without a grounded wrist strap can permanently damage the internal EEPROM, leaving the module unreadable during system boot.

❗ Hot-Plugging Failures: Pulling or inserting this hardware module while the controller rack is energized can corrupt internal registers or trigger severe backplane bus faults. Always kill main 24VDC power and let capacitors bleed down completely before servicing.

Intent-Driven FAQ

• Does the D138-002-012 store my actual motion program logic?

  No, the module only stores the hardware entitlement and specific operational parameters; your user application program resides in the controller’s main flash memory.

• Can I replace this physical module with a standard software license file?

  No, the MSC architecture relies on this specific physical hardware token during the initial boot handshake to validate features.

• What type of warranty covers surplus Moog license modules?

  Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment controller boot-test verification logs.

• What happens if this module is lost or damaged during maintenance?

  Without the correct variant installed, the controller will block advanced routines or refuse to initialize specific communication layers. Keeping a verified spare on hand prevents extended machine downtime.

• How do I verify if a replacement unit has passed QA testing?

  Look for serialized QA verification stickers, clean unmarred contact pins, and accompanying test validation documents inside the packaging.
