Monico CDL-MCLE-FWM | Caterpillar CDL Gateway Protocol Converter Core Category
Dynamic Product Introduction
Integrating legacy Caterpillar engines and generator control panels into a modern plant-wide SCADA network can quickly turn into a protocol translation nightmare. When standard plant control systems cannot natively read proprietary Cat Data Link (CDL) telemetry, operators are left blind to vital engine performance metrics and active fault codes.
Enter the Monico CDL-MCLE-FWM, a ruggedized protocol converter and data concentrator engineered specifically to bridge Caterpillar industrial engines with third-party automation systems. By pulling parameters natively across the CDL network at high speeds and translating them into protocols like Modbus, EtherNet/IP, or BACnet, this Monico hardware base eliminates the need for complex, custom-coded intermediary devices. Facilities deploying this gateway experience seamless data integration and full diagnostic visibility—though this strictly depends on precise port configuration and correct baud rate matching.

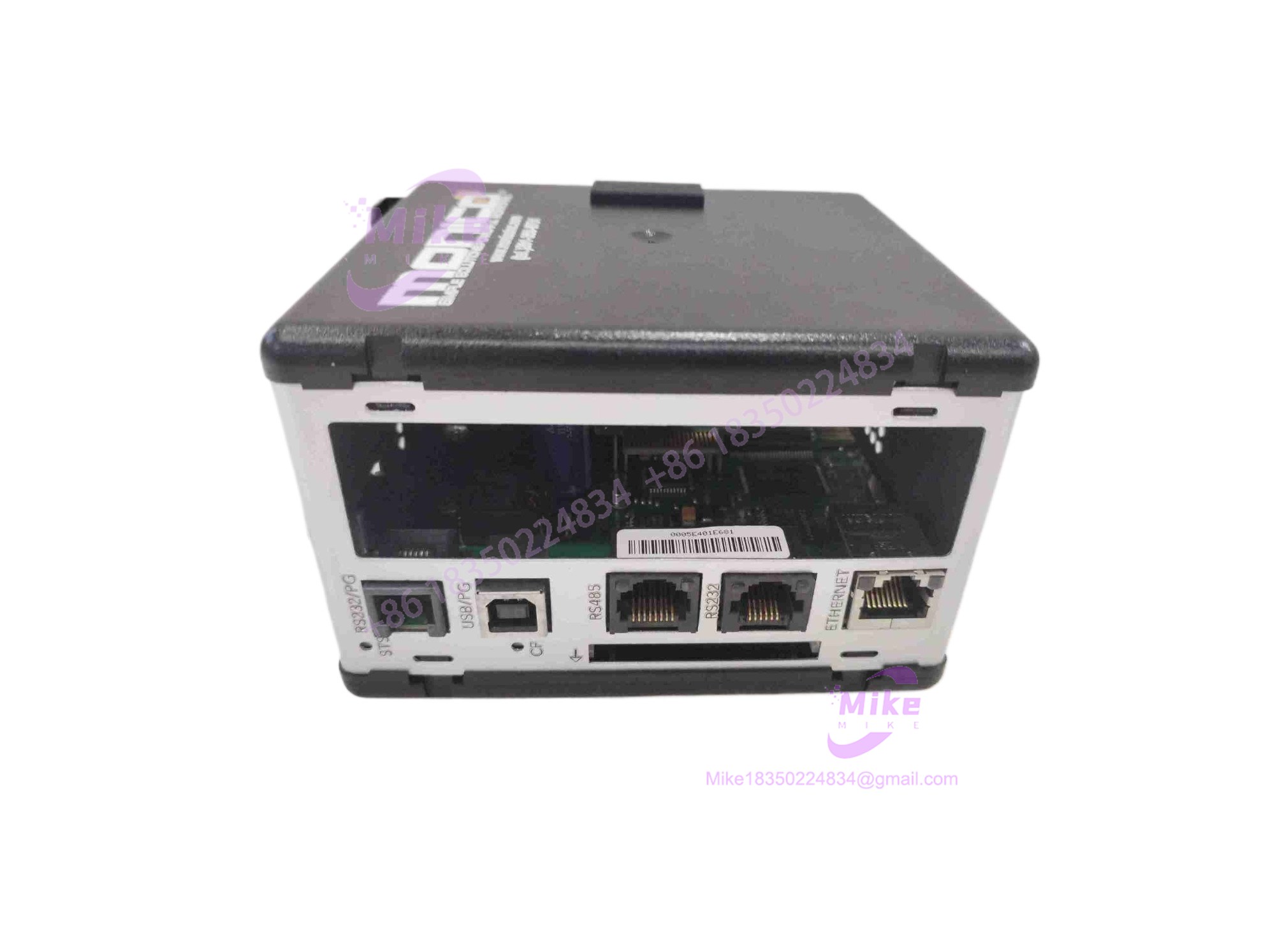

CDL-MCLE-FWM
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Series | Monico CDL Gateway |
| Primary Interface | Caterpillar Data Link (CDL) |
| Host Communication Ports | RS-232, RS-485 (2/4-wire), and Ethernet |
| Data Polling Rate | ~20 to 60 parameters per second |
| Pre-configured Registers | 400+ Standard Engine Parameters |
| Hazardous Rating | C-UL approved for Class I, Div 2, Groups A-D |
| Power Requirements | 24 VDC Nominal |
| Operating Temperature | 0^\circC to 50^\circC |
| Mounting Architecture | DIN Rail / Panel Mount Enclosure |
| Approximate Weight | ~0.48 kg (1.05 lbs) |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring specialized telemetry and protocol conversion hardware demands an uncompromising quality control pipeline. In critical generator and compression deployments, dropping an untested gateway onto a live data bus can corrupt site-wide monitoring streams.
- Inbound Verification: Every incoming shipment of the Monico CDL gateway undergoes meticulous customs documentation review alongside high-magnification holographic serial number checks to block gray-market counterfeits.
- Live Simulation: Technicians mount the gateway onto a dedicated Caterpillar simulation bench to verify CDL bus transceivers and check serial/Ethernet handshakes.
- Diagnostics: Engineers execute full-scale register polling tests across all pre-configured parameters, verify multi-protocol packet translation accuracy using diagnostic software, and run a 24-hour thermal heat run to flush out infant mortality defects.
- Final Prep: Once cleared, the unit is logged by firmware revision level, packed in anti-static shielding, and vacuum-sealed for storage.
The Field Engineer’s Pitfall Guide
❗ CDL Polarity Reversals: Swapping the positive and negative leads of the 2-wire Caterpillar Data Link during field hookup will instantly disrupt communication, causing the gateway to drop all engine parameter updates. Always verify loop polarity before powering the unit.
❗ Baud Rate & Address Mismatches: Failing to match the communication baud rate and node address settings between the Monico gateway and the plant SCADA host will result in silent timeout errors on the network bus.
❗ Unshielded Cable Run Vulnerabilities: Routing serial or CDL communication lines parallel to high-voltage motor power cables without proper shielding introduces severe electromagnetic interference (EMI), corrupting data packets.
Intent-Driven Field FAQ
- Will I lose my device configuration if I replace a faulty Monico gateway unit?
Configuration profiles and register maps can be backed up using Monico’s configuration utility software. Uploading the saved profile to a replacement unit restores system functionality immediately.
- Does the gateway require custom programming to interface with CAT engines?
No. The Monico CDL Gateway arrives pre-configured with over 400 standard engine and generator parameters mapped out of the box, requiring little to no custom code for basic integration.
- Can this unit pipe data into standard plant SCADA or PLC platforms?
Yes, it acts as a versatile protocol converter, translating native CAT data into widely accepted industrial protocols such as Modbus TCP/RTU, EtherNet/IP, and BACnet.
- What tools are required to verify gateway health locally?
A standard USB cable, a 24 VDC power supply, and Monico’s configuration software running on a field laptop are necessary for checking live data registers and port statuses.
- Are factory-sealed units supplied with updated firmware?
Surprise surplus inventory often ships with baseline factory firmware. Always cross-check the device build level and update gateway firmware against your specific CAT engine control module (ADEM) revision before final commissioning.
