MKS 683B-24883 | Exhaust Throttle Valve Controller

Description

MKS 683B-24883 | Exhaust Throttle Valve Controller

Dynamic Product Introduction

Pressure fluctuations inside semiconductor etch, CVD, or ALD chambers directly cause film thickness non-uniformities and particle generation. When downstream exhaust control sluggishly responds to gas mass-flow transitions, maintaining stable millitorr-level process pressure becomes impossible. The MKS 683B-24883 exhaust throttle valve controller delivers precise micro-stepping driver outputs to motor-driven throttle valves, stabilizing chamber pressure within milliseconds of gas delivery changes.

Upgrading or replacing fault-prone exhaust control boards with the 683B-24883 brings digital control accuracy and noise suppression to critical vacuum exhaust lines. By directly processing analog signals from high-precision MKS Baratron® sensors, the unit calculates error vectors in real time to hold tight pressure tolerances. For semiconductor fabs and equipment refurbishers minimizing tool downtime, stocking a bench-verified 683B-24883 controller ensures seamless drop-in restoration without requiring tool rack rewiring.

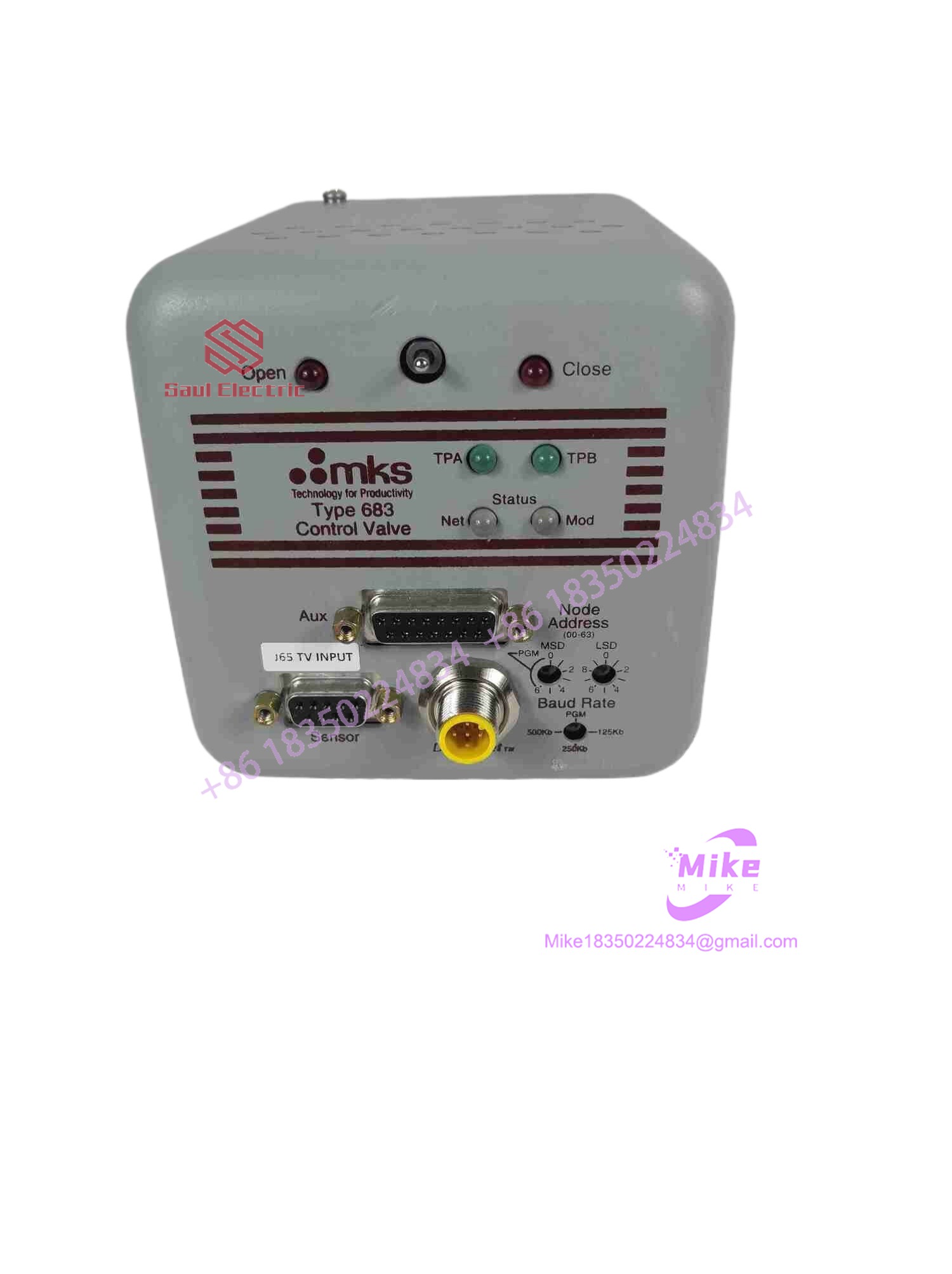

683B-24883

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring specialized MKS vacuum control hardware requires thorough bench testing to eliminate pressure hunting and unexpected tool safety trips upon installation:

Inbound Verification & Physical Audit

• Traceability Review: Verification of model suffix codes (-24883 custom OEM variant), serial tags, and internal PCB revision levels against OEM specifications.
• Component Inspection: High-magnification optical audit of motor driver transistors, power capacitors, display LEDs, and multi-pin connectors for thermal fatigue or mechanical strain.

Live Bench Simulation

• Power & Sensor Calibration: The 683B-24883 is powered on a test bench using a regulated multi-rail supply and wired to calibrated 0–10V signal generators simulating Baratron® outputs.
• Motor Drive Handshake: Connected to a physical MKS motor-driven throttle valve to verify limit-switch detection, smooth micro-stepping, and zero-position homing routines.

Diagnostic & Closed-Loop Testing

• PID Pressure Response Audit: Driving rapid step-response routines to test closed-loop stability, overshoot suppression, and position repeatability.
• 24-Hour Thermal Aging Run: Operating the controller under continuous valve cycling in a 40°C ambient test chamber to catch latent semiconductor breakdown prior to shipping.

Final Prep & Export Packaging

• Factory Reset & Parameter Logging: Clearing test calibration profiles and documenting baseline parameters on the inspection report.
• ESD Safe Sealing: Wrapped in static-shielding film with active desiccant and secured inside custom-molded high-density foam crates for global air shipment.

The Field Engineer’s Pitfall Guide

❗ Mismatched OEM Configuration (-24883 Suffix Blindness)

The -24883 suffix denotes a specific OEM hardware configuration, which often includes non-standard connector pinouts, customized serial baud rates, or specific default logic states required by a particular tool manufacturer (e.g., Applied Materials, Lam Research, or TEL). Attempting to replace a -24883 with a standard generic 683B or a different suffix code can result in serial communication timeouts or improper valve pin actuation.

(In actual fab service calls, I’ve seen tool technicians spend hours troubleshooting serial bus faults simply because they installed a standard off-the-shelf 683B instead of the required -24883 OEM variant).

❗ Forgetting to Perform a Throttle Valve Zero / Open Learn Cycle

When installing a replacement 683B-24883 controller, you must execute the automated valve calibration routine. Skipping this step can cause the controller to drive the throttle valve past its physical stops, stripping drive gears or triggering motor stall alarms.

❗ Hot-Plugging the Valve Motor Harness

Disconnecting or connecting the multi-pin valve drive cable while the 683B-24883 logic power is energized can arc connector pins and blow the internal power bridge transistors. Always turn off main logic power before servicing valve interface wiring.

Intent-Driven FAQ

What does the “-24883” suffix mean in the model number?

In MKS Instruments nomenclature, five-digit suffixes following the base part number (like 683B) designate specific OEM custom builds. These typically specify custom firmware parameters, specialized connector pinouts, or modified communication handshakes for specific semiconductor processing equipment.

Will swapping this controller erase my tool’s stored PID tuning constants?

Yes. PID control parameters, setpoint ramp rates, and sensor scale factors are stored in the local memory of the 683B-24883. You should record the PID values from the old controller or your tool setup sheet and program them into the replacement unit before running active process gases.

How do I clear a “Valve Stall” error on the display?

Check for process byproduct build-up or mechanical binding inside the throttle valve body. If the valve moves smoothly by hand while unpowered, check the motor cable continuity and run the automatic valve calibration sequence from the controller setup menu.

Can I run the 683B-24883 in manual position mode for maintenance testing?

Yes. The controller features a manual override mode that allows you to command the valve open, closed, or to a specific position percentage directly via front-panel controls or serial commands, bypassing the sensor feedback loop.

What warranty is provided with certified surplus MKS controllers?

All fully tested surplus and replacement MKS 683B-24883 controllers include a standard 12-month replacement warranty covering power supply performance, motor driver outputs, and signal conversion accuracy under standard operating conditions.
