Metso D200136L | Industrial Power Supply Core Category

Dynamic Product Introduction

Replacing power supply hardware in heavy industrial automation racks often creates bottlenecks when replacement modules fail to meet rigorous electrical regulation standards. Honestly, the Metso D200136L (commonly associated with the ADC5483 series) solves this integration hurdle by delivering clean, high-capacity DC power tailored specifically for Metso control architectures. This power unit maintains steady output rails under heavy load transients without dropping line voltage (—though verifying your exact input distribution wiring prior to energizing is essential). Compared to generic commercial power supplies, the Metso D200136L ensures seamless backplane compatibility, minimizing downtime and protecting delicate logic cards during grid fluctuations.

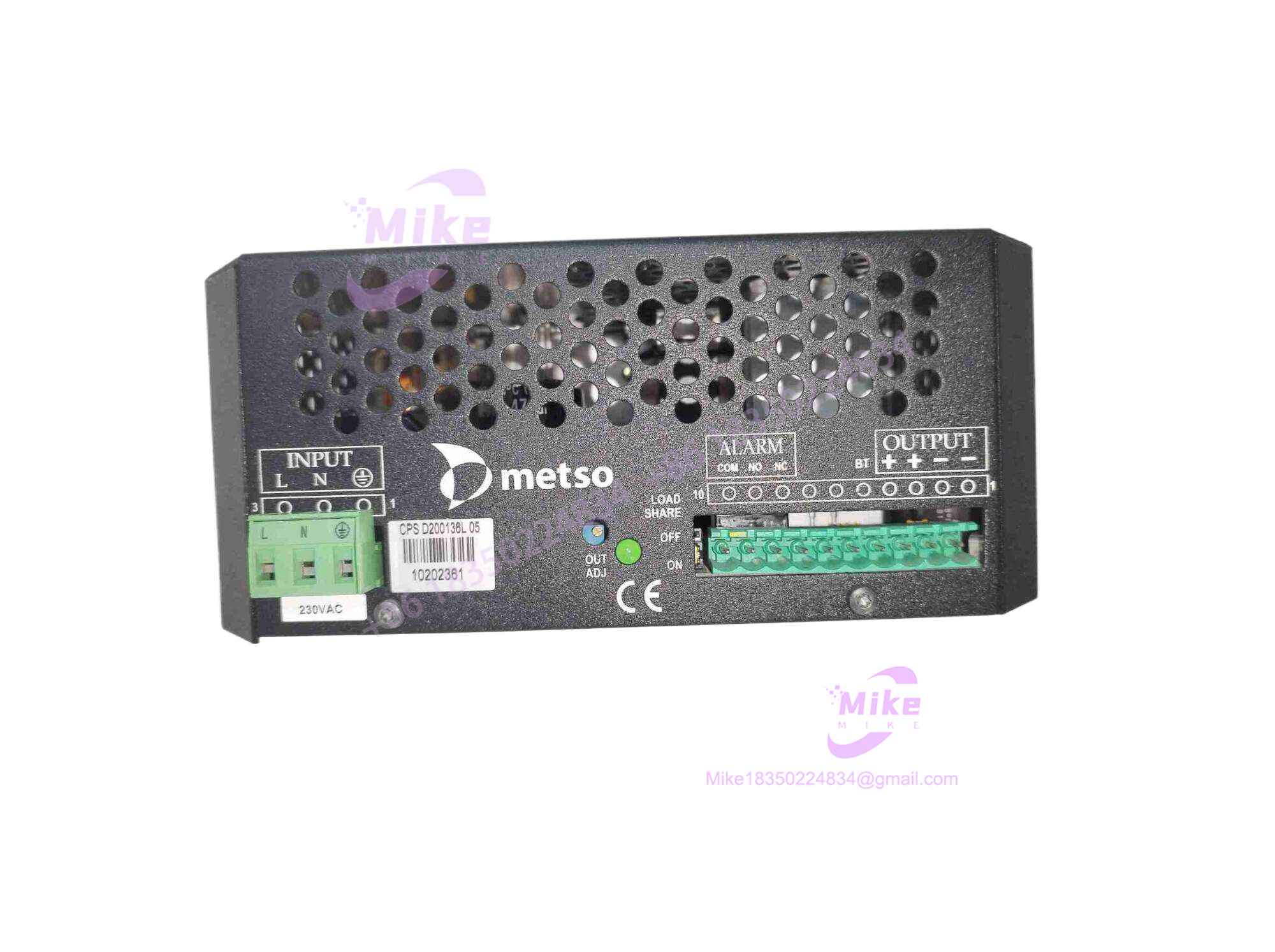

D200136L

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring secondary-market heavy industrial power supplies requires meticulous testing of internal filter capacitors, switching MOSFETs, and rectification stages to prevent unexpected voltage collapse. For every inbound Metso D200136L unit, our quality team records serial numbers against global traceability ledgers and inspects screw terminal blocks for thread integrity or oxidation.

Once cleared, the unit is mounted onto a specialized test rig connected to an electronic load bank. Technicians inject variable AC line voltages, step up DC loads on the 28VDC output rail to maximum rated capacity, monitor ripple voltage using an oscilloscope, and execute a 24-hour thermal burn-in cycle. The unit is then cleaned, fitted with fresh desiccant, and sealed inside an anti-static moisture-barrier bag.

The Field Engineer’s Pitfall Guide

❗ AC Input Voltage Range Jumper Mismatch: Forgetting to verify or set the internal 115V/230V input voltage selector switch before powering up can instantly destroy the primary bridge rectifier. Always check jumper settings against plant distribution levels.

❗ Thermal Clearance Restrictions: Mounting the D200136L in tightly packed enclosures without allowing adequate vertical convection airflow will trap heat and trigger premature thermal foldback or shutdown during peak ambient cycles.

❗ Inadequate Earth Grounding: Failing to secure a low-impedance safety earth ground to the chassis stud introduces electrical noise onto the DC rails, resulting in sporadic controller resets.

Intent-Driven FAQ

• Will replacing the Metso D200136L power supply affect my system’s configuration memory? No, the power supply module is strictly responsible for power conversion; control logic and application parameters reside in non-volatile controller memory.
• Is the cross-compatible with older Metso ADC series revisions? Compatibility depends on exact chassis harness wiring and output current demands; always cross-reference your full part assembly string (such as ADC5483-) with your original parts manual.
• What type of warranty covers surplus Metso power supplies? Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment load bank and ripple test logs.
• Can I repair internal component faults on this unit myself? Component-level repair is strongly discouraged due to high-voltage energy storage in input capacitors and specialized calibration; always rely on certified service centers.
• How do I verify if a replacement unit has been bench-tested? Look for serialized QA verification stickers, clean unmarred screw terminal blocks, and accompanying load test reports included in the packaging.
