Leuze DDLS 200/200.2-60 | Optical Data Transmission Core Category

Description

Leuze DDLS 200/200.2-60 | Optical Data Transmission Core Category

Dynamic Product Introduction

Replacing optical data transmission units in automated material handling networks requires exact protocol matching to prevent fieldbus timeout faults and communication drops. Honestly, the Leuze DDLS 200/200.2-60 solves this challenge directly by delivering native Profibus-DP optical communication engineered specifically to replace physical trailing cables between moving stacker cranes and stationary PLCs. This unit handles high-speed fieldbus traffic reliably over long spans without signal corruption (—though verifying your exact transmission baud rate, optical channel configuration, and bus termination resistors beforehand is vital). Compared to standard cabling solutions, the Leuze DDLS 200 preserves system bus timing integrity and eliminates mechanical cable fatigue, preventing costly logistical downtime.

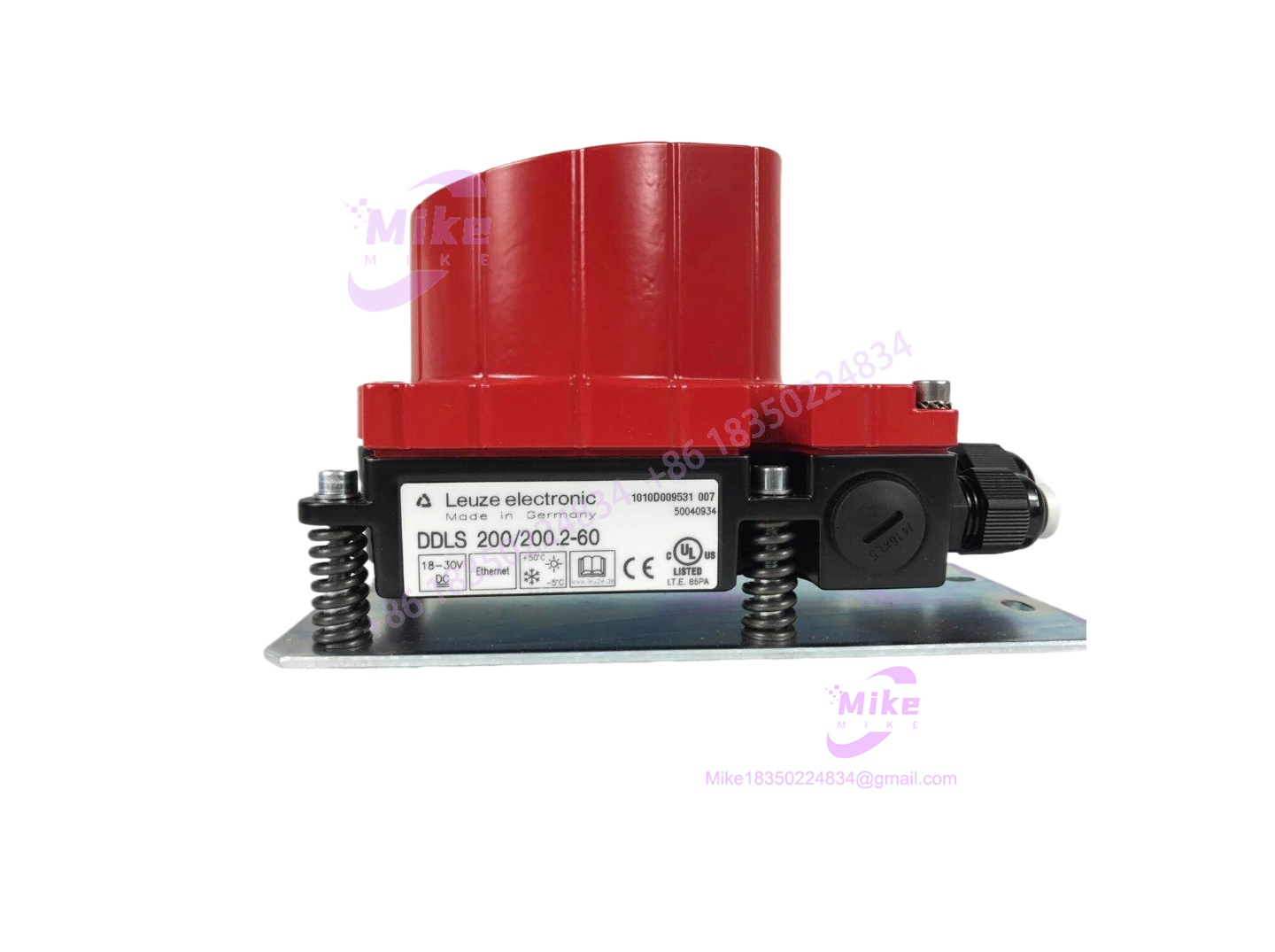

DDLS 200/200.2-60

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market optical fieldbus transceivers requires rigid electronic and optical verification to ensure internal laser/LED diodes, optical lenses, and RS-485 transceiver chips haven’t suffered from degradation or electrical stress. For every inbound Leuze DDLS 200/200.2-60 unit, our audit team logs serial numbers against global OEM traceability ledgers and inspects optical panes, terminal glands, and metal housing seals for scratches, moisture ingress, or mechanical wear.

Once cleared, the unit is mounted onto an active Profibus optical test bench facing its paired counterpart. Technicians verify stable link establishment, test packet transmission integrity under simulated bus traffic loads, monitor signal attenuation levels via the onboard bar-graph display, and run a 24-hour thermal burn-in cycle. The unit is then cleaned, fitted with protective lens caps, and sealed inside an anti-static moisture-barrier bag.

The Field Engineer’s Pitfall Guide

❗ Hot-Wiring Power Surges: Connecting or disconnecting terminal power lines while the 24VDC supply is energized can cause electrical transients that damage sensitive internal RS-485 communication chips. Always drop local power before servicing.

❗ Profibus Termination Omissions: Failing to properly terminate the RS-485 bus lines at the physical connection points on either end of the optical link can cause severe signal reflections and node dropouts. Always verify DIP switch or external resistor termination settings.

❗ Optical Misalignment Drift: Mounting the DDLS unit on a flexible or vibrating structural mast without rigid backing can cause the narrow 1° light beam to drift out of alignment, resulting in intermittent fieldbus timeouts.

Intent-Driven FAQ

• Does the Leuze DDLS 200/200.2-60 require special bus configuration software?

  No, the unit functions as a transparent optical link for Profibus-DP protocols, passing telegrams directly without requiring node address configuration within the device itself.

• What does the “-60” suffix designate in this model code?

  The suffix denotes the specific electrical interface and operational profile configuration—in this case, tailored for Profibus-DP / industrial fieldbus transmission architectures.

• What type of warranty covers surplus Leuze optical units?

  Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment optical alignment and bus-packet integrity test logs.

• Can I repair scratched optical lenses or internal board components myself?

  Component-level repair or optical lens replacement is strongly discouraged due to specialized internal alignment and IP65 sealing requirements; always rely on certified replacements.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA verification stickers, clean unmarred optical panes, and accompanying test reports included in the packaging.
