Lenze E84AHWMC1534V-V003 | 8400 TopLine Servo Inverter, In Stock
Architect’s Product Breakdown

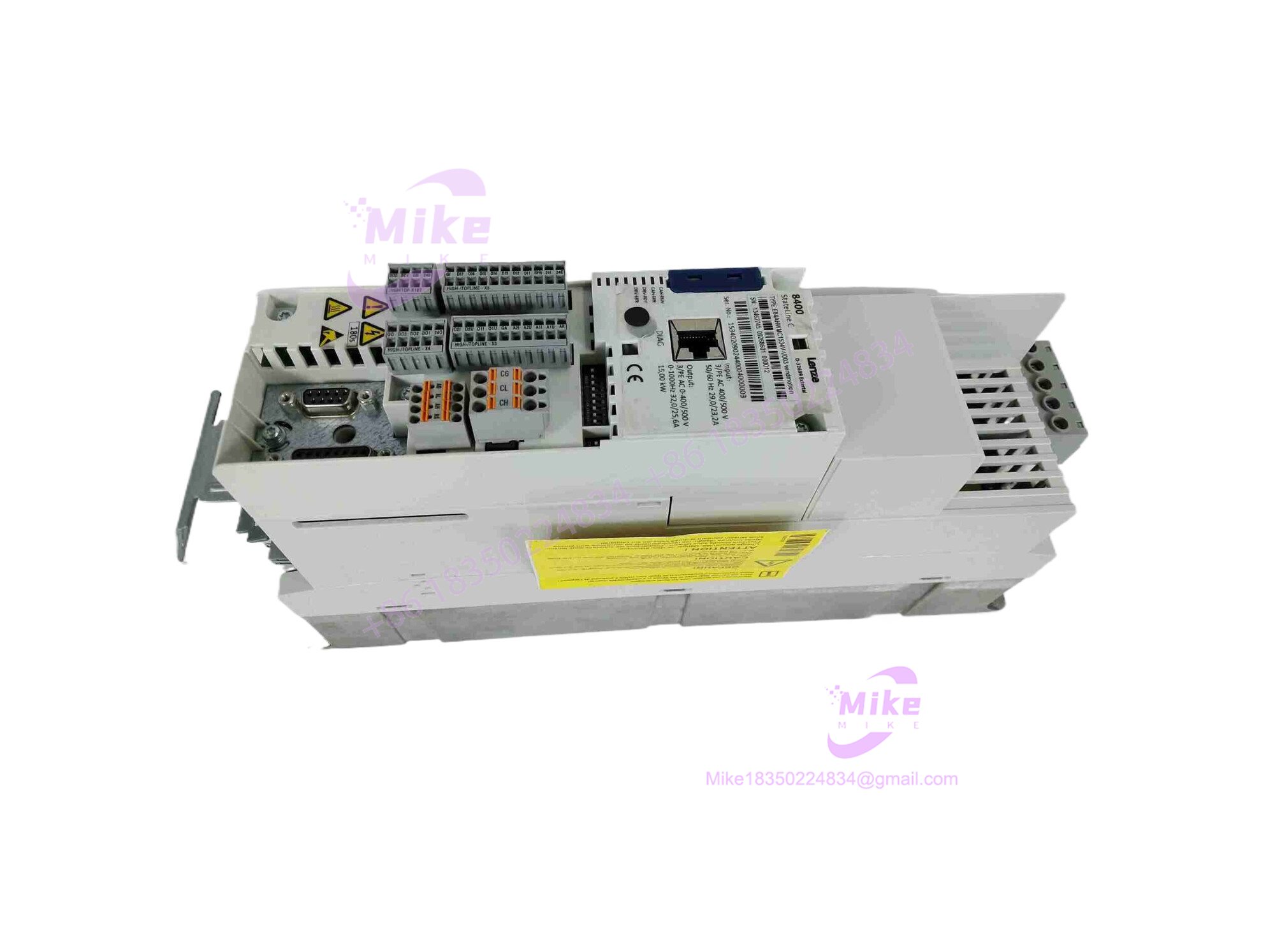

The Lenze E84AHWMC1534V-V003 is an advanced frequency inverter belonging to the high-performance 8400 TopLine (E84A) series. Engineered for complex, demanding automation environments—such as high-speed packaging lines, robotic handling systems, printing presses, and continuous web handling—this drive provides precision servo control capabilities alongside standard frequency conversion. It supports multi-axis synchronization via an integrated internal axis bus and accommodates various feedback options (such as resolver, TTL incremental, and SinCos absolute encoders) through its multi-encoder port.
Because the 8400 TopLine series represents a sophisticated hardware architecture, identifying and matching the exact part number string is vital during replacements. Swapping a unit requires transferring or backing up parameter configurations, verifying fieldbus communication module seating (such as PROFINET, EtherCAT, or CANopen), and ensuring proper connection of the 24V DC external control power supply.
E84AHWMC1534V-V003
Key Technical Specifications
| Parameter | Specification |
| Series | Lenze 8400 TopLine (E84A) Motion Control Family |
| Model / Part Number | E84AHWMC1534V-V003 |
| Power Rating | 15.0 kW (20 HP) continuous output capacity |
| Mains Voltage Input | 3 × 400 / 500 V AC, 50/60 Hz (permissible range 380–480 V ±15%) |
| Rated Output Current | 32.0 A (at 400 V) / 25.6 A (at 500 V) |
| Control Architecture | Closed-loop servo control, vector control, and V/f control profiles |
| Feedback Interfaces | Multi-encoder input (Resolver, TTL, SinCos, SSI) via 9-pin/15-pin Sub-D connectors |
| Communication | Onboard CANopen + optional plug-in modules (PROFINET, EtherCAT, PROFIBUS) |
| Enclosure Rating | IP20 (designed for internal ventilated control cabinet mounting) |
| Dimensions & Weight | Approx. 140 mm × 325 mm × 199 mm (W × H × D) / ~6.84 kg |
Field Engineer’s Pitfall Guide
- WARNING: DC Bus Capacitance Discharge. Never touch power terminals or attempt wiring immediately after removing mains power; high-voltage energy stored in the internal DC bus capacitors requires time to bleed down safely.
- WARNING: Missing 24V DC Control Power. The E84A TopLine drive requires an independent, stable 24V DC external control supply to power its logic boards and communication interfaces before mains power is applied.
- WARNING: Unmatched Feedback Mapping. Swapping a drive without verifying the encoder type configuration (resolver vs. multi-encoder card settings) will trigger immediate initialization or overspeed fault trips.
- Field Anecdote: I remember a high-speed production line experiencing persistent synchronization timeouts because a replacement 8400 TopLine drive was installed with default factory communication parameters instead of updating the node ID and baud rate to match the machine’s active CAN/EtherCAT network.
QA & Testing SOP
- Visual & Origin Verification: Inspect the plastic housing, cooling fins, and terminal block connectors for thermal stress, mechanical cracks, and verify original Lenze factory nameplate data.
- Live Test Bench Environment: Mount the drive onto a vertical test fixture inside an IP20-compliant enclosure, applying a regulated 24V DC control supply and isolated 3-phase AC input.
- Diagnostics & Dynamic Testing: Verify communication handshakes across onboard and plug-in fieldbus slots, test brake chopper switching behavior, and execute low-speed motor rotation sweeps to validate feedback tracking.
- Anti-Static & Secure Packaging: Enclose the unit in heavy industrial cushioning and anti-static wrapping to protect sensitive communication headers and terminal pins during transit.
Technical FAQ
Can the E84AHWMC1534V-V003 operate standard asynchronous motors and synchronous servo motors?
Yes. The 8400 TopLine series is engineered for universal motor control compatibility, supporting standard AC induction motors as well as high-dynamic synchronous servo motors.
Does this drive require an external braking resistor?
The unit features an integrated brake chopper transistor, but an appropriately sized external dynamic braking resistor must be connected to handle regenerative energy during rapid deceleration cycles.
How are parameter sets transferred during a drive swap?
Parameters can be saved and transferred using a Lenze memory module (diagnostic/parameter memory plug) or via Lenze engineering software (EASY Starter) connected through the diagnostic interface.
Is this specific model hot-swappable while energized?
No. Inserting or removing power cables, motor leads, or communication cards while the drive is powered on will cause severe electrical arcing and permanent internal circuit damage.
