Lam Research 853-049542-173 | Multi-Channel Thermal Control Node Quantified Spec
Dynamic Product Introduction
Thermal drift inside a high-vacuum etch chamber will completely ruin critical critical dimension (CD) uniformity across a wafer batch. When a legacy multi-zone heater controller loses its tuning grip, temperature fluctuations trigger immediate recipe aborts and heavy wafer scrap rates. The Lam Research 853-049542-173 24-channel temperature controller assembly resolves this by enforcing ultra-precise closed-loop thermal regulation across distributed chamber zones.
Unlike standard commercial PID units, this specialized PCBA is engineered to manage tight thermal loops while withstanding severe electromagnetic interference from nearby RF power delivery systems. Maintaining absolute temperature stability on older tool platforms requires exact hardware matching—making this control node essential for preventing costly line stoppages.

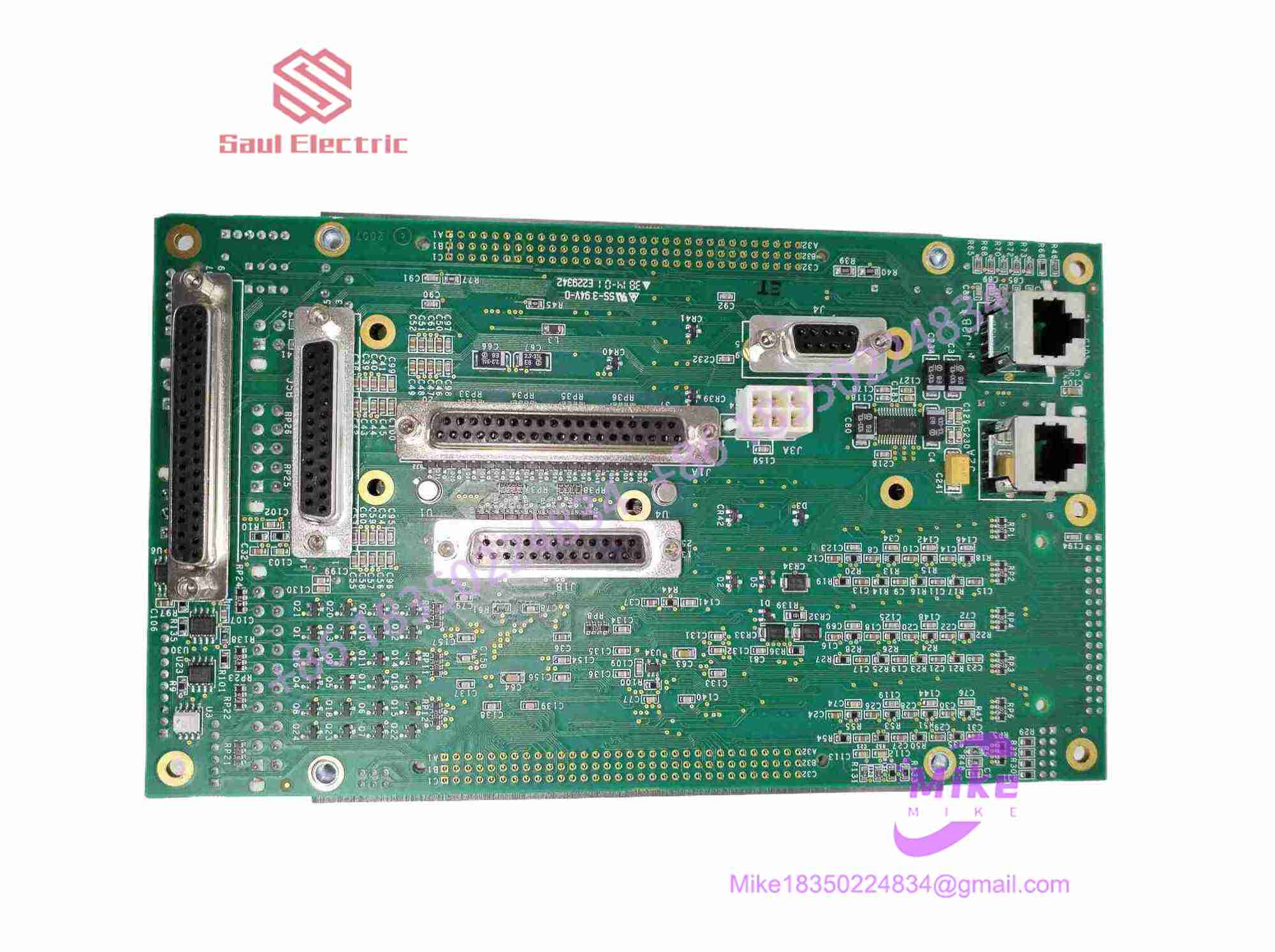

853-049542-173
Key Technical Specifications
| Parameter | Specification Detail |
| Manufacturer | Lam Research |
| Assembly Part Number | 853-049542-173 (Rev A) |
| Primary Architecture | 24-Channel Temperature Controller (TEMP CTLR ASSY) |
| Sensor Compatibility | Precision Thermocouples and RTD input conditioning |
| Control Topology | Multi-zone closed-loop PID processing |
| Form Factor | Proprietary Card-Cage Plug-In PCBA |
| Diagnostic Features | Onboard communication status and error code LED array |
| Operating Environment | Cleanroom tool enclosure (15°C to 30°C, non-condensing) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market thermal control hardware demands strict validation to ensure zero calibration drift or latent component degradation before installation. Our qualification workflow covers:
- Inbound Verification: Incoming circuit boards undergo microscopic optical checks to detect solder micro-fissures, trace wear, or thermal stress around power regulation and analog conversion circuits. OEM part numbers are authenticated against asset databases.
- Live Simulation: We mount the module onto a dedicated, fully powered Lam test bench fixture configured to emulate multi-zone thermal loads and backplane communication traffic.
- Diagnostics: Engineers execute rigorous multi-channel temperature simulation scripts, verifying input linearization, cold-junction compensation, and control output stability across all 24 zones simultaneously using calibrated multimeters and thermal calibrators. The board undergoes an accelerated 24-hour heat run.
- Final Prep: Once testing criteria are verified, firmware and calibration profiles are logged, and the unit is wrapped in dissipative antistatic packaging before vacuum-sealing inside a moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Ignoring Zone Mapping Assignments: Dropping a replacement 24-channel controller into a rack without verifying the software-to-hardware zone configuration can scramble heater mappings, causing severe thermal runaway on delicate chamber components.
❗ Hot-Plugging Backplane Risks: Never insert or remove this temperature control PCBA while the rack logic power is active. I’ve seen technicians instantly fry delicate analog input buffers because they skipped powering down the card cage.
❗ Thermocouple Ground Loop Seeding: Failing to maintain proper shielding ground connections on the incoming sensor harness will inject massive noise into the measurement channels, causing erratic temperature readouts and random interlock trips.
Intent-Driven FAQ
Can I hot-swap the 853-049542-173 module during tool maintenance?
No. Hot-insertion of this multi-channel analog and digital control board risks voltage transients across the backplane bus pins, which can corrupt active controller registers or damage sensitive internal ICs. Always power down the card cage.
Is the module shipped with pre-loaded firmware and tuning profiles?
Yes, units are supplied with baseline firmware installed. However, because thermal tuning parameters vary significantly by chamber application and recipe requirements, verify your system configuration profile prior to production.
What level of warranty is included with this refurbished temperature controller?
We back this component with a comprehensive one-year replacement warranty, covering material and operational defects under standard cleanroom working conditions.
How do I quickly diagnose if a thermal error is caused by this board or a failed heater element?
Observe the diagnostic LED array on the front edge of the PCBA. If the communication heartbeat is normal but a specific zone output fails to modulate, use a calibrated meter to verify input resistance and control output voltage directly at the terminal breakout before condemning the board.
