Lam Research 810-520659-001 | I/O Controller Interface PCBA Core Category
Dynamic Product Introduction
System-level communication drops inside legacy semiconductor processing equipment usually trace back to fatigued interface cards. When a distributed input-output node starts missing command packets, wafer handling sequences stall and overall tool throughput collapses. The Lam Research 810-520659-001 printed circuit board assembly resolves these bottlenecks by providing deterministic signal routing and robust line isolation.
Unlike commercial off-the-shelf data acquisition hardware, this PCBA is built specifically to withstand the electrical noise and thermal variations inherent in high-vacuum plasma processing environments. Restoring precise command execution on older tool platforms requires exact part matching—making this control node indispensable for avoiding extended fab downtime events.

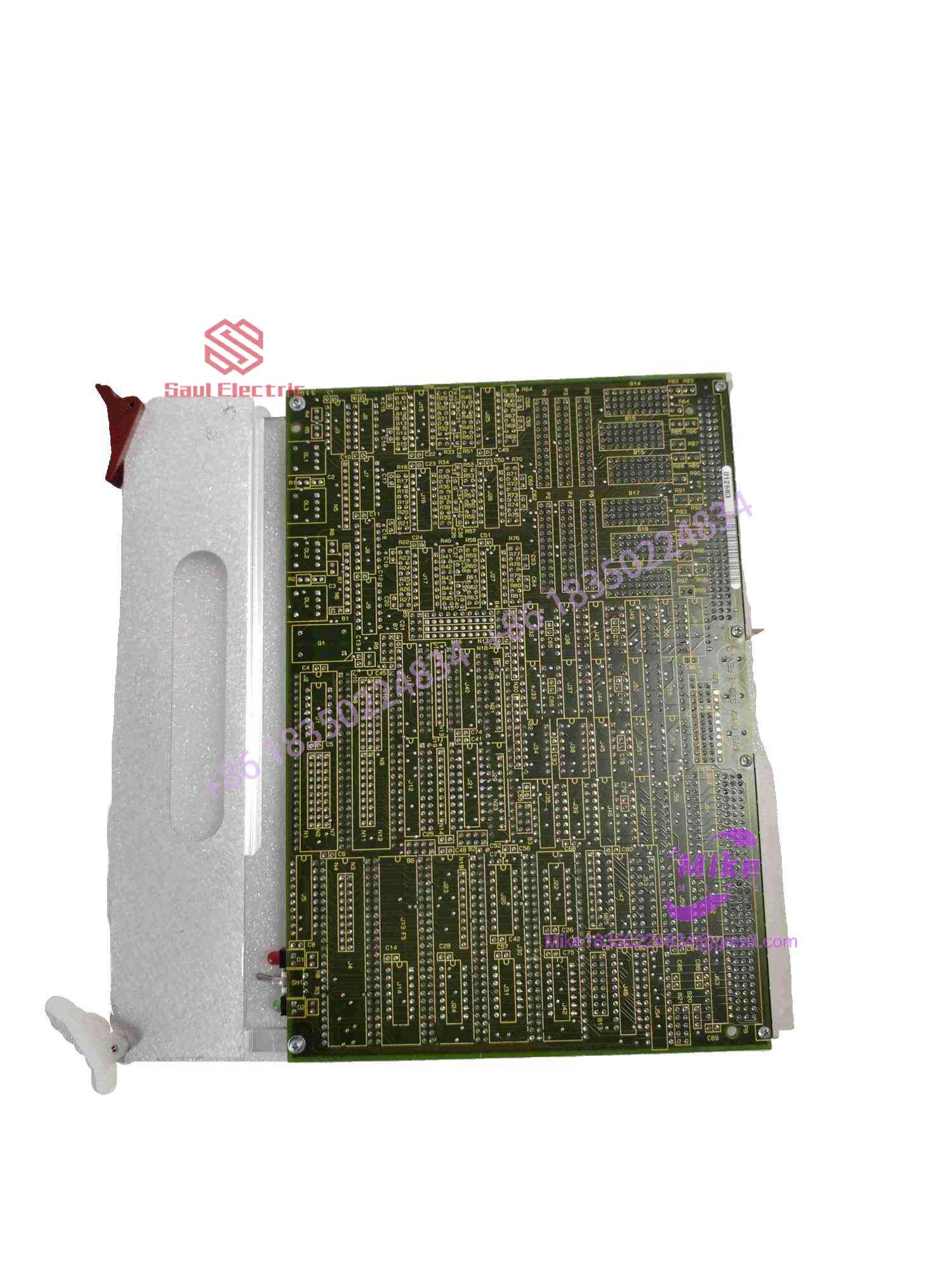

810-520659-001
Key Technical Specifications
| Parameter | Specification Detail |
| Manufacturer | Lam Research |
| Assembly Part Number | 810-520659-001 |
| Primary Architecture | Distributed I/O and System Communication Node |
| Input/Output Type | Opto-Isolated Digital Lines and Serial Bus Links |
| Form Factor | Proprietary Card-Cage Plug-In PCBA |
| Processing Core | Dedicated Onboard Microcontroller with Flash Firmware |
| Diagnostic Indicators | Multi-status LED array for power, communication, and error states |
| Operating Voltage | Standard Chassis DC Backplane Rails |
| Operating Environment | Cleanroom tool enclosure (15^\circ C to 30^\circ C, non-condensing) |
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing secondary-market semiconductor electronics demands rigorous validation protocols to ensure complete reliability before installation into a live tool rack. Our multi-stage qualification process covers:
- Inbound Verification: Every incoming circuit board undergoes high-magnification optical inspection to detect solder micro-fissures, trace wear, or component stress near power regulation circuits. Original OEM anti-counterfeit holograms and serial numbers are checked against master tracking databases.
- Live Simulation: We mount the module onto a dedicated, fully powered Lam test bench fixture designed to replicate active backplane communication loads.
- Diagnostics: Engineers execute rigorous software script cycling across all digital and communication channels simultaneously. Signal timing, packet integrity, and opto-isolator response thresholds are tracked using digital logic analyzers over an accelerated 24-hour heat run.
- Final Prep: Once testing criteria are met, the firmware state is logged, and the board is placed in a dissipative antistatic bag, then vacuum-sealed inside a moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Skipping Backplane Bus Address Verification: Installing a replacement node without verifying the hardware address jumpers or software configuration registers can trigger severe bus contention errors, locking up the master controller loop.
❗ Thermal Paste and Heatsink Neglect: Failing to properly seat thermal interfaces on high-dissipation power regulator components can cause localized overheating, resulting in premature microcontroller throttling or intermittent data corruption during long production runs.
❗ Neglecting ESD Protocols on the Rack: I’ve seen technicians plug replacement boards straight into live chassis racks without grounding straps, instantly destroying sensitive CMOS input buffers. Always drop rack power and discharge static potential before handling interface cards.
Intent-Driven FAQ
Can I hot-swap the 810-520659-001 module during active tool maintenance?
No. Hot-insertion of this digital routing board risks voltage transients across the backplane bus pins, which can corrupt active controller registers or damage sensitive onboard logic gates. Always power down the card cage.
Is the module shipped with pre-loaded firmware?
Yes, units are supplied with baseline firmware installed. However, depending on the specific chamber software version and recipe integration of your tool, you may need to update the configuration profile via the host system.
What level of warranty is included with this replacement board?
We back this component with a comprehensive one-year replacement warranty, covering material and operational defects under standard cleanroom working conditions.
How do I quickly diagnose if communication failure is caused by this board or the cabling?
Observe the onboard diagnostic LED array. If the power rail indicators are normal but the communication heartbeat LED remains dark or flashes error codes, check the physical line continuity before replacing the entire PCBA.
