Koyo D4-32TD2 | Discrete Output Module 32-Point
Dynamic Product Introduction
Expanding output capacity on legacy DirectLOGIC racks often forces a compromise when panel space is too tight for multiple low-density cards. Honestly, the Koyo D4-32TD2 solves this layout restriction by packing 32 high-density sourcing transistor outputs into a single slot of a DL405 backplane. This module drives high-speed cycling actuators reliably without introducing switching lag (—though checking your external power rail fusing is mandatory before energizing). Compared to older relay-based options, the Koyo D4-32TD2 eliminates mechanical wear components, ensuring silent, high-frequency operation across demanding batch processes.

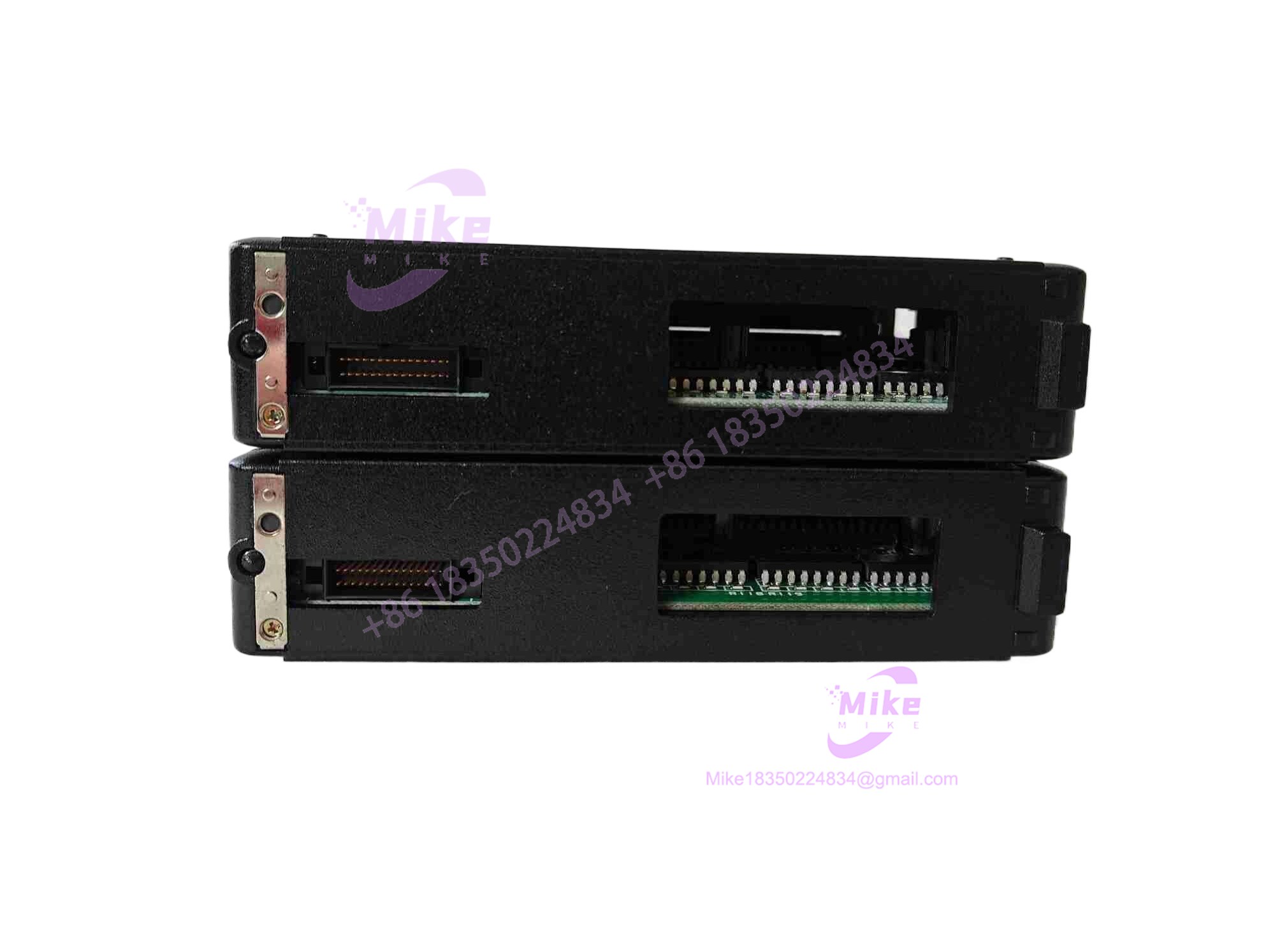

D4-32TD2
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | DirectLOGIC DL405 |
| Module Type | Discrete Transistor Output |
| Number of Outputs | 32 points, sourcing |
| Operating Voltage | 12 to 24 VDC |
| Output Current | 0.5A per point / 4A per common |
| Commons | 4 isolated commons (8 points each) |
| OFF-State Leakage | < 0.1 mA |
| Connector Type | Removable terminal block |
| Operating Temperature | 0°C to 60°C industrial standard |
| Backplane Power | 5VDC logic side power draw |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring surplus high-density I/O cards requires rigorous testing to ensure transistor output gates haven’t been compromised by field short circuits or inductive kickback. For every inbound Koyo D4-32TD2 unit, our audit team logs serial numbers against global traceability ledgers and inspects the removable connector pins for oxidation or bending.
Once cleared, the module is slid into an active DL405 test rack powered by a regulated bench supply. Technicians cycle all 32 output channels under active resistive loads, verify voltage drop across individual transistor gates, and run a 24-hour thermal soak test. The unit is then cleaned, fitted with fresh desiccant, and sealed inside an anti-static moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Inductive Kickback Failures: Switching inductive solenoids or relay coils without external flyback suppression diodes will instantly destroy the internal transistor output gates. I’ve seen technicians fry half a 32-point card on day one because they neglected snubber circuits on DC valves.
❗ Common Overload Tripping: Drawing more than the rated 4A limit across a single isolated common block will cause internal thermal fusing to drop the entire group of 8 outputs. Always distribute heavy loads evenly across all four commons.
❗ Mismatched Sinking/Sourcing Wiring: Pairing this sourcing output module with sinking input field devices without proper interposing circuitry will leave actuators dead on arrival. Always verify field device polarity against your cabinet schematics.
Intent-Driven FAQ
- Will I lose configuration data if I hot-swap the Koyo D4-32TD2?
No, I/O configuration is managed entirely by the CPU project file, allowing safe module replacement provided backplane power is powered down first.
- Is the terminal block removable for easy wiring maintenance?
Yes, the module features a convenient removable connector block that lets you swap out hardware without rewiring individual field conductors.
- What type of warranty covers surplus DL405 output modules?
Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment multi-channel load test reports.
- Can I use this module to drive AC-powered field devices?
No, the D4-32TD2 is strictly engineered for 12-24 VDC sourcing transistor output applications; use a relay output module for AC loads.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA verification stickers, unmarred terminal block screws, and accompanying test reports included in the packaging.
