Johnson Controls MS-NAE5510-02 | NAE55 Supervisory Controller, In Stock

Description

Johnson Controls MS-NAE5510-02 | NAE55 Supervisory Controller, In Stock

Architect’s Product Breakdown

The Johnson Controls MS-NAE5510-02 serves as an advanced network supervisory controller designed to integrate disparate heating, ventilation, and air conditioning systems into a unified management platform. Within the Metasys ecosystem, this network automation engine processes real-time data streams, handles historical trending databases, and executes control algorithms across lower-tier field controllers. It bridges enterprise-level management networks with critical plant floor equipment to maintain strict environmental parameters.

Deploying or swapping this hardware requires rigorous attention to software compatibility and network topologies. Because this model version often succeeds older revisions, verifying database archive versions via the configuration tool is mandatory before deployment. Panel integrators must also account for internal cabinet thermal loads and proper grounding to eliminate common-mode noise on serial communication lines, ensuring long-term operational stability.

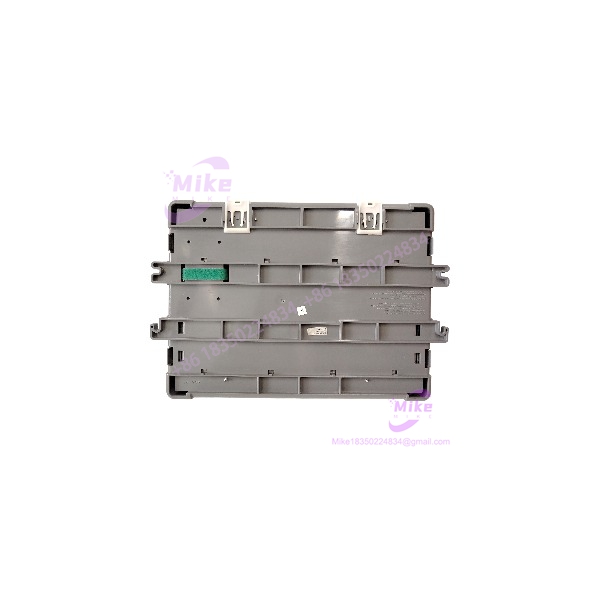

MS-NAE5510-02

Key Technical Specifications

Field Engineer’s Pitfall Guide

• WARNING: Archive Version Incompatibility. Never restore a database archive from a newer software release onto an older firmware baseline. I once spent an entire night troubleshooting a boot loop because the site file demanded a software patch that had not yet been applied to the replacement hardware.
• WARNING: Communication Bus Polarization. Ensure the RS-485 biasing jumpers are correctly configured if the unit sits at the end of an MS/TP trunk. Leaving termination floating will introduce electrical reflections that manifest as intermittent device dropouts across the head-end.
• WARNING: Power Transformer Sizing. Do not share a 24V AC transformer powering this network engine with inductive loads like heavy relay coils or motor starters. Voltage sags will trigger unexpected reboots and corrupt active trend logs.

QA & Testing SOP

• Visual & Origin Verification: Inspect the outer chassis for mechanical defects, verify OEM identification labels, and check connector pins for oxidation or bending.
• Power-Up Bench Test: Apply stable 24V power on an isolated test bench to confirm proper boot behavior, LED status sequences, and internal power supply regulation.
• Network Handshake Check: Ping the onboard Ethernet interfaces, test web server accessibility, and validate serial port communication using loopback verification tools.
• Memory & Storage Diagnostics: Execute internal diagnostic scripts to verify flash memory reliability and real-time clock retention.
• Packaging: Seal in anti-static shielding bags and pack with dense foam cushioning to prevent transit damage.

Technical FAQ

Can I hot-swap this network automation engine while the facility control loops are active?

No. Powering down the control enclosure is required before disconnecting terminal blocks or removing the hardware to prevent electrical arcing and backplane data corruption.

Does this device retain its configuration database after a complete power loss?

Yes. User databases and operational configurations are stored in non-volatile flash memory, while a healthy backup capacitor maintains the real-time clock.

Can this model communicate simultaneously across BACnet and legacy N2 protocols?

Yes. The built-in protocol flexibility allows it to supervise both modern BACnet equipment and older legacy field controllers concurrently across separate communication channels.

What software tool is required to commission or upload a database to this unit?

You must use the authorized Metasys System Configuration Tool (SCT) software suite matching your specific site release version to deploy operational databases.
