HMS Anybus AB7312-B | Serial to Modbus TCP Gateway
Dynamic Product Introduction
Bridging older serial instrumentation into an Ethernet-based plant architecture usually requires complex gateway programming and tedious register mapping. The HMS Anybus AB7312-B protocol converter eliminates this friction by acting as an intelligent translator between serial ASCII/Modbus lines and a high-speed Modbus TCP network.
Honestly, configuring advanced Anybus gateways demands careful attention to byte-swapping and register alignment—skip those settings, and your SCADA system will pull scrambled data from your field analyzers. This dual-port Ethernet variant simplifies daisy-chain topology across control cabinets, providing a reliable link when legacy serial sensors must feed modern automation software.

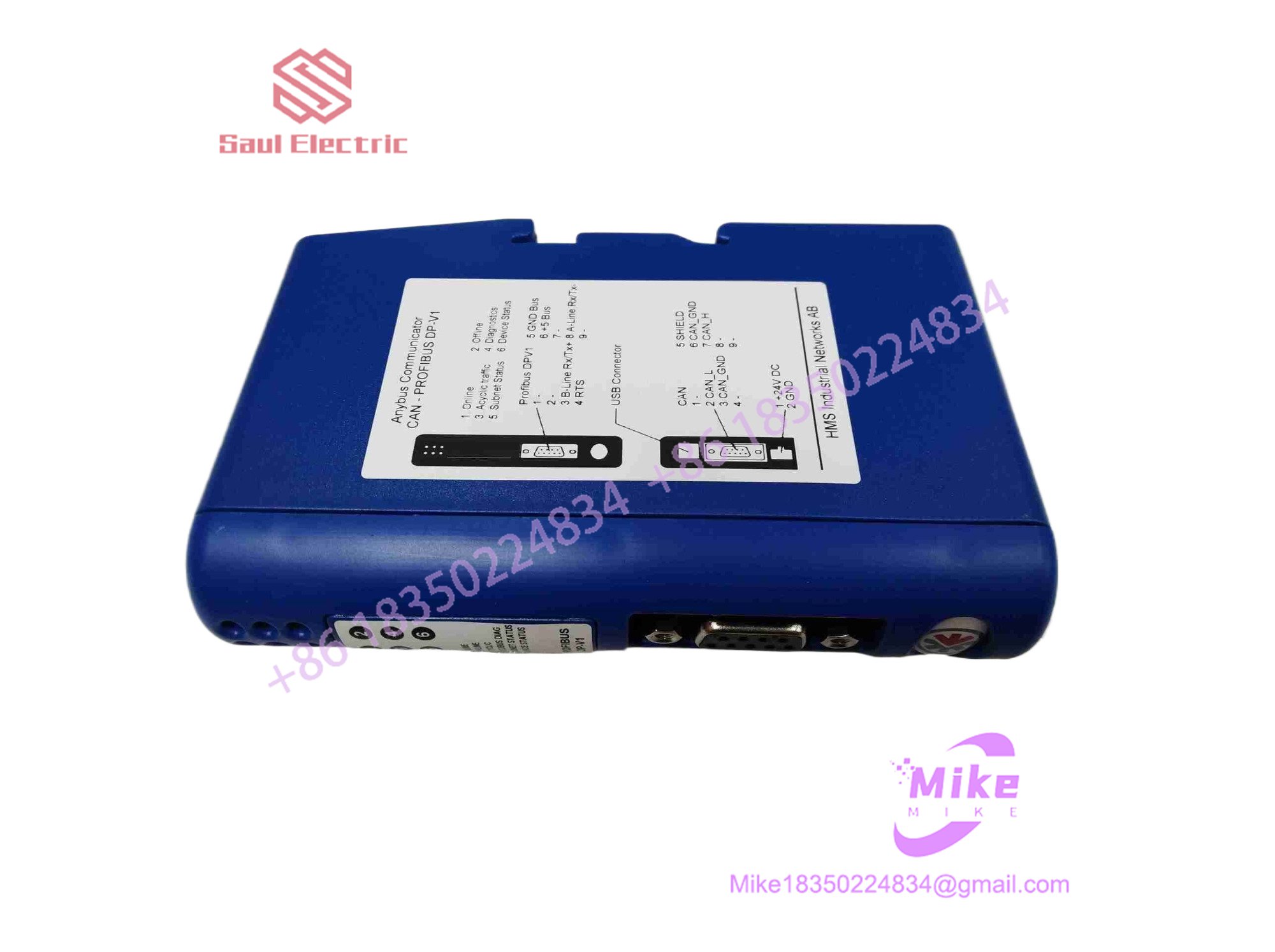

AB7312-B
Key Technical Specifications
| Parameter | Specification Detail |
| Primary Conversion | Serial Subnetwork Master to Modbus TCP Server |
| Serial Physical Interface | RS-232, RS-422, RS-485 (Software selectable) |
| Ethernet Interface | Dual RJ45 ports, 10/100 Mbps, switch integrated |
| Serial Baud Rate | Up to 115.2 kb/s |
| Modbus TCP Support | Up to 10 simultaneous connections |
| Power Input Requirements | 24 VDC (\pm 20%) |
| Enclosure & Mounting | IP20 plastic housing for DIN-rail mounting |
| Operating Temperature | -25°C to +55°C |
| Configuration Port | USB or Serial configuration interface |
Global Sourcing & Live-Test SOP
Sourcing surplus or legacy protocol gateways requires rigorous functional verification to ensure both Ethernet switches and serial transceivers perform without packet loss. Our quality control procedure is strict:
- Inbound Verification: Units are inspected for physical enclosure damage, RJ45 latch wear, and authentic OEM factory labels to filter out unverified grey-market stock.
- Live Simulation: The gateway is mounted on an active test rig containing a Modbus TCP client simulator and an isolated serial peripheral loop.
- Diagnostics: Using Anybus Configuration Manager, we load test configuration files, flood the serial ports with polling queries, and verify that the Ethernet ports maintain stable Modbus TCP data exchanges under stress.
- Final Prep: Modules are cleaned, interface ports are capped, and units are vacuum-sealed in heavy anti-static moisture-barrier bags before inventory storage.
The Field Engineer’s Pitfall Guide
❗ Subnetwork Polling Bottlenecks: Setting the serial query rate too high on a multi-drop RS-485 loop can saturate the gateway buffer, triggering timeout flags in your SCADA or PLC client. Always pace your requests to match the actual physical response limits of the attached field instruments.
❗ IP Address Mismatches During Swaps: Dropping a replacement AB7312-B into a live cabinet without updating its IP address to match the legacy unit will instantly break your Ethernet communication links. Always pre-configure the network parameters before field installation.
❗ Floating Serial Bias: Failing to properly bias long RS-485 cable runs attached to the gateway subnetwork port will cause intermittent frame dropouts from electrical noise, leading to erratic register values on your Modbus TCP network.
Intent-Driven FAQ
Can the AB7312-B act as a Modbus TCP Client (Master)?
The gateway primarily acts as a Modbus TCP Server (Slave) to external controllers, while operating as a Master (query/response handler) on its internal serial subnetwork side.
What software is used to configure this gateway?
You use the Anybus Configuration Manager (ACM) software running on a PC connected via USB or serial cable to build the data mapping tables between the serial devices and Modbus TCP registers.
Is the AB7312-B suitable for high-temperature cabinets?
Yes, unlike older classic models, the Advanced series features an expanded operating temperature range of -25°C to +55°C, making it more resilient in unconditioned field enclosures.
What ESI or configuration files are needed for PLC integration?
Because Modbus TCP relies on standard register addressing rather than proprietary device files, you configure your PLC or SCADA system using the specific memory map defined in your Anybus project configuration.
What warranty comes with surplus AB7312-B units?
Every unit delivered from our stock includes a comprehensive 12-month operational warranty covering internal transceiver health, Ethernet switch performance, and power regulation stability.
