HMS Anybus AB7006-B | Serial Master to ControlNet Gateway
Dynamic Product Introduction
Connecting legacy industrial devices—such as specialized analyzers, weighing scales, or drives—to a robust Rockwell ControlNet architecture often presents severe compatibility hurdles. The HMS Anybus AB7006-B gateway bridges this gap by functioning as an intelligent protocol translator, converting custom ASCII or Modbus-RTU serial data strings directly into ControlNet I/O tags.
Honestly, while Ethernet-based networks dominate modern expansions, legacy ControlNet infrastructures demand rock-solid hardware reliability. This Communicator unit handles request/response polling efficiently, allowing host controllers to harvest remote serial data without altering target device firmware.

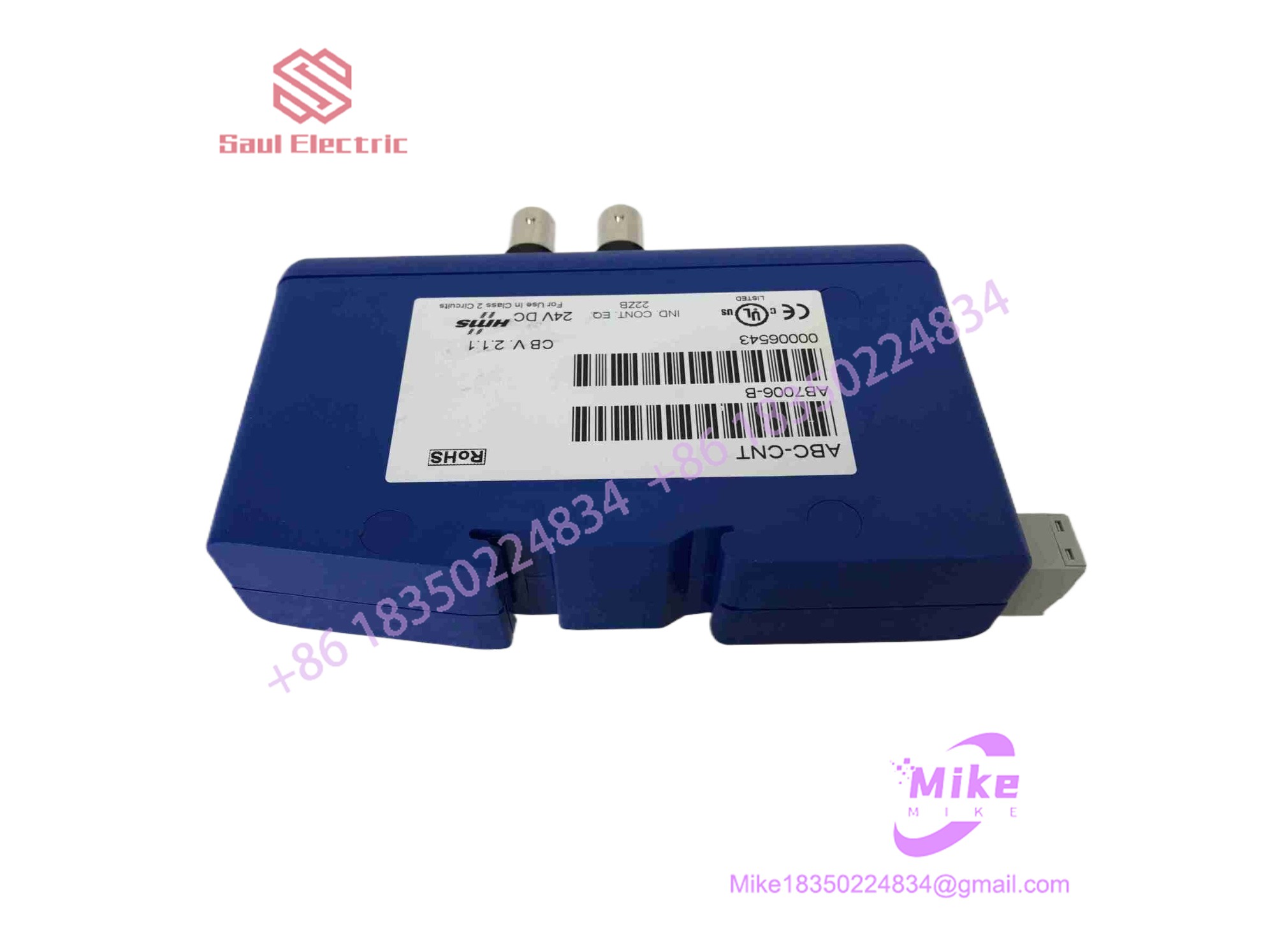

AB7006-B
Key Technical Specifications
| Parameter | Specification Detail |
| Primary Conversion | Serial Subnetwork Master to ControlNet Adapter |
| Serial Physical Interface | RS-232, RS-422, RS-485 (Software selectable) |
| ControlNet Interface | Dual BNC coaxial connectors (RG-6/U) |
| Baud Rate (Serial) | Up to 57.6 kb/s |
| ControlNet Baud Rate | 5 Mbps |
| Power Input Requirements | 24 VDC (\pm 10%) |
| Enclosure & Mounting | IP20 plastic housing for DIN-rail mounting |
| Operating Temperature | 0°C to +55°C |
| Configuration Port | Dedicated RS-232 configuration cable interface |
Global Sourcing & Live-Test SOP
Procuring legacy network gateways requires strict functional testing to ensure both serial transceivers and coaxial ControlNet chips operate seamlessly. Our validation workflow ensures field readiness:
- Inbound Verification: Units are inspected for physical housing integrity, coaxial BNC connector thread stability, and authentic OEM labeling to weed out counterfeit stock.
- Live Simulation: The gateway is mounted on an active test bench equipped with a ControlNet scanner node and an isolated RS-485 serial simulator.
- Diagnostics: Using Anybus Configuration Manager, we inject protocol translation scripts, flood the serial ports with test polling loops, and verify that the ControlNet node establishes stable cyclic data exchange without dropping packets.
- Final Prep: Modules are cleaned, interface ports are capped, and units are vacuum-sealed in heavy anti-static moisture barrier bags.
The Field Engineer’s Pitfall Guide
❗ Coaxial Cable Impedance Discrepancies: ControlNet relies strictly on 75-ohm coaxial cabling and matching BNC taps. Using standard 50-ohm RF cables or mismatched connectors will cause severe signal reflections, leading to intermittent node drops across the network loop.
❗ Subnetwork Polling Congestion: Setting serial query rates too high on an RS-485 multi-drop line can overwhelm the gateway’s internal buffer, triggering timeout flags in your Rockwell PLC. Always match your poll schedule to the actual response speed of the field instruments.
❗ Lost Configuration Profiles: The AB7006-B stores its translation mapping internally. If you swap an unprogrammed spare into a live panel without uploading the exact .cfg file via the serial configuration port, the gateway will remain invisible to the ControlNet scanner.
Intent-Driven FAQ
Can the AB7006-B act as a ControlNet Scanner (Master)?
No. The AB7006-B operates strictly as a ControlNet Adapter/Slave node on the network side, while acting as a Master (query/response handler) on its serial subnetwork side.
What software is needed to configure this gateway?
You must use the Anybus Configuration Manager (ACM) software running on a PC connected via a serial cable to map data registers between the serial subnetwork and the ControlNet cyclic assembly.
Is the AB7006-B still actively manufactured?
While newer generation Anybus models have emerged, this classic series remains supported through certified surplus and tested functional replacements for long-term plant maintenance.
What EDS file is required for Rockwell PLC integration?
You must download the Electronic Data Sheet (.eds) file specific to the model from the manufacturer support portal and import it into RSLogix 5000 / Studio 5000.
What warranty comes with surplus units?
Every unit shipped from our stock includes a 12-month operational warranty covering internal transceiver health, power regulation, and protocol conversion stability.
