GESAS CAN-DCM | CAN Bus Display & I/O Controller
Product Introduction
When a complex mobile machine or industrial control node experiences bus communication faults due to an unresponsive visualization module, sourcing an exact-match replacement prevents prolonged operational bottlenecks. The GESAS CAN-DCM is not a standard office-grade computing display; it is a heavy-duty industrial control and monitoring module engineered specifically to withstand severe vibration, temperature fluctuations, and electrical noise found in heavy machinery.
Integrated directly into the machine’s control network, the unit processes incoming sensor feedback and translates system variables into clear operational feedback—keeping system loops synchronized across distributed nodes. It demands a stable DC power supply and proper CAN bus termination, but once commissioned, it delivers the robust reliability required for demanding industrial and mobile applications.

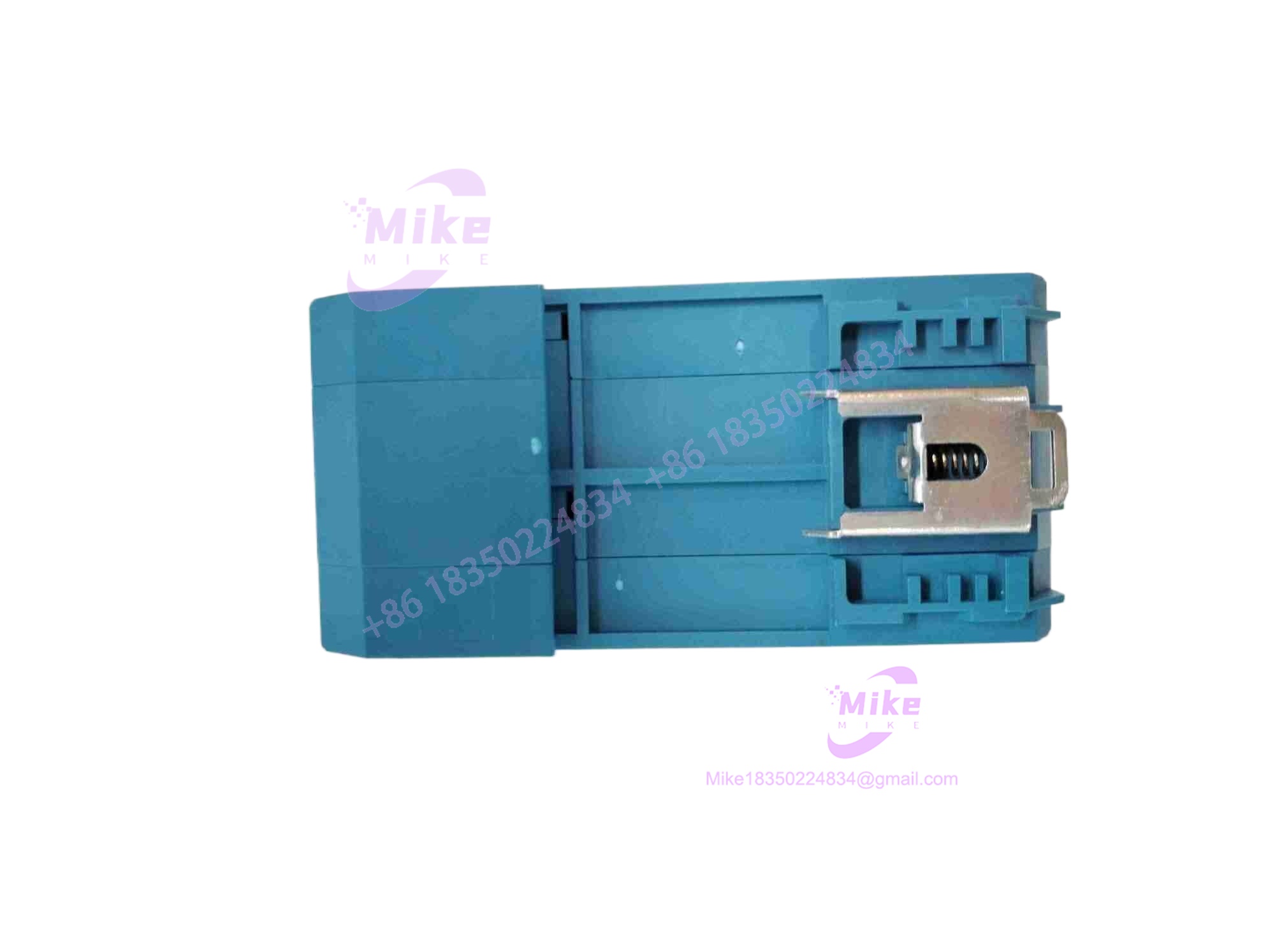

CAN-DCM
Key Technical Specifications
| Parameter | Specification |
| Communication Interface | Opto-isolated CAN 2.0A/B bus architecture |
| Power Supply Requirements | Industrial DC voltage rail (9VDC to 32VDC) |
| I/O Configuration | Configurable digital and analog inputs/outputs |
| Operating Temperature | -20^\circC to +70^\circC industrial standard |
| Enclosure Protection | Rugged housing built for harsh operational environments |
| Mounting Type | Panel mount / DIN rail options depending on sub-variant |
| Weight | Approximately 0.6 kg |
Application Scenarios & Pain Points
- Mobile Hydraulic & Agricultural Machinery: Electrical transients and harsh vibration used to cause controller reboots on older mobile rigs until maintenance teams upgraded to a verified replacement unit. Swapping in the CAN-DCM restored stable bus communication.
- Industrial Process Control Skids: Without reliable local monitoring and real-time parameter scaling, operators lose visibility during critical batch sequences. This GESAS module maintains steady data handling, preventing unexpected process interruptions.
- Legacy System Modernization: A manufacturing plant avoided an expensive, full-scale control architecture overhaul by dropping a verified surplus CAN-DCM unit directly into an existing network layout.
QA & Live Testing SOP (Trust Signal)
Industrial networking hardware demands rigorous verification before installation. Every incoming GESAS CAN-DCM goes through a strict multi-point test protocol:
- Visual & Structural Inspection: We check internal board traces for thermal stress, examine connector pins for oxidation, and inspect housing seals for integrity.
- Powered Bench Verification: The unit is connected to a live CAN network test rig, supplied with nominal DC voltage, and subjected to message polling and I/O switching checks.
- ESD-Safe Packaging: Units are sealed in heavy-duty moisture-barrier antistatic bags. When you unbox the CAN-DCM, it is ready for immediate deployment.
Field Engineer’s Pitfall Guide
- ❗ CAN Bus Termination Errors: Failing to install proper 120-ohm terminating resistors at both ends of the CAN bus line will cause severe packet reflection errors and intermittent communication drops.
- ❗ Power Supply Voltage Spikes: Always verify your vehicle or cabinet DC supply regulation; exceeding the maximum voltage threshold will permanently damage internal power regulation components.
- ❗ Shielding Ground Omissions: Never leave CAN communication cable shields floating; always ground them properly at one end to prevent electrical noise from corrupting data frames.
Intent-Driven FAQ
Can the GESAS CAN-DCM be integrated into standard CANopen networks?
Yes, provided the device is configured with the correct node ID and baud rate matching your broader network architecture parameters.
Is this specific CAN-DCM unit brand new or surplus?
This inventory consists of verified surplus—un-installed factory backup stock preserved in climate-controlled storage environments.
What kind of tools are required to configure or mount this module?
Basic hand tools are sufficient for physical mounting and wiring terminations, though configuring application-specific parameters may require specialized software utilities depending on your system’s setup.
What kind of warranty comes with this purchase?
Every surplus CAN-DCM unit includes a standard 1-year functional replacement warranty covering any electrical or mechanical defects under normal operating conditions.
Does the unit require external fusing?
Yes, standard electrical safety practices dictate installing an appropriately sized inline fuse on the incoming DC power supply rail to protect internal circuitry.
