Galil DMC-9940 | High-Performance Industrial Automation Controller
Dynamic Product Introduction
Handling demanding multi-axis motion profiles in high-speed manufacturing, semiconductor handling, and automated test equipment requires powerful controllers capable of rapid command execution and precise interpolation. Honestly, the Galil Motion Control DMC-9940 solves this challenge directly by delivering advanced closed-loop motion control with high-frequency loop updates and versatile axis configuration. This unit handles complex motion modes—including linear/circular interpolation, electronic gearing, and contouring—reliably without tracking lag or command drift (—though verifying your exact firmware revision, communication port configuration, and terminal breakout wiring beforehand is essential). Compared to standard automation controllers, the Galil DMC-9940 provides robust real-time performance, intuitive command syntax, and dependable industrial reliability.

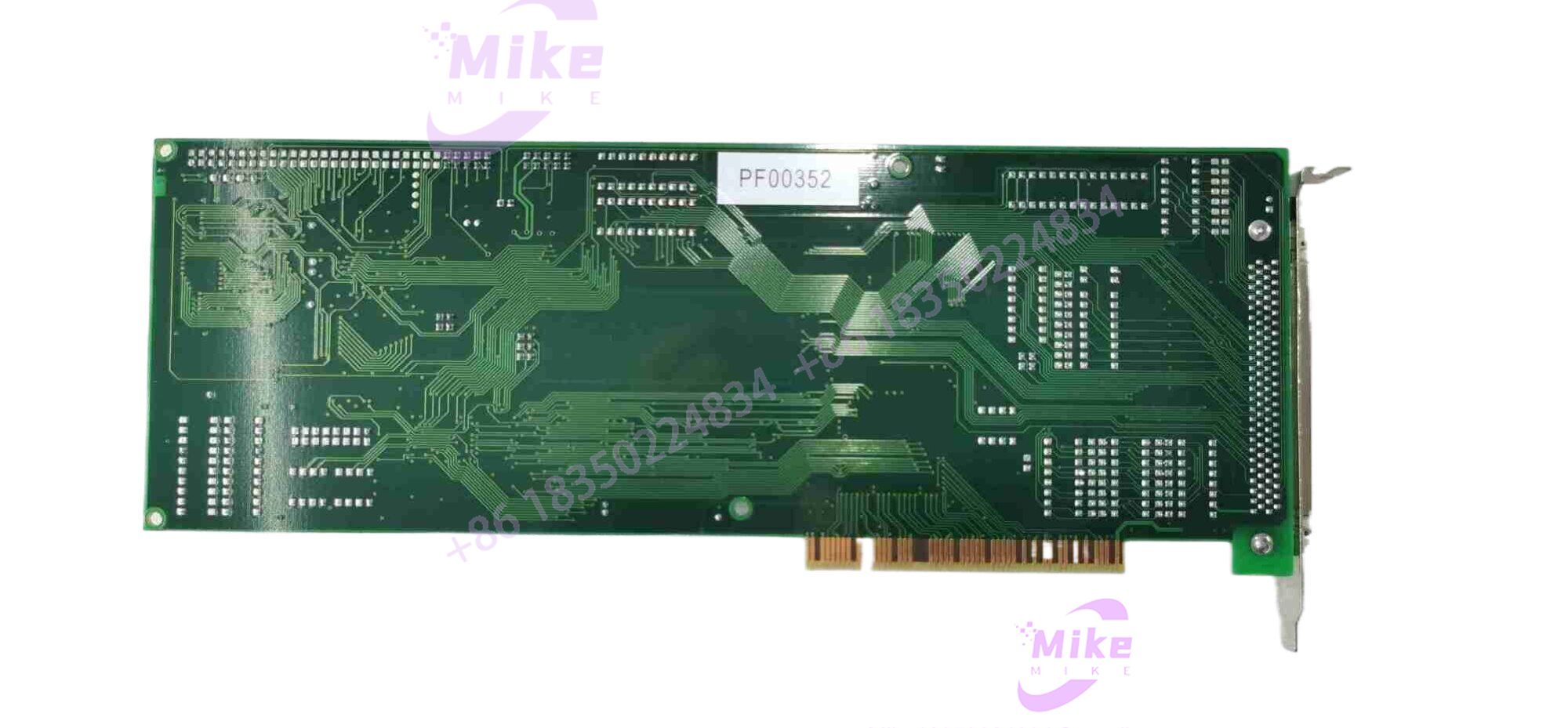

DMC-9940
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Galil High-Performance Motion Controller Line |
| Model Designation | DMC-9940 (Multi-Axis Motion Controller) |
| Axis Control Capacity | Multi-axis coordinated or independent control (user-configurable for servo/stepper) |
| Processor Architecture | High-speed RISC-based processor with advanced DSP functions |
| Communication Interfaces | Ethernet (10/100 Base-T), RS-232, and RS-485 serial communication options |
| Feedback & Pulse Limits | High-frequency quadrature encoder inputs and dedicated step/direction outputs |
| Programming & Support | Galil two-letter command language (GCL), multitasking support, and GalilTools software compatibility |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market precision motion controllers requires exhaustive evaluation to ensure internal microprocessors, power regulation stages, optoisolated I/O channels, and communication ports remain uncompromised. For every inbound Galil DMC-9940 unit, our audit team logs serial numbers against global traceability ledgers, inspects terminal connectors and board traces for thermal stress, and checks interface ports for electrostatic vulnerability.
Once cleared, the controller is mounted onto a dedicated Galil test bench. Technicians apply nominal operating power, verify Ethernet and serial communication link stability, test encoder pulse counting and command output channels across all axes, and execute multi-axis diagnostic motion routines. The unit is then cleaned, fitted with anti-static packaging, and securely prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ Power Supply and Voltage Mismatch: Ensure the incoming DC power supply strictly matches the controller’s rated operational window; improper voltage levels can cause erratic reboots or damage internal logic circuitry.
❗ Improper Grounding and Shielding: Failing to properly ground encoder shield drains and controller chassis to a clean earth ground can introduce electrical noise, resulting in position tracking errors or fault trips.
❗ Communication Configuration Errors: Verify IP address settings, baud rates, and cable pinouts when replacing controllers to prevent network timeouts or command loss during host communication.
Intent-Driven FAQ
- What is the primary function of the Galil DMC-9940?
It functions as a high-performance multi-axis motion controller designed to provide closed-loop position, velocity, and trajectory control for industrial automation systems.
- Does the support both servo and stepper motors?
Yes, the controller’s axes are user-configurable to support either servo or stepper motor configurations.
- What type of warranty covers verified surplus Galil controllers?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- How does the controller communicate with host systems or PLCs?
It supports standard industrial communication protocols including Ethernet (10/100 Base-T) and RS-232/485 serial ports.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
