Galil DMC-4143 | Compact 4-Axis Multi-Axis Servo & Stepper Controller
Dynamic Product Introduction
Integrating precise multi-axis motion control into space-constrained industrial control cabinets requires compact controllers that combine high-speed trajectory generation with flexible communication options. Honestly, the Galil Motion Control DMC-4143 solves this challenge directly by serving as a robust 4-axis motion controller within Galil’s compact Optima family. This unit handles multi-axis coordinated linear/circular interpolation, advanced PID filter tuning, and precise positioning profiles reliably without command lag or tracking drift (—though verifying your exact module option suffixes, DC power supply requirements, and encoder breakout wiring beforehand is essential). Compared to bulky card-slot systems, the Galil DMC-4143 delivers modern Ethernet connectivity, flexible mixed servo/stepper configurations, and dependable industrial reliability in a space-saving package.

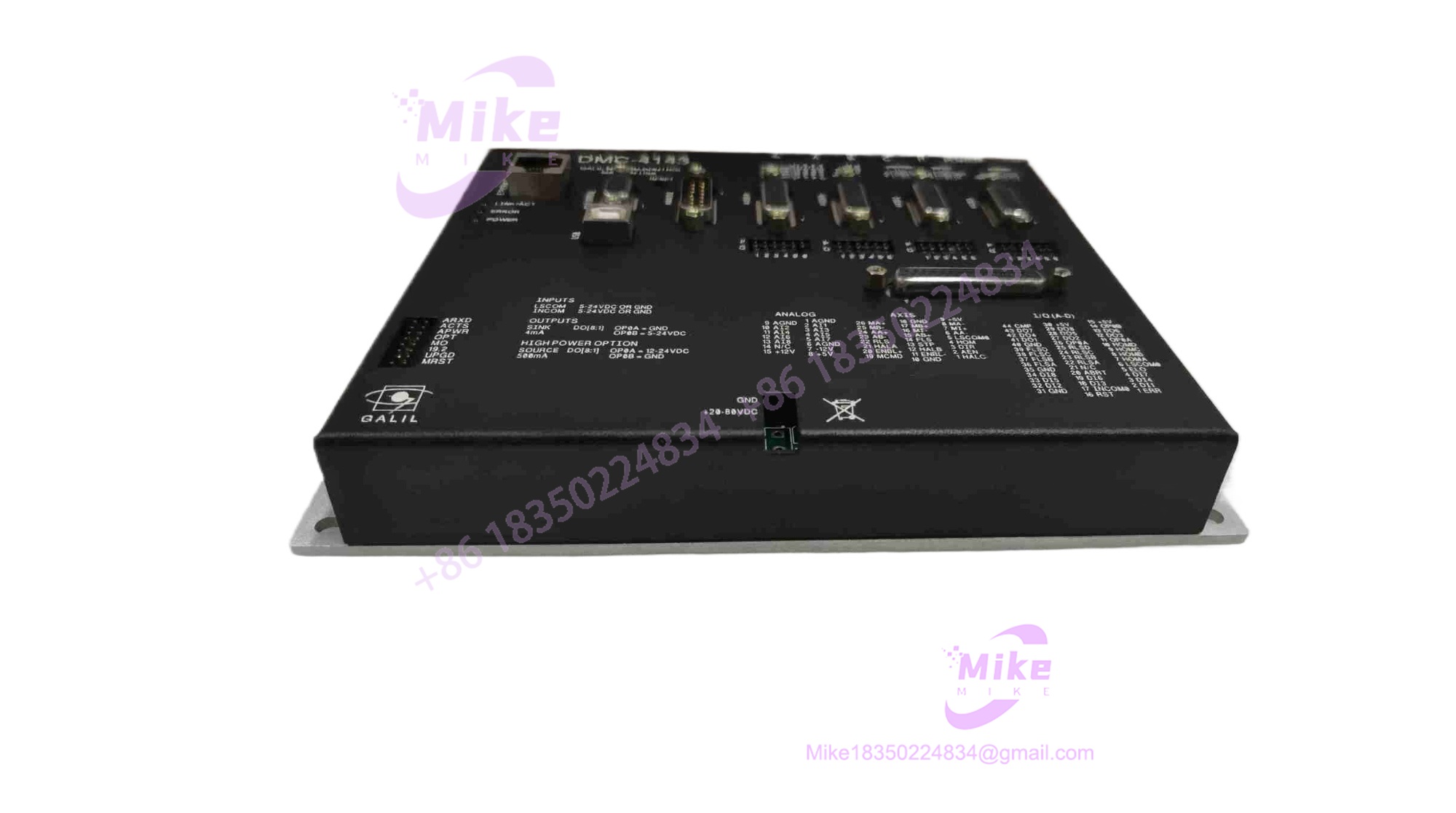

DMC-4143
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Galil DMC-41xx Optima Motion Controller Line |
| Model Designation | DMC-4143 (4-Axis Compact Motion Controller) |
| Axis Control Capacity | 4 fully independent or coordinated axes (user-configurable for servo or stepper) |
| Processor Architecture | High-speed RISC-based processor core with advanced DSP capability |
| Communication Interfaces | 10/100 Base-T Ethernet port and RS-232 / RS-485 serial communication ports |
| Feedback & I/O | Quadrature encoder inputs, uncommitted analog inputs, and optoisolated digital I/O |
| Power Requirements | 20–80 VDC single power source for controller logic and internal circuitry |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market compact motion controllers requires rigorous bench evaluation to ensure internal power supplies, microprocessors, optoisolated I/O channels, and communication ports remain uncompromised. For every inbound Galil DMC-4143 unit, our audit team logs serial numbers against global traceability ledgers, inspects terminal blocks and internal connectors for thermal stress, and checks interface ports for electrostatic vulnerability.
Once cleared, the controller is mounted onto a dedicated Galil test bench. Technicians apply nominal 20–80 VDC power, verify Ethernet and serial communication link stability, test encoder pulse counting and command output channels across all 4 axes, and execute multi-axis diagnostic motion routines. The unit is then cleaned, fitted with anti-static packaging, and securely prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ Power Supply Voltage Mismatch: Ensure the incoming DC power supply strictly matches the 20–80 VDC operational window; undervoltage can cause erratic processor reboots, while severe overvoltage will damage internal power regulation circuitry.
❗ Improper Grounding and Shielding: Failing to properly ground encoder shield drains and controller chassis to a clean earth ground can introduce electrical noise, resulting in position tracking errors or runaway fault trips.
❗ Incorrect Module Suffix Configuration: When sourcing replacement DMC-4143 units, always verify the exact sub-part option codes to match your machine’s wiring harness and accessory board configuration.
Intent-Driven FAQ
- What is the primary function of the Galil ?
It functions as a 4-axis compact motion controller designed to provide closed-loop position, velocity, and interpolation control for industrial automation systems.
- Can the control both servo and stepper motors?
Yes, each of the 4 axes is user-configurable for either servo or stepper motor operation in any combination.
- What type of warranty covers verified surplus Galil controllers?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- How does the controller interface with a host PC or PLC?
It communicates via standard 10/100 Base-T Ethernet or auxiliary serial ports using Galil’s intuitive two-letter command language.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
