Description

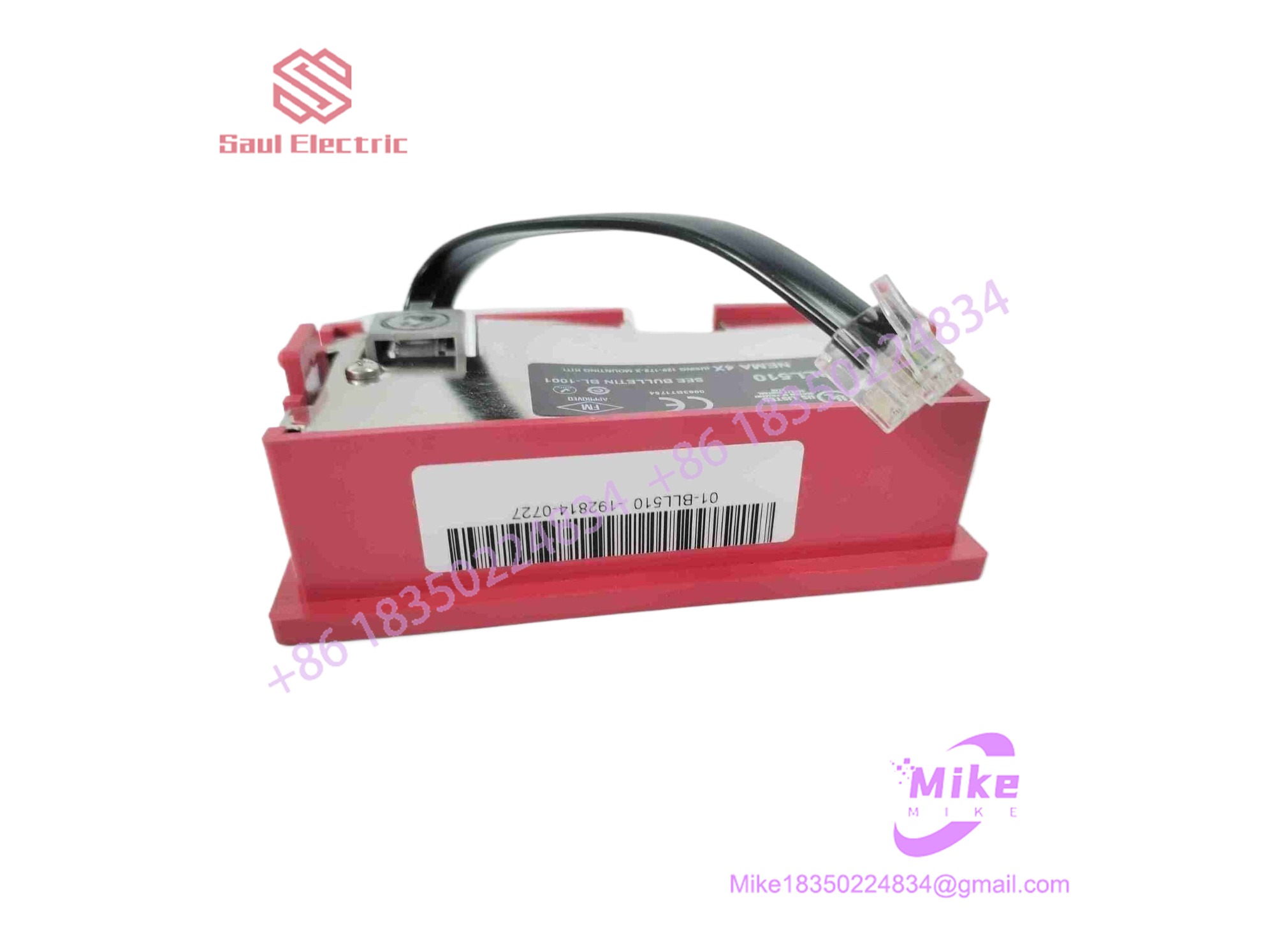

Fireye BLL510 | BurnerLogiX LCD Display and Keypad Module
Product Introduction
When a high-capacity industrial boiler drops into lockout status without a clear indicator code, technician troubleshooting turns into a frustrating guessing game. The Fireye BLL510 is not a simple indicator light; it functions as a dedicated liquid crystal display and keypad module engineered specifically for the BurnerLogiX YB and ZB series control architecture.
—though your mileage may vary depending on local panel mounting constraints and ambient light levels—expect clear, plain-language diagnostics that eliminate the need to cross-reference flash code manuals. It mounts directly onto the burner controller or extends cleanly to a remote NEMA 4 enclosure faceplate, bringing total sequence visibility right to the operator’s fingertips.
Key Technical Specifications
| Parameter | Specification |
| Display Type | Backlit Liquid Crystal Display (LCD) |
| Format | 2 lines by 16 characters per line |
| Compatibility | Fireye BurnerLogiX YB110, YB230, and ZB110 control chassis |
| User Input | Integrated multi-button functional navigation keypad |
| Operating Temperature | -20^\circC to +60^\circC (-4^\circF to 140^\circF) |
| Enclosure Rating | NEMA 4 / NEMA 4X capability when paired with remote mounting kits |
| Included Hardware | Dedicated Fireye panel connection cable |
| Agency Approvals | UL (US and Canada), FM compliant |
Application Scenarios & Pain Points
- Commercial Water Tube Boiler Lockouts: Plant engineers diagnosing recurring ignition failures use the BLL510 history log to review the exact step where the pre-purge or trial-for-ignition cycle faulted.
- Remote Control Panel Upgrades: Technicians upgrading older burner management panels route the display via extension kits to the outside of heavy steel cabinets, allowing operators to monitor flame signal strength without opening live electrical enclosures.
- Precise Parameter Configuration: Eliminates the guesswork of dip switches by allowing direct field adjustments of system timers and operational configurations through a guided menu structure.
QA & Live Testing SOP (Trust Signal)
We evaluate delicate combustion control interfaces using strict diagnostic checks prior to packaging:
- Visual & LCD Matrix Inspection: Inspected for surface scratch defects, backlight consistency, and clear pin alignment on the modular communication cable plug.
- Keypad Tactile Audit: Every individual push-button on the navigation matrix is cycled to confirm clean mechanical bounce-back and immediate electronic register response.
- Powered BurnerLogiX Handshake: Connected to a live test chassis to verify proper boot sequence, character generation, menu scrolling, and real-time polling data transmission.
- ESD Protective Packaging: Enclosed in anti-static shielding bags to protect sensitive onboard logic microprocessors during shipping.
Field Engineer’s Pitfall Guide
- ❗ System Cross-Compatibility Confusion: Do not attempt to plug the BLL510 into older Fireye Flame-Monitor (E1st) or MicroM chassis models; it is strictly dedicated to the BurnerLogiX ecosystem.
- ❗ Hot-Plug Communication Faults: Avoid plugging or unplugging the display cable while the main burner control chassis is actively energized to prevent communication lockups or transient data corruption.
- ❗ Moisture Sealing Omissions: When doing a remote panel mount, failing to use the proper gasket sealing kit will compromise the NEMA 4 rating, letting ambient boiler room moisture ruin the internal board.
Intent-Driven FAQ
Can the BLL510 display be used on legacy Fireye Flame-Monitor controls?
No. The BLL510 is custom-engineered exclusively for the BurnerLogiX YB and ZB series microprocessor controls and is not backward compatible with older platforms.
What is the difference between the and models like the BLV512?
The utilizes a standard Liquid Crystal Display (LCD) screen, whereas alternative models like the BLV512 utilize an OLED screen. Both offer identical menu trees and complete functional compatibility with BurnerLogiX hardware.
Does the display module come with the necessary cable?
Yes. The unit ships standard with the specific Fireye plug-in communication cable required to interface directly with the BurnerLogiX programmer module or chassis.
Can I change factory burner configuration parameters using this keypad?
Yes. The integrated menu system and functional keypad allow authorized technicians to view lockouts, monitor flame signal strength, and modify configurable operating parameters directly.
Is this display rated for outdoor or washdown boiler environments?
When mounted directly on the chassis, it meets standard indoor requirements. However, it achieves a full NEMA 4X environmental protection rating when installed remotely using an official Fireye weather-sealing mounting kit.
