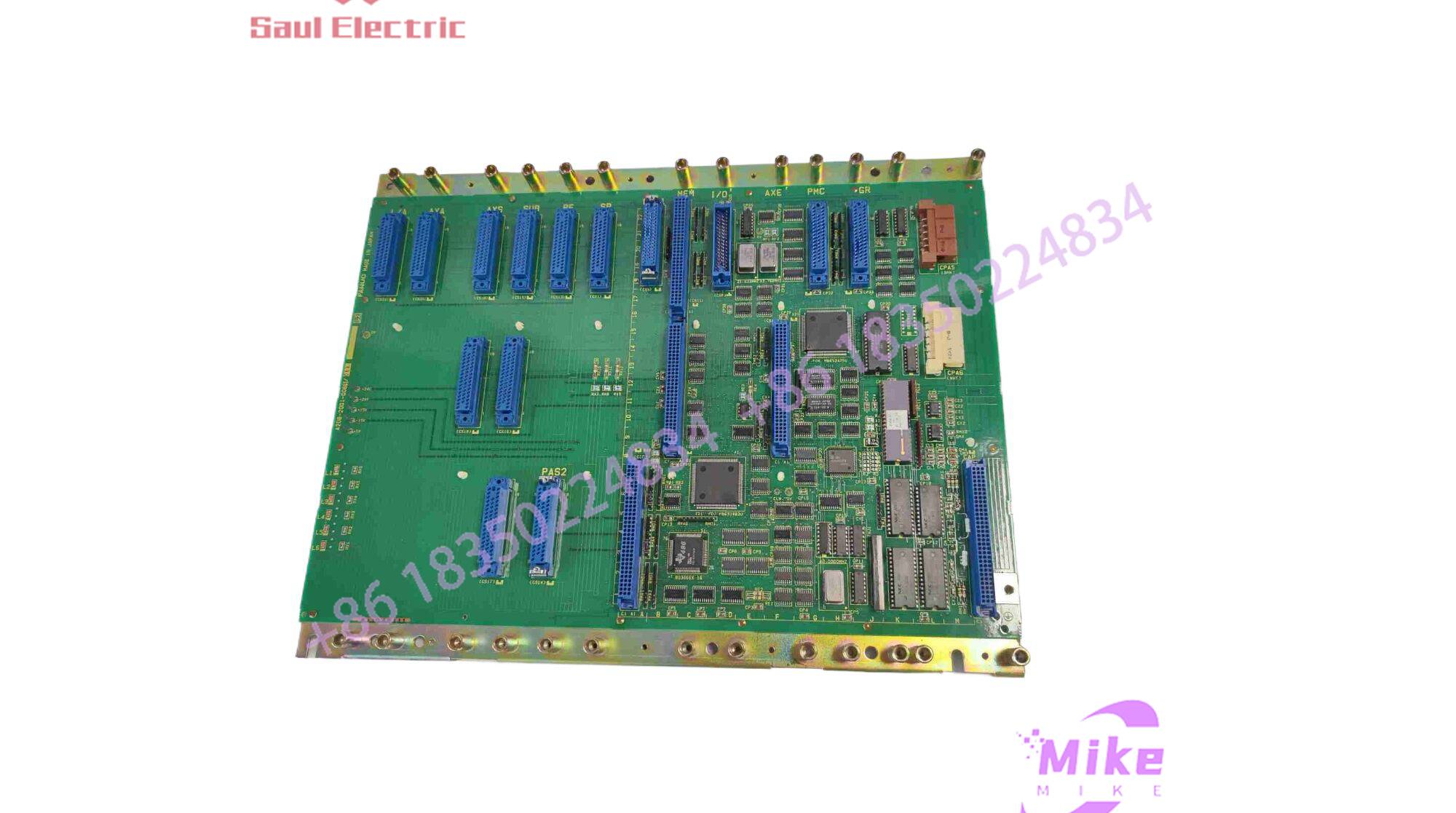

FANUC A20B-2001-0065 | Series 0-C Master PCB Board, New Surplus
Architect’s Product Breakdown
The A20B-2001-0065 acts as the central intelligence hub for legacy FANUC Series 0-C and 0-D control systems. Hosting the core processing architecture, memory interfaces, and axis control loops, this full-size master board coordinates every motion profile, input/output handshake, and program execution cycle on vintage machine tools. Its dense surface-mount layout and specialized bus structure require stable regulated power and immaculate environmental controls inside the electrical cabinet to prevent data corruption or component drift.
Replacing a motherboard of this generation requires careful data migration and system parameter verification. Because machine parameters, pitch error compensation, and custom ladder logic are closely tied to the system configuration, swapping this board without an established memory backup will render the machine inert. Technicians must also check the SRAM backup battery voltage and ensure that all daughterboards, memory modules, and interface cards are seated firmly into the backplane slots to avoid intermittent communication dropouts.
A20B-2001-006506A
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | FANUC |
| Part Number | A20B-2001-0065 (including variants like 06A) |
| Compatible Control Series | FANUC Series 0-C, 0-D (0-MC, 0-TC, 0-MD, etc.) |
| Board Type | Master PCB / Main CPU Motherboard |
| Processor Architecture | 32-Bit High-Speed CPU |
| Mounting Style | Full-Size Rack / Chassis Backplane Mount |
| Cooling Method | Natural Convection / Enclosure Airflow |
| Operating Temperature | 0°C to 45°C (Standard Industrial Electrical Cabinet) |
Field Engineer’s Pitfall Guide
- Electrostatic Discharge (ESD) Vulnerability: Warning: The multi-layer surface-mount components and microprocessors on this master board are exceptionally sensitive to static electricity. Always wear a grounded wrist strap and handle the PCB exclusively by its edges or extraction brackets.
- Catastrophic Memory Loss During Swaps: Do not pull this board without an external data backup. I have seen maintenance teams lock up production lines for days because they swapped a faulty master PCB without dumping a complete parameters, PMC, and program backup via PCMCIA or RS232, losing machine-specific calibration permanently.
- Backplane Pin Alignment Mistakes: Never force the board into the rack slots. Aligning the card at an angle bends fragile gold pins on the backplane interface, leading to cryptic system watchdog errors and hard-to-diagnose communication faults.
QA & Testing SOP (Transparency)
- Visual & Structural Audit: Incoming boards are inspected under magnification for trace damage, corrosion, leaky battery residue, and proper OEM identification markings.
- Static Bench & Continuity Testing: Technicians verify power rail resistance values, decoupling capacitor stability, and bus buffer integrity to ensure there are no short circuits.
- Live Test Rig Simulation: The master board is installed into a dedicated FANUC Series 0 test rack, powered up under controlled conditions, and subjected to complete boot-sequence execution.
- Diagnostic Stress and Communication Run: The unit undergoes extended functional testing to verify memory read/write cycles, axis interface handshaking, and peripheral port stability before being sealed in anti-static shielding.
Technical FAQ
Can I use the A20B-2001-0065 master board as a direct substitute for older 16-bit Series 0-A or 0-B controls?
No. This board is engineered specifically for the 32-bit architecture of Series 0-C and 0-D systems. Software versions, bus pinouts, and hardware compatibility are fundamentally different from older revisions.
What triggers a watchdog or system error immediately after installing a replacement motherboard?
This typically indicates a mismatch between the system software installed on the ROM/FROM modules and the master board configuration, or corrupted parameters. Ensure your system software modules match the exact specifications required by the machine tool builder.
Are component-level repairs viable for this circuit board?
While specialized depot repair centers can replace failed surface-mount ICs, bus drivers, or memory support chips, field-level micro-soldering is strongly discouraged due to the multi-layer construction of the PCB. Full board exchange or certified depot rebuilding is the industry standard.
Does this board retain user programs and parameters independently when powered down?
No. While it hosts the memory slots, user programs and parameters rely on the system’s SRAM and active backup battery setup. Always verify that the controller battery voltage is healthy during any hardware maintenance cycle.
