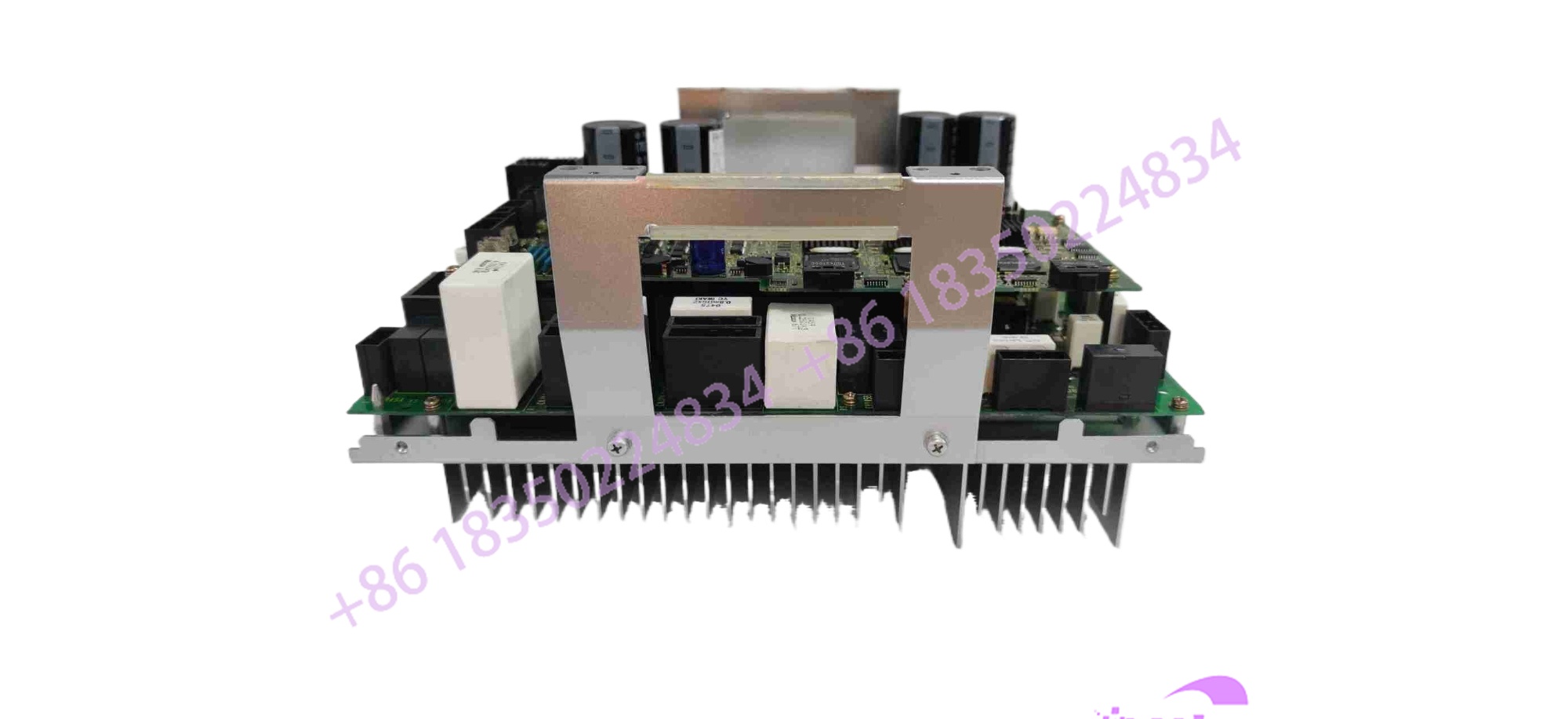

FANUC A06B-6107-H001 | Alpha iSV 1-20 Servo Amplifier, New Surplus
Architect’s Product Breakdown
The A06B-6107-H001 serves as a high-reliability single-axis power node within FANUC’s Alpha i motion control ecosystem. Positioned alongside power supply modules on the internal bus, this unit translates digital FSSB commands into precisely modulated three-phase power for smaller to mid-range axis motors. Its compact footprint maximizes cabinet real estate while maintaining the rapid dynamic response required for high-speed contouring applications.
Replacing this amplifier requires meticulous attention to optical fiber hygiene and intermediate DC bus discharge timelines. Because these units rely on high-speed serial fiber loops for multi-axis synchronization, any particulate contamination on the connector tips triggers immediate communication faults. When dropping a replacement unit into an active cabinet, always verify that the hardware version matches the system software parameters to avoid unexpected axis initialization errors.
A06B-6107-H001
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | FANUC |
| Part Number | A06B-6107-H001 |
| Series | Alpha i Series (AiSV 1-20) |
| Module Type | Single-Axis Servo Amplifier |
| Control Interface | FSSB (FANUC Serial Servo Bus) |
| Input Voltage | 3-Phase 200V to 240V AC |
| Rated Output Current | 12A (L-Axis rating class depending on profile) / 20A Peak |
| Cooling Method | Internal Forced Air / Heatsink Conduction |
| Protection Rating | IP00 (Open-type equipment for cabinet mounting) |
| Operating Temperature | 0°C to 55°C |
Field Engineer’s Pitfall Guide
- Lethal DC Bus Voltage Retention: Warning: Never unplug power leads immediately after cutting the main cabinet breaker. The large onboard electrolytic storage capacitors retain high-voltage DC for an extended window. Always wait a minimum of 15 minutes and verify zero voltage using a calibrated multimeter across the DC link terminals before laying hands on the hardware.
- FSSB Optical Fiber Contamination: Do not touch the polished face of the optical connectors with bare fingers. I have witnessed maintenance crews spend hours hunting down phantom communication timeouts simply because an oily fingerprint blocked the light pulse passing between the CNC controller and this drive module. Clean only with approved optical wipes.
- Choked Internal Cooling Paths: These single-axis Alpha i modules use internal fans to pull air across dense internal heatsinks. If the electrical enclosure filter mats are neglected, dust buildup chokes airflow and causes sudden over-temperature shutdowns right in the middle of production runs.
QA & Testing SOP (Transparency)
- Visual & Structural Audit: Incoming units are inspected for physical housing damage, blown protective fuses, leaky electrolytic caps, and genuine OEM labeling integrity.
- Dynamic Bus & Power Stage Testing: Technicians mount the module onto a controlled test bench connected to an isolation power supply to verify soft-start charging circuits and gate driver responses.
- FSSB Handshake & Axis Simulation: The amplifier is linked into an active test rack via FSSB optical cable to verify command tracking, encoder feedback loop processing, and error-reporting logic.
- Thermal Soak & Packaging: Units are subjected to a prolonged operational run test under load to guarantee stability before being wrapped in anti-static materials and sealed in moisture-barrier packaging.
Technical FAQ
Can I hot-swap this Alpha i servo amplifier while the machine control is energized?
No. Hot-swapping power electronics or optical control cards on the Alpha i bus will instantly damage internal logic gates, risk severe electrical arcing, and corrupt the FSSB network configuration. Always execute a complete lockout/tagout (LOTO).
What triggers an Alarm 401 or similar drive fault after installing a replacement unit?
This typically indicates an FSSB configuration mismatch or an unassigned axis ID. When replacing a drive module, the CNC controller often requires an FSSB re-allocation or parameter restore to recognize the hardware address of the new unit.
Are the internal cooling fans field-replaceable?
Yes, the front-loading cooling fan cartridges on Alpha i amplifiers are built for modular field replacement. However, ensure the main power is completely off and discharged before sliding out the assembly.
Does this amplifier require specific software version matching with the Power Supply Module?
Yes. The entire Alpha i drive lineup depends on tightly synchronized internal firmware protocols. Mixing mismatched hardware generations without checking system software compatibility can cause unrecoverable startup faults.
