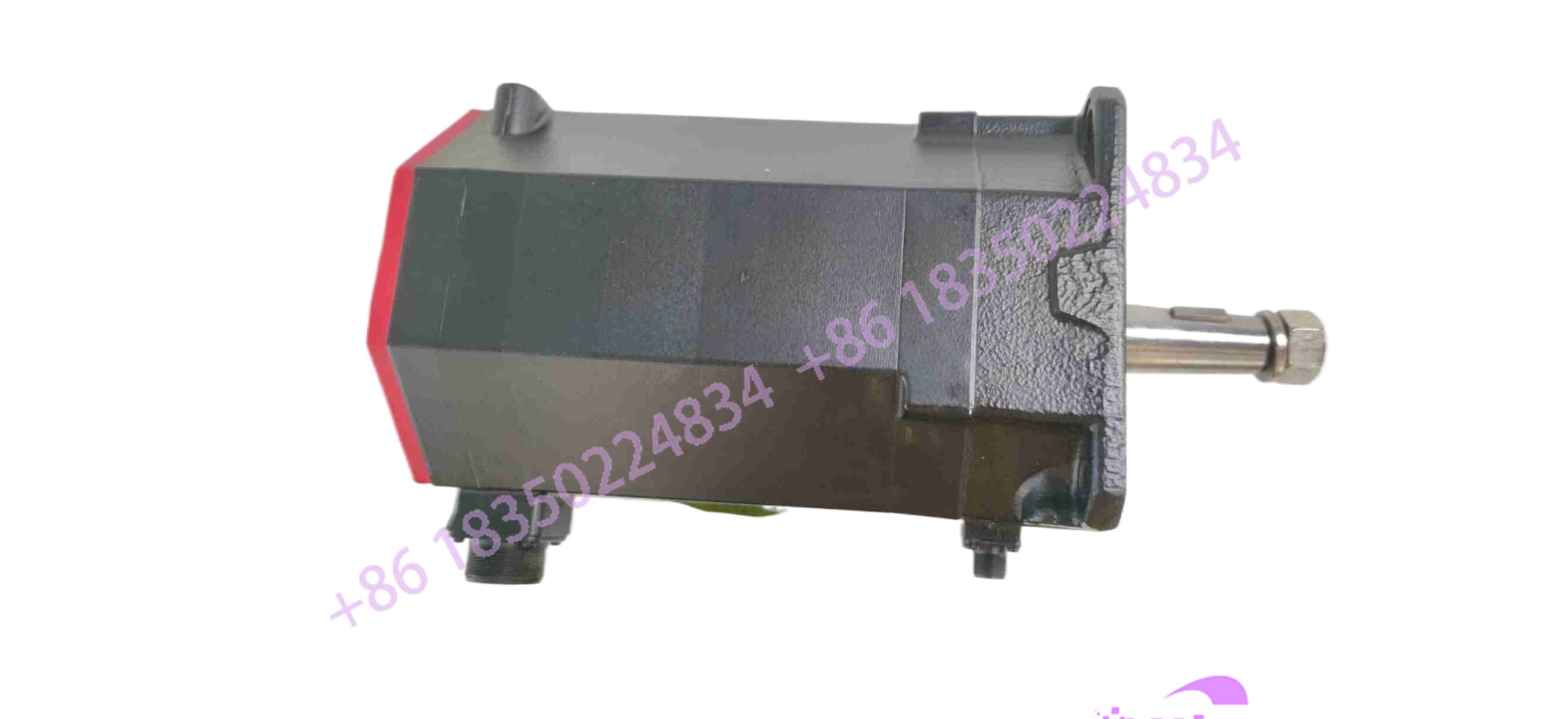

FANUC A06B-0272-B605 | Alpha iS 30/4000 Servo Motor, New Surplus

Architect’s Product Breakdown

The A06B-0272-B605 is built for high-inertia, high-load axes found on large multi-axis machining centers, gantry mills, and heavy-duty turning machines. As an Alpha iS 30/4000 unit, it delivers substantial continuous and peak torque, allowing heavy metal-removal rates without sacrificing path accuracy or dynamic responsiveness. The integrated holding brake provides critical safety-lock capability for vertical or heavily loaded inclined axes, preventing drop-down during emergency stops or total power loss.

Deploying a motor of this class requires rigorous verification of power cabling and servo amplifier capacity. The high peak currents drawn during rapid acceleration demand heavy-gauge leads and secure terminal torque to prevent voltage drop and subsequent drive faults. When replacing an existing unit, technicians must meticulously check the mechanical pilot alignment and coupling integrity to avoid premature bearing wear or torsional wind-up under high-load reversals.

A06B-0272-B605

Key Technical Specifications

Field Engineer’s Pitfall Guide

• Thermal Expansion and Axial Preload: Warning: Mating this high-capacity motor to rigid gearboxes or direct-drive ballscrews without accounting for thermal growth can destroy the front bearings. Always verify that your coupling allows micro-axial float so the motor shaft doesn’t absorb the machine’s thermal expansion.
• Corroded Feedback Connectors: Do not ignore green oxidation on the pulsecoder pins. I’ve spent entire night shifts troubleshooting sporadic alarm codes that vanished only after cleaning micro-corrosion caused by old coolant vapor weeping past a loose connector shell. Always pack the outer housing threads with appropriate dielectric grease if operating in heavy mist environments.
• Brake Release Voltage Drop: Never fire the axis without confirming full 90VDC delivery to the brake coil. If wire resistance or a failing relay drops that voltage, the brake will drag, quickly charring the friction disc and throwing an overcurrent fault on the Alpha i amplifier.

QA & Testing SOP (Transparency)

• Visual & Mechanical Inspection: Every motor undergoes complete physical checking for housing structural flaws, flange flatness, shaft runout tolerances, and correct OEM data plate stamping.
• Stator Insulation & Hipot Testing: Technicians perform high-potential dielectric withstand tests and megohm checks on all phase windings to guarantee zero breakdown to the frame ground.
• Pulsecoder Serial Handshake Audit: The integrated serial pulse coder is coupled to a dedicated test bench to verify absolute position scaling, memory retention, and error-free serial communication packets.
• Dynamic Load & Thermal Profiling: The unit is locked into a dynamic dynamometer stand, run through aggressive speed profiles up to its rated maximum, and monitored for vibration signatures and thermal stability.

Technical FAQ

Can I substitute this brake-equipped motor with a non-brake version if my axis is horizontal?

Physically the physical envelope matches, but you must alter the axis parameters in the CNC software to reflect the lack of a brake. For vertical or heavily loaded gantry axes, using a non-brake variant is a catastrophic safety violation and will cause immediate dropping upon power off.

What triggers an absolute position loss alarm after installation?

This happens if the backup battery voltage drops to zero while the power and feedback cables are uncoupled during the swap. Once the new motor is wired, you must execute a standard zero-point return routine to re-establish machine home coordinates.

Are the internal bearings field-replaceable?

While technically possible with specialized pullers and thermal induction tools, doing so in the field risks damaging the precision-machined rotor balance and contamination of the pulsecoder. Factory-certified rebuild or exchange is always safer for high-inertia motors.

Does the “-B605” suffix dictate a specific cooling requirement?

The suffix defines the standard integrated 90VDC brake package. Cooling relies primarily on standard natural convection and thermal conduction through the mechanical mounting flange, though enclosure design should prevent stagnant hot air pockets around the rear housing.
