Duelco NST-2004F | Emergency Stop Safety Relay
Product Introduction
When an emergency-stop circuit fails to release a machine as intended, the problem is bigger than a nuisance trip. The Duelco NST-2004F is an industrial safety relay designed to monitor protective devices and control safety-related switching circuits. Installed in a control cabinet, it evaluates the connected input conditions and switches its safety outputs according to the configured reset and monitoring arrangement.
Its practical value comes from supporting multiple safety applications within a compact DIN-rail housing. The NST-2004F provides three normally open safety outputs, an auxiliary signal output, and compatibility with suitable emergency-stop switches, protective-door switches, and light curtains. Published documentation identifies a switching response below 30 ms for the specified emergency-stop condition and a reactivation time of approximately 0.5 seconds. Actual machine stopping time also depends on contactors, drive response, mechanical inertia, and the complete safety circuit.

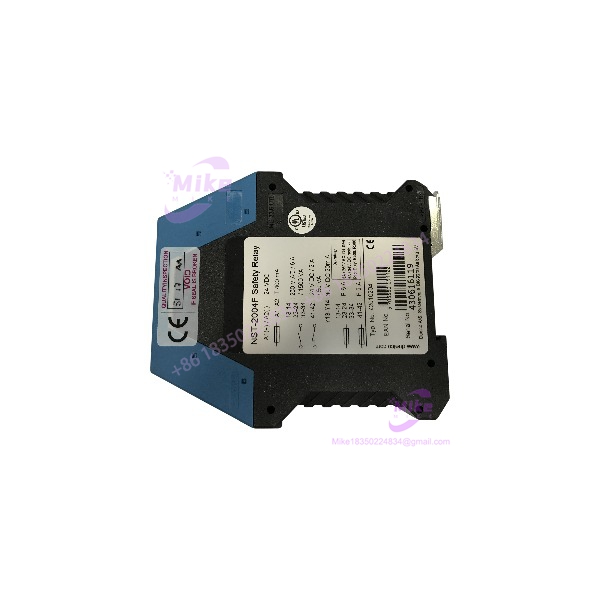

NST-2004F
Key Technical Specifications
- Manufacturer: Duelco
- Model: NST-2004F
- Equipment category: Emergency-stop safety relay
- Supply voltage options: 24 VDC, 8–36 VDC, and 230 VAC variants are documented for the NST-2004 family; confirm the exact version supplied
- Supply voltage tolerance: ±10% for the specified 24 VDC version
- Safety outputs: 3 normally open (NO) contacts
- Auxiliary output: 1 normally closed (NC) signal output or transistor signal output, depending on configuration
- Safety classification: Category 4 / Performance Level e under the applicable system design and validation requirements
- Emergency-stop response time: Less than 30 ms for the specified switching condition
- Reactivation time: Approximately 0.5 seconds
- Maximum switching capacity: 1,380 VA for a resistive load, as specified in the product documentation
- Switching ratings: AC-15, 230 V / 5 A; DC-13, 24 V / 5 A
- Operating temperature: −25°C to +60°C
- Storage temperature: −30°C to +70°C
- Dimensions: Approximately 22.5 × 114.5 × 99 mm
- Mounting: 35 mm DIN rail
- Enclosure protection: IP40 housing; IP20 terminals
- Mechanical life: More than 10 million switching operations under specified test conditions
These figures are based on published NST-2004 family documentation. Verify the nameplate and the correct electrical variant before applying power or connecting safety circuits.
Application Scenarios & Pain Points
Scenario A — Emergency-stop circuit restoration
A packaging machine refuses to restart after an emergency stop. The maintenance technician finds that the safety relay no longer resets correctly. A compatible NST-2004F may be an appropriate replacement after checking the input wiring, reset configuration, supply voltage, and downstream contactors. Replacing the relay without diagnosing the original fault can leave the machine unavailable.
Scenario B — Protective-door monitoring
- Condition: An access door must interrupt hazardous machine operation when opened.
- Without correct monitoring: A wiring fault or improperly configured reset circuit may undermine the intended safety function.
- With a validated installation: The relay monitors compatible protective-device inputs and controls its safety outputs according to the approved circuit design. Verify the required fault detection and restart behavior during commissioning.
Scenario C — Light-curtain integration
The NST-2004 documentation includes connection examples for two-channel light-curtain circuits using OSSD outputs. Before commissioning, confirm the light curtain’s output type, electrical compatibility, wiring arrangement, and reset requirements. Not every light curtain can be connected simply because it has two outputs.
Scenario D — Replacing an aging safety relay
An older machine needs a replacement relay, but the original panel wiring must remain largely unchanged. The NST-2004F may fit the application if its supply voltage, terminal configuration, output ratings, and safety functions match the original design. Check cabinet clearance as well—the unit is approximately 22.5 mm wide, but the surrounding wiring still needs adequate space.
QA & Live Testing SOP
For a safety relay, a power-on check is not enough. The acceptance procedure must confirm the intended safety behavior.
- Identity verification: Check the manufacturer label, full model designation, and rated supply voltage.
- Physical inspection: Examine the enclosure, terminals, mounting clips, and contact areas for damage, corrosion, or signs of unauthorized repair.
- Supply verification: Measure the supply using suitable test equipment and compare it with the exact unit’s rating label.
- Input testing: Verify the emergency-stop channels and compatible protective-device inputs using the manufacturer’s wiring diagrams.
- Reset verification: Test the configured manual, monitored manual, or automatic reset behavior as applicable.
- Output testing: Confirm that all required safety outputs change state correctly and that the auxiliary signal output behaves as specified.
- Response testing: Measure switching response with appropriate instrumentation and compare the result with the applicable documentation.
- Final safety validation: Test the complete machine safety function, including contactors, drive shutdown, fault detection, and restart prevention.
Important: These are recommended inspection and acceptance steps, not a claim that the listed unit has passed testing. Use qualified personnel and an appropriate safety-validation procedure before returning machinery to service.
Field Engineer’s Pitfall Guide
- ❗ Do not guess the supply voltage. The NST-2004F family includes 24 VDC, 8–36 VDC, and 230 VAC versions. Applying the wrong supply can damage the relay or create an unsafe installation. Read the nameplate before wiring.
- ❗ Don’t assume all reset modes are equivalent. Manual reset, monitored manual reset, and automatic reset have different implications for machine restart behavior. Configure the relay to match the approved safety design. Automatic reset must not introduce an unexpected restart hazard.
- ❗ Three safety contacts do not automatically establish Category 4 performance. The overall safety level depends on the complete circuit, input-device architecture, fault detection, external contactors, diagnostics, and validation. A relay’s published classification cannot compensate for a poorly designed machine safety system.
Intent-Driven FAQ
Q1: What is the Duelco NST-2004F safety relay used for?
The NST-2004F monitors emergency-stop devices and compatible machine safety inputs, including protective switches and light curtains. It controls safety-related output contacts according to the connected circuit and configured reset behavior.
Q2: Is the NST-2004F a 24 VDC safety relay?
It is available in a 24 VDC version, but the NST-2004F family also includes other supply variants. Confirm the full order code and nameplate before purchase. Do not assume that every NST-2004F has the same supply requirements.
Q3: How many safety outputs does the NST-2004F have?
The documented configuration provides three normally open safety outputs and one auxiliary signal output. The auxiliary output may be configured as an NC signal output or transistor output, depending on the version and settings. Check the wiring diagram for the exact unit.
Q4: Can the NST-2004F work with a light curtain?
Yes, suitable light curtains with compatible outputs can be used in documented configurations. The manufacturer’s examples include two-channel OSSD wiring. Verify electrical compatibility, input wiring, reset logic, and the required safety performance before commissioning.
Q5: Can I replace another NST-2004 relay with the NST-2004F?
Possibly, but compare the complete model designation, supply voltage, terminal arrangement, reset configuration, and output ratings. The NST-2004 family includes different variants. A shared family name is not sufficient proof of direct interchangeability.
Q6: How quickly does the NST-2004F respond to an emergency stop?
Published family documentation specifies a switching cutoff time below 30 ms for the stated emergency-stop condition. This is not the total machine stopping time. The complete stopping time must account for the drive, contactors, mechanical system, and other safety components.
Q7: What warranty applies to a replacement NST-2004F?
Warranty coverage depends on the seller and the condition of the unit. Confirm the warranty period, return policy, functional-test evidence, and whether defects discovered after installation are covered. Do not assume that a third-party listing carries the manufacturer’s standard warranty.
Final procurement recommendation: The Duelco NST-2004F is a dedicated machine-safety component, not a general-purpose control relay. Before ordering, verify the supply-voltage variant, output configuration, reset behavior, and documented test status. For any safety-related replacement, validate the complete machine circuit before returning equipment to operation.
