Dimetix DLS-C30 | High-Precision Laser Distance Sensor
Dynamic Product Introduction
Measuring long distances and precise positions in harsh industrial environments without physical contact requires robust optical sensors capable of high accuracy and immunity to ambient light. Honestly, the Dimetix DLS-C30 solves this challenge directly by utilizing advanced laser phase-shift or pulse-ranging technology to deliver reliable millimeter-level distance data. This sensor handles high-speed tracking, gantry crane positioning, and warehouse stacker crane navigation reliably without mechanical wear or calibration drift (—though verifying your exact baud rate, interface wiring like RS-422 or SSI, and target reflector plate requirements beforehand is essential). Compared to standard ultrasonic or mechanical alternatives, the Dimetix DLS-C30 ensures exceptional measurement repeatability and dependable performance in demanding outdoor or indoor industrial layouts.

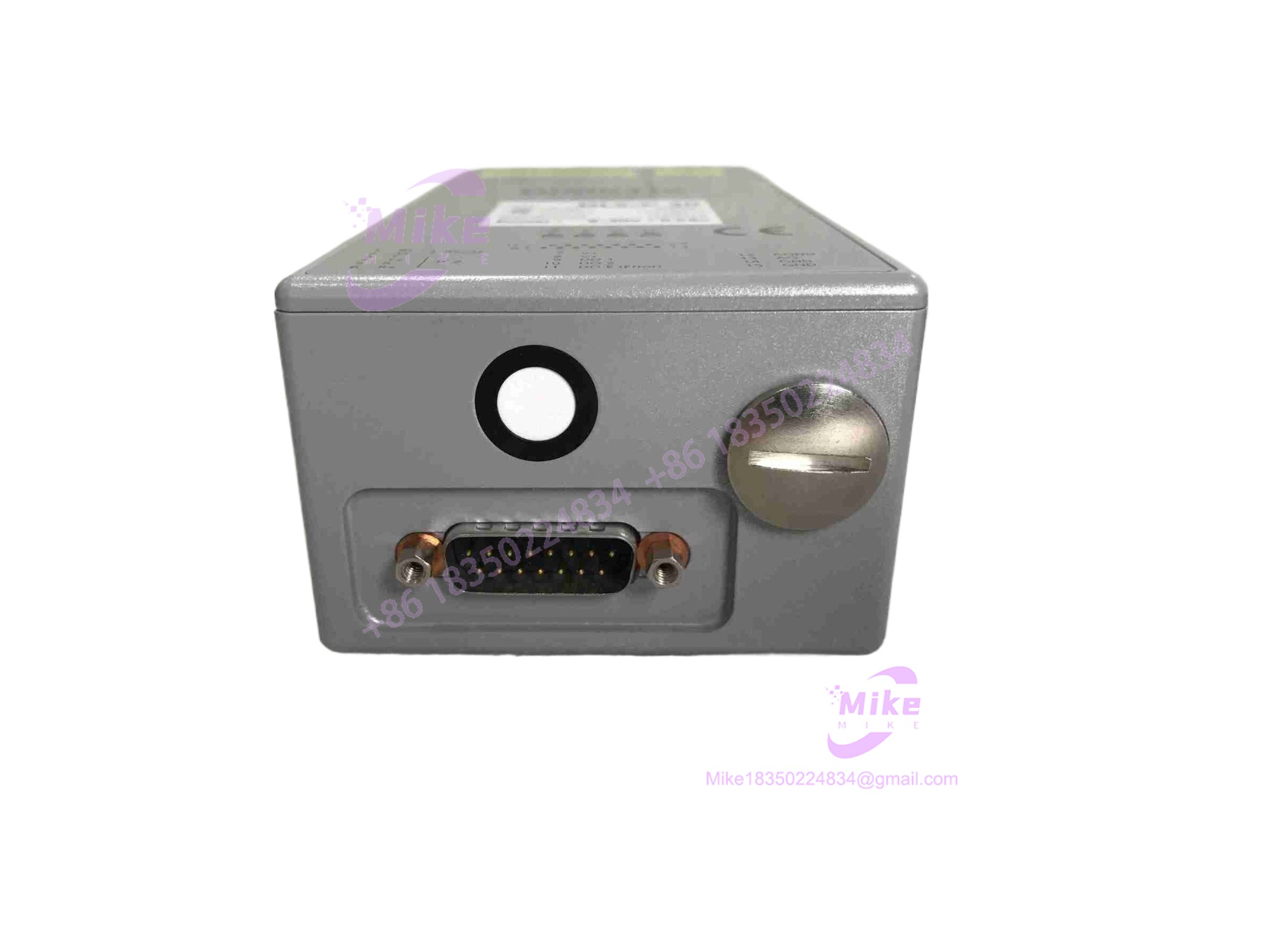

DLS-C30
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Dimetix DLS-C Industrial Laser Sensor Line |
| Model Designation | DLS-C30 (Laser Distance Measuring Device) |
| Measurement Range | 0.05 meters up to 50 meters (extendable with reflective targets) |
| Absolute Accuracy | High precision (typically \pm 1.5 mm to \pm 3.0 mm depending on conditions) |
| Laser Class | Visible red laser (Class 2 eye-safe diode) |
| Communication Interfaces | RS-232, RS-422, SSI, and configurable analog/digital outputs |
| Enclosure / Protection | Rugged industrial die-cast aluminum housing rated to IP65 |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market precision optical sensors requires rigorous bench testing to ensure optical lenses remain clean, internal laser diodes emit at nominal intensity, and data communication ports are fully functional. For every inbound Dimetix DLS-C30 unit, our audit team logs serial numbers against global traceability ledgers, inspects optical glass filters for scratches or dust contamination, and checks rugged metal connector housings for structural wear.
Once cleared, the sensor is mounted onto a calibrated optical test bench. Technicians apply nominal 24 VDC power, verify laser emission alignment, test distance measurement accuracy against verified target plates at varying intervals, and confirm bidirectional communication across serial/SSI channels. The unit is then cleaned, fitted with anti-static and protective optical packaging, and securely prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ Optical Lens Contamination: Allowing dust, oil mist, or moisture to accumulate on the front optical glass lens can severely degrade signal return strength, leading to measurement dropouts or error codes.
❗ Target Reflectivity Requirements: Operating over long ranges without an appropriate high-grade retroreflective target plate can exceed the sensor’s optical threshold and cause erratic readings.
❗ Improper Grounding and Cabling: Failing to use shielded cables for long RS-422 or SSI data runs in heavy electrical environments can introduce noise, resulting in communication timeouts or corrupted data packets.
Intent-Driven FAQ
- What is the primary measurement range of the Dimetix DLS-C30? It measures distances from 0.05 meters up to 50 meters on natural surfaces, and significantly further when paired with appropriate reflective target plates.
- What type of laser class does the use? It utilizes a visible red Class 2 laser diode, which is safe for human eyes during normal installation and alignment procedures.
- What type of warranty covers verified surplus Dimetix sensors? All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- Can the be integrated into PLC control systems? Yes, it features flexible communication options including RS-232, RS-422, SSI, and analog/digital output configurations for seamless PLC integration.
- How do I verify if a replacement unit has been bench-tested? Look for serialized QA certification labels, clean optical lenses, and complete test documentation included with the hardware package.
