Dell D685EF-00 | Precision Workstation Power Supply Core Category

Description

Dell D685EF-00 | Precision Workstation Power Supply Core Category

Dynamic Product Introduction

Replacing a failed power supply unit in enterprise-grade workstations demands robust wattage capacity and strict rail stability to prevent sudden system reboots during heavy rendering or computational tasks. Honestly, the Dell D685EF-00 solves this challenge by providing a direct drop-in 685W power solution engineered specifically for Dell Precision workstation architectures. This unit handles high peak load spikes effortlessly without thermal throttling (—though confirming your exact workstation chassis harness variant is essential). Compared to generic aftermarket power supplies, the Dell D685EF-00 matches proprietary backplane pinouts and mounting dimensions precisely, eliminating cabinet modification hassles during critical repairs.

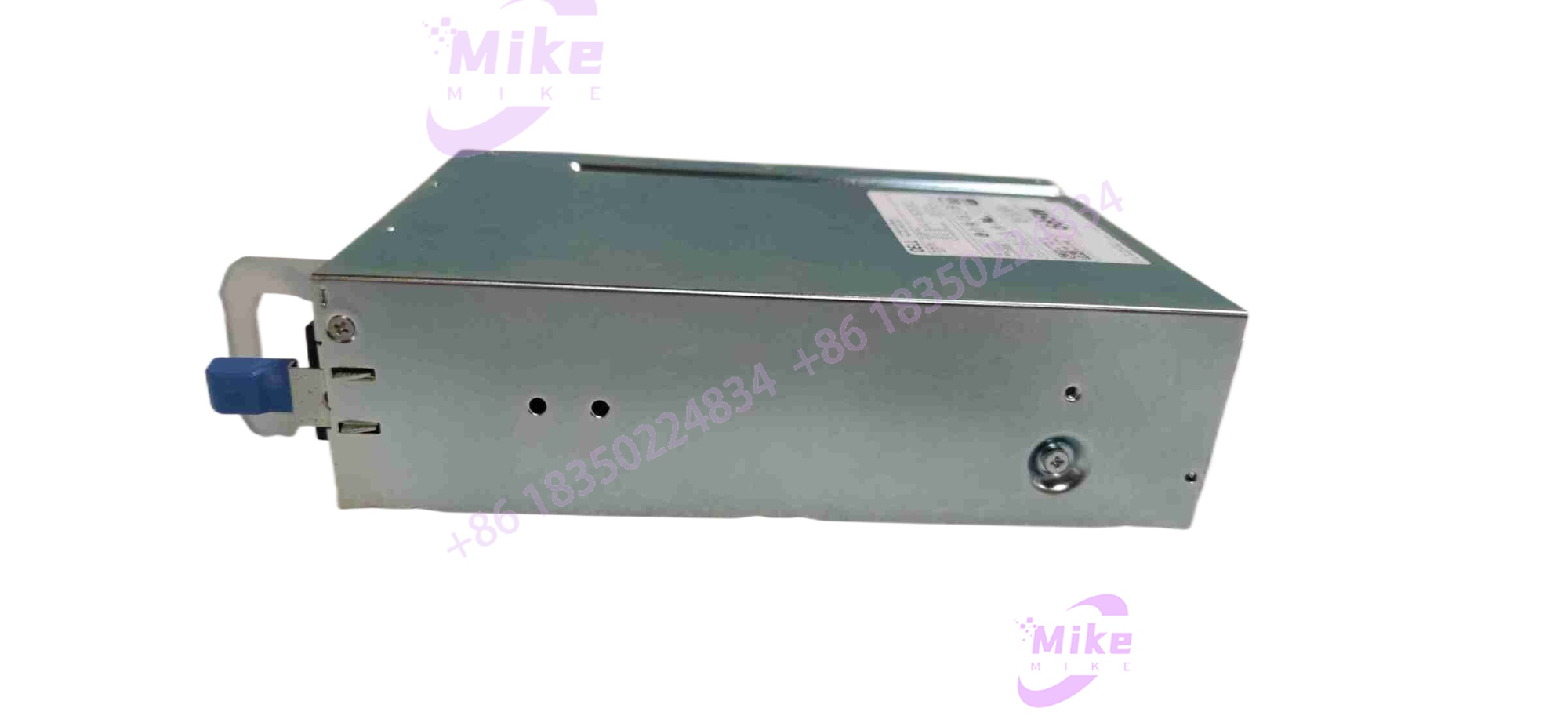

D685EF-00

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market enterprise power supplies requires strict validation of internal electrolytic capacitors and MOSFET power stages to prevent catastrophic voltage spikes. For every inbound Dell D685EF-00 unit, our quality team cross-references part numbers against global OEM traceability sheets and inspects the proprietary output harness connectors for pin deformation or heat stress.

Once cleared, the unit is mounted onto an active Dell Precision test bench simulator. Technicians inject variable AC line voltages, ramp up DC loads across the +12V rails using an electronic load bank, monitor ripple voltage with an oscilloscope, and execute a 24-hour thermal burn-in run at maximum capacity. The unit is then cleaned, fitted with fresh desiccant, and sealed inside an anti-static moisture-barrier bag.

The Field Engineer’s Pitfall Guide

❗ Proprietary Harness Mismatches: Assuming standard ATX power connectors map directly to Dell workstation motherboards will cause severe hardware damage. Always verify that you are using the native proprietary backplane wiring harness built into the D685EF-00 chassis.

❗ Inadequate Dust Clearance: Neglecting to clean accumulated lint and heavy dust out of the internal cooling fan shroud causes premature thermal overload tripping during peak rendering loads. Always blow out workstation chassis vents during a PSU swap.

❗ Unconditioned Input Grid Power: Operating high-draw workstations on unstable grid feeds without a proper line-interactive UPS risks degrading the internal active PFC circuit over time.

Intent-Driven FAQ

• Will replacing the Dell D685EF-00 affect my workstation’s operating system or data?

  No, the power supply unit is hardware-independent regarding data storage; your operating system files and user data remain entirely safe on your hard drives.

• Is this power supply compatible with both the Precision T5600 and T5610?

  Yes, the is widely cross-compatible across these specific Dell workstation generations, but always double-check your chassis service tag.

• What type of warranty covers surplus power supply units?

  Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment load bank and ripple test logs.

• Does this PSU support dual-CPU configurations and high-end GPUs?

  Yes, the 685W output matrix is explicitly engineered to handle multi-processor configurations and certified workstation-class graphics accelerators.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA verification stickers, clean connector pins free of oxidation, and accompanying load test reports included in the packaging.
