Converteam MVC3001-4003A | Motion Control Unit, In Stock Ready
Architect’s Product Breakdown
The Converteam MVC3001-4003A operates as an advanced digital drive controller engineered to manage complex motion control and power conversion tasks across heavy industrial applications. Within legacy Alstom and Converteam automation ecosystems, this specific model processes real-time feedback loops, high-speed switching algorithms, and precise current regulation to drive industrial machinery reliably under demanding load dynamics.
Integrating this hardware model into an existing control cabinet requires rigorous attention to thermal management, DC bus safety, and electromagnetic shielding. Because high-frequency Pulse Width Modulation (PWM) switching generates intense electrical noise, proper bonding of motor power cable shields to the enclosure backplate is essential to prevent control signal corruption. System integrators must also verify that auxiliary power supplies and internal bus capacitors are fully discharged before performing hardware modifications or wiring inspections.

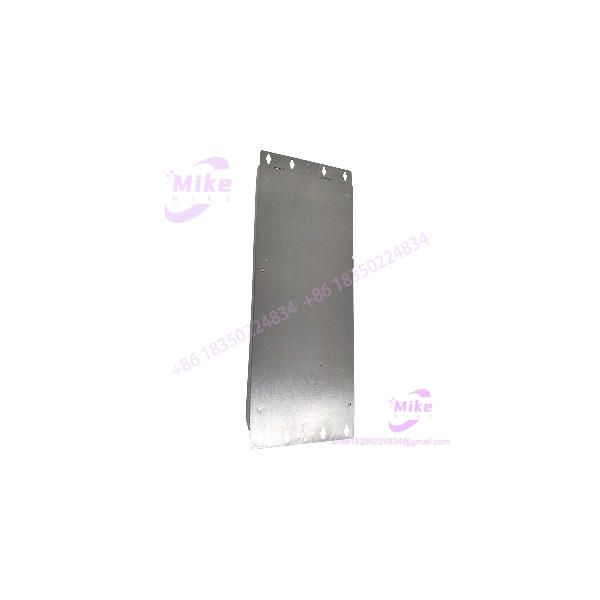

MVC3001-4003A
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Converteam (Alstom / Cegelec heritage) |
| Model Designation | MVC3001-4003A |
| Control Architecture | High-performance Digital Signal Processor (DSP) |
| Switching Technology | Insulated Gate Bipolar Transistor (IGBT) PWM Inverter |
| Input Supply Requirements | Multi-phase AC input or compatible DC bus voltage |
| Feedback Compatibility | Resolver, incremental encoder, or absolute feedback variants |
| Mounting Configuration | Enclosure backplate / Rack mount |
| Ambient Operating Temperature | 0°C to 45°C |
| Enclosure Protection | IP20 Open-style industrial module |
Field Engineer’s Pitfall Guide
- WARNING: Lethal DC Bus Stored Voltage. Never touch power terminals or internal heat sinks immediately after removing input power. The internal bus capacitors retain hazardous voltage for several minutes; always verify zero energy across terminals with a calibrated multimeter before servicing.
- WARNING: Unsuppressed Motor Cable Shielding. Leaving the 360-degree braided shield of the motor cable unbonded at the drive chassis entry point will inject massive electrical noise into the encoder feedback lines, resulting in sudden overspeed trips.
- WARNING: Over-Regeneration Trips. Failing to install or correctly size an external dynamic braking resistor when handling high-inertia overhauling loads will trigger immediate DC bus overvoltage faults and protectively lock out the output stage.
QA & Testing SOP
- Visual & Origin Verification: Inspect the outer chassis and heatsink fins for mechanical damage, verify factory laser nameplate tracking data, and check terminal blocks for oxidation or bending.
- DC Bus Insulation Test: Perform a controlled megger test between power terminals and chassis ground to verify zero insulation breakdown or leakage paths.
- Bench Power-Up & Logic Check: Apply auxiliary control power to the model on an isolated test bench to confirm normal processor initialization, communication handshakes, and status LED illumination.
- Feedback & Stage Verification: Connect a test rig simulation jig to validate signal processing accuracy across speed and position feedback channels.
- Packaging: Seal in an anti-static heavy-duty moisture-barrier bag and pack with high-density shock-absorbing foam inside a rigid exterior container.
Technical FAQ
Can this model be driven directly by a standard single-phase AC supply?
No. The MVC3001-4003A is engineered for multi-phase AC industrial input supplies or dedicated DC bus configurations matching its strict voltage rating.
What causes an immediate overcurrent fault upon enabling the drive output?
An instantaneous overcurrent trip typically points to a short circuit in the motor winding, damaged power cables, or incorrectly tuned current loop parameters.
Does this drive require external cooling fans inside the control cabinet?
Yes. Due to the high thermal dissipation of internal IGBT switching modules, maintaining forced-air ventilation or cabinet climate control is critical to prevent thermal derating.
How do I address software configuration parameters on this legacy unit?
Parameter modifications and diagnostic monitoring require the appropriate Converteam engineering software tool and a compatible communication cable connected to the service port.
