Beijer Electronics E1043 | Operator Panel HMI, In Stock

Description

Beijer Electronics E1043 | Operator Panel HMI, In Stock

Architect’s Product Breakdown

The Beijer Electronics E1043 operates as a robust, mid-to-large-scale human-machine interface (HMI) designed for demanding industrial automation environments. Widely integrated into manufacturing lines, packaging machinery, water treatment plants, and process control systems, this operator panel features a crisp 10.4-inch color TFT display combined with a tactile touch screen and physical function keys to streamline operator interaction.

Because the E1043 belongs to Beijer’s legacy E-Series family (which has transitioned to modern X2 platforms), matching the exact part number (E1043) is critical when replacing damaged units in existing control panels. Swapping a terminal requires extracting the compiled project file via E-Designer software and transferring it to the replacement hardware to ensure exact PLC communication mapping, screen layouts, and tag configurations.

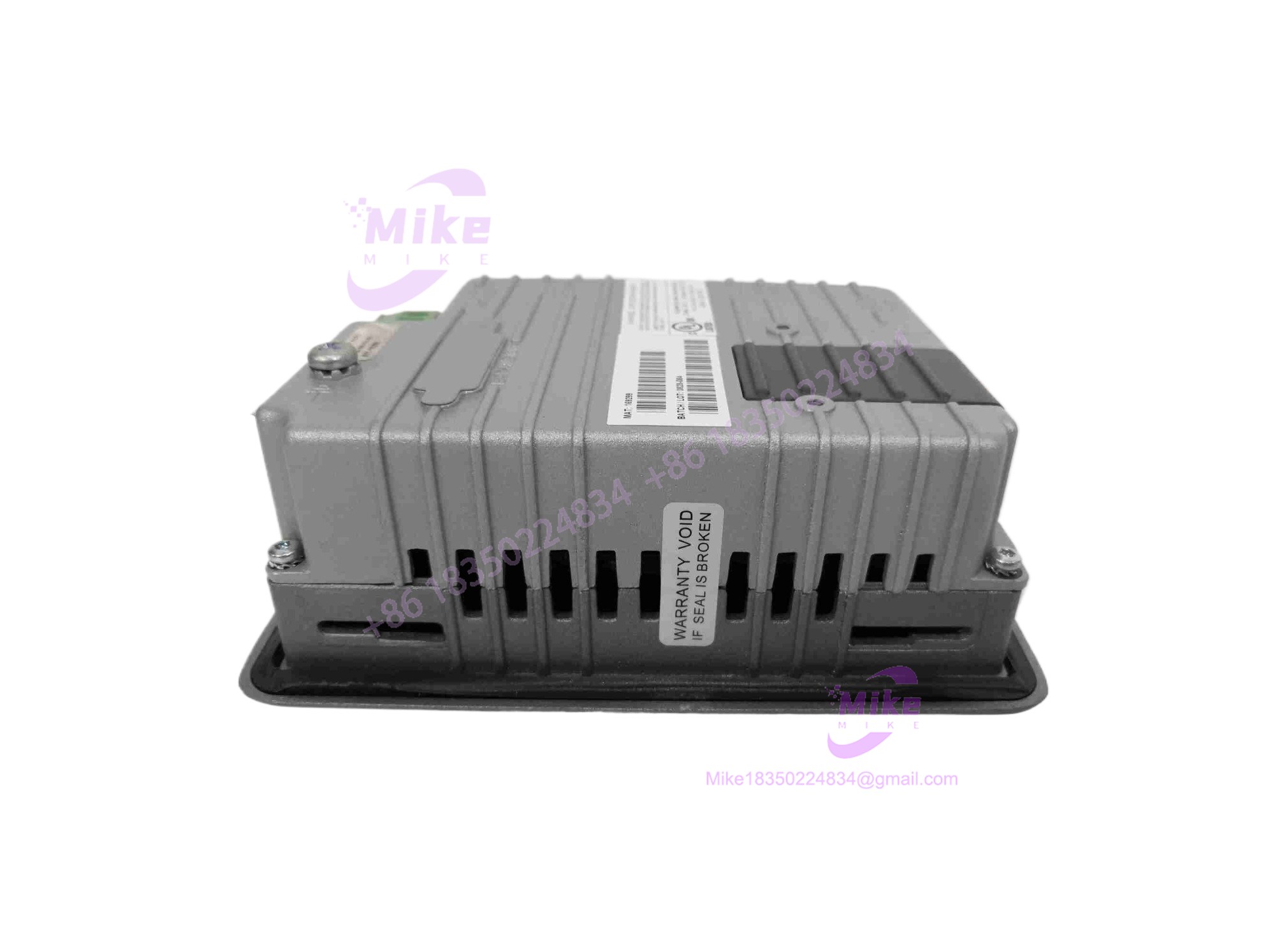

E1043

Key Technical Specifications

Field Engineer’s Pitfall Guide

• WARNING: Loss of Application Project. Replacing an E1043 unit without backing up the original configuration file via E-Designer leaves the new panel blank; always upload the project file from the old HMI or source archives before swapping hardware.
• WARNING: Unstable 24VDC Power Supply. Voltage drops or heavy electrical noise on the 24V DC auxiliary power line can cause the TFT screen to freeze or trigger unexpected panel reboots during industrial operation.
• WARNING: Front-Gasket Seal Compromise. Failing to tighten the panel mounting clamps evenly against the cabinet cutout compromises the front-plate seal, allowing moisture, dust, and washdown fluids to penetrate the enclosure.
• Field Anecdote: I remember an automated packaging line facing extended downtime because a replacement unit was installed without downloading the custom application script, leaving the display blank until engineers could pull the archived project file from backup storage.

QA & Testing SOP

• Visual & Origin Verification: Inspect the plastic enclosure, front membrane keypad, TFT display glass, and rear communication ports for mechanical damage, corrosion, or wear, and verify original Beijer nameplate data.
• Live Test Bench Environment: Mount the HMI onto a test bench cabinet cutout and power it using a regulated 24VDC power supply.
• Communication & Keypad Testing: Connect via the programming port using E-Designer software, verify project upload/download integrity, test button and touch screen responsiveness, and check display backlight clarity.
• Anti-Static & Secure Packaging: Wrap the operator panel in anti-static material and package it securely inside high-density structural foam to protect the display window and protruding ports during transit.

Technical FAQ

What software is used to program and back up the Beijer ? The is programmed and configured using E-Designer software, which handles project transfers, screen edits, tag mapping, and recipe management.

Is the still actively manufactured by Beijer Electronics? No. The E-Series is obsolete and discontinued. Beijer recommends migrating legacy applications to modern X2 series panels using updated configuration software (such as iX Developer) when hardware upgrades are required.

Can an application project from a smaller E-Series panel (like an E200 or E300) be loaded directly onto an ? Project compatibility depends on screen resolution differences; projects typically need to be re-targeted and re-compiled inside E-Designer for the 10.4-inch display layout.

What causes the TFT screen to remain blank upon powering up the unit? A blank screen usually indicates an inadequate 24VDC power supply, a failed internal backlight inverter, or corrupted firmware/application memory requiring a fresh project download.
