Bachmann CM202 | Dual-Channel CANopen Master Communication Module
Dynamic Product Introduction
Stringent industrial architectures require absolute network determinism when coordinating distributed field devices across sprawling plant floors. Shifting communication bottlenecks are easily resolved by slotting a verified Bachmann CM202 module into an active M-series controller chassis.
Unlike basic serial interface cards, this dual-channel processor handles complex telegram structures without taxing the central CPU. Integrating a fresh CM202 unit yields an instant performance boost in network reliability, providing continuous node guarding and seamless handling of up to 128 PDO mappings per channel.

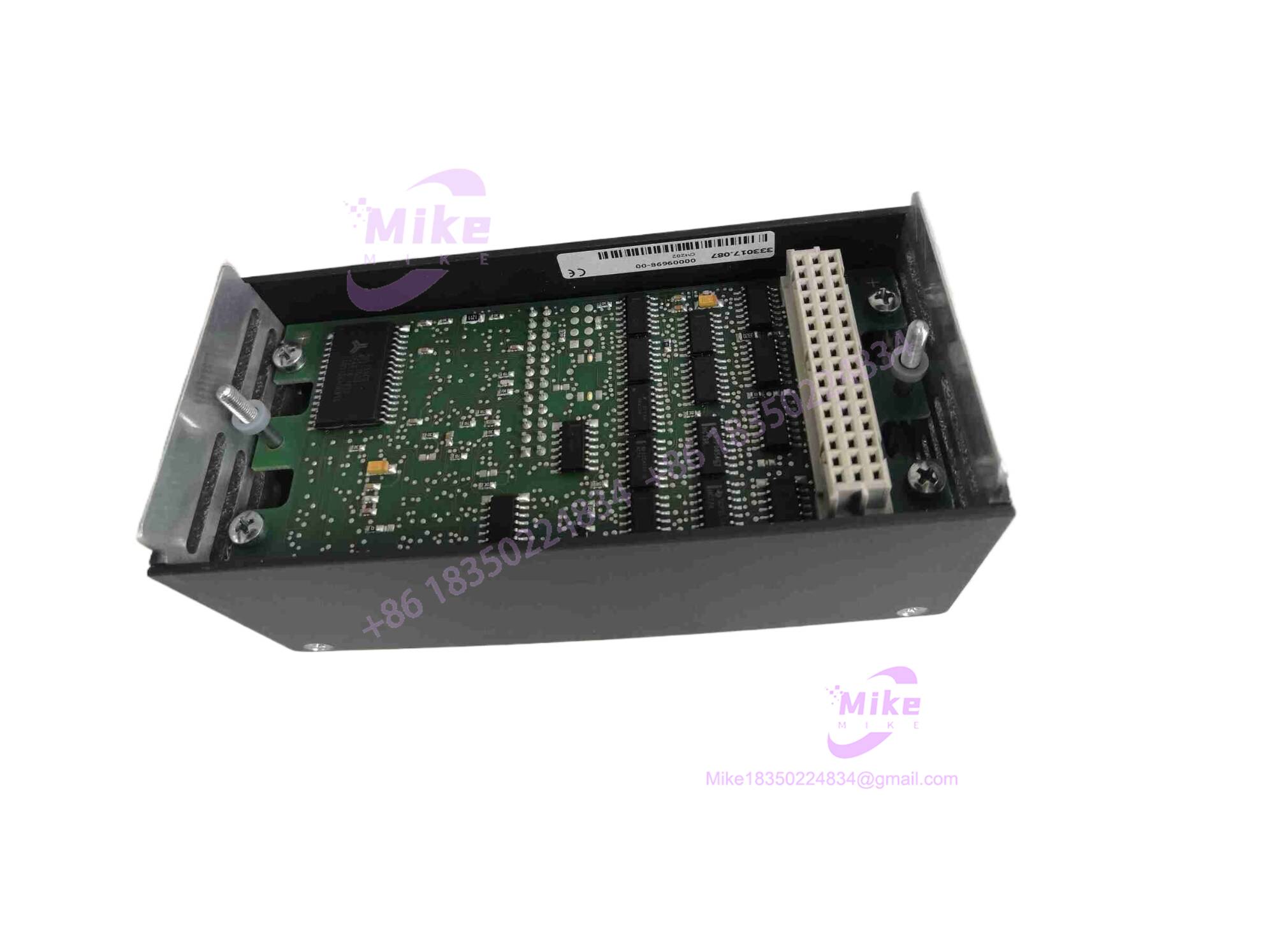

CM202
4. Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Model | CM202 (00009698-00) |
| Manufacturer | Bachmann electronic |
| Supported Protocols | CANopen (CiA DS 301/405), SAE J1939, NMEA 2000 |
| Network Interfaces | 2 independent CAN channels via 9-pin D-sub connectors |
| Transmission Speed | 10 kbaud to 1 Mbaud (software configurable) |
| Node Capacity | Up to 127 nodes per network interface |
| Galvanic Isolation | 500 V DC between channels and system backplane |
| Power Consumption | 320 mA at 5 V DC (backplane supplied) |
| Operating Temperature | -30°C to +60°C industrial environment rating |
| Marine Certifications | DNV GL, LR, ABS, BV compliance |
5. Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing specialized automation hardware from secondary or surplus markets demands an uncompromising quality control pipeline to prevent costly field downtime.
-
Inbound Verification: Every incoming CM202 piece is subjected to high-magnification pin array inspection and laser anti-counterfeit checks against official European factory serialization records.
-
Live Simulation: Technicians mount the interface onto an authentic Bachmann M-series test rack powered by standard system rails to verify bus initialization and backplane handshake routines.
-
Diagnostics: Engineers run full-scale telegram traffic sweeps across both D-sub ports, testing Node Guarding, heartbeat monitoring, and maximum baud rate stability under a 24-hour thermal soak.
-
Final Prep: Units receive complete firmware auditing, static-dissipative wrapping, and vacuum sealing inside heavy-gauge moisture-barrier bags.
6. The Field Engineer’s Pitfall Guide
❗ Bus Termination Oversights: Failing to verify physical 120-ohm terminating resistors at both ends of the CAN trunk line will trigger intermittent frame error spikes on the CM202 ports. I’ve spent hours debugging phantom packet drops on marine skids only to find an un-terminated stub cable left by a previous shift.
❗ Node ID Duplication: Accidentally assigning overlapping node addresses to physical drives or remote I/O drops during a hot swap will freeze the CANopen master state machine. Always verify the EDS configuration files against physical device switches before pushing project changes via SolutionCenter.
❗ Power Rail Loading Limits: Snapping multiple high-current communication options onto a single backplane without tracking total power draw can cause subtle 5V rail voltage sag. Ensure your rack power supply headroom comfortably accommodates the added 320mA nominal draw of the replacement module.
7. Intent-Driven FAQ
Will I lose my network configuration parameters if I replace this CM202 module?
No, system configurations and device descriptions reside in the controller’s main project memory and engineering files. However, you must ensure the replacement module hardware revision matches your software project tree.
Are these units original factory sealed or surplus stock?
Inventory options include both factory-sealed original boxes and rigorously bench-tested surplus hardware. Every single CM202 unit undergoes complete signal validation and thermal stress cycling before dispatch.
Can this module handle maritime communication standards?
Yes, the hardware carries extensive marine type-approvals including DNV GL, LR, and ABS, making it well-suited for offshore drilling rigs and shipboard automation systems.
What software tool is required to configure the communication channels?
Configuration, diagnostics, and real-time telegram monitoring are handled seamlessly through Bachmann’s integrated SolutionCenter engineering environment using standard EDS files.
What kind of warranty comes with a replacement communication card?
All supplied modules include a comprehensive 1-year operational warranty covering component health, D-sub port physical integrity, and bus communication stability.
Are you deploying this CM202 module into a land-based industrial automation skids framework or a marine vessel application?
