Atos E-ME-AC-05F | Electronic Driver
Product Introduction
When a hydraulic machine is still running an older Eurocard control architecture, replacing the valve driver with a vaguely similar amplifier is a bad shortcut. The Atos E-ME-AC-05F is a dedicated electronic driver for proportional hydraulic valves, designed specifically for double-solenoid valves without a transducer. Its Eurocard format makes it suited to legacy control cabinets where card dimensions, wiring, and existing rack architecture matter as much as the electrical function.
The control strategy is equally specific. E-ME-AC-05F provides a standard symmetrical ramp function, while the Atos documentation identifies configuration options involving digital inputs and 24 VDC control signals. The driver also provides an RS232 service port for applicable Atos digital-driver families—but do not assume every function listed in modern Atos documentation applies identically to this older analog card. That distinction matters during a legacy hydraulic retrofit.

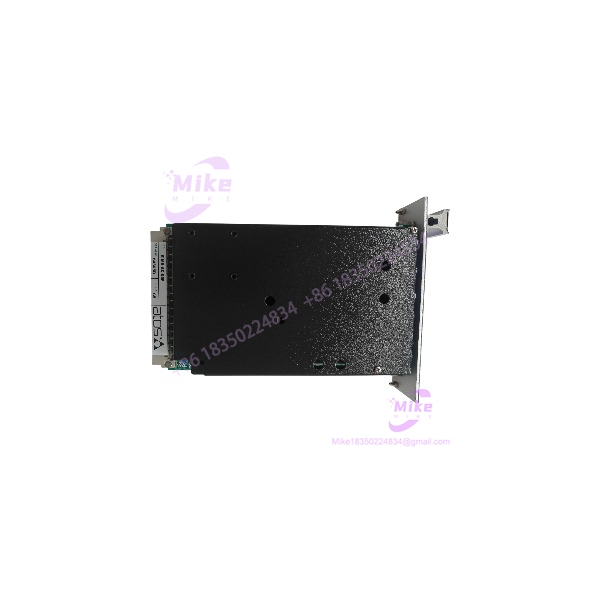

E-ME-AC-05F
Key Technical Specifications
- Manufacturer: Atos
- Part Number: E-ME-AC-05F
- Product Type: Electronic hydraulic valve driver
- Physical Format: Eurocard
- Primary Application: Proportional hydraulic valve control
- Valve Type: Double-solenoid proportional valve
- Transducer: Not required / designed for valves without transducer
- Ramp: Standard symmetrical ramp
- Control Architecture: Analog electronic driver
- Input Configuration: Atos documentation specifies configurable digital inputs for related driver configurations.
- Service Interface: Atos documentation describes an RS232 service interface for its digital-driver programming ecosystem; applicability should be verified against the exact hardware revision.
- Manufacturer Status: Discontinued
- Suggested Modern Replacement: E-BM-AS-PS-05H, subject to application and configuration verification.
- Approximate Listed Weight: 0.49 kg
Application Scenarios & Pain Points
Legacy Hydraulic Press Control
A production press may have perfectly serviceable hydraulics while its original electronic driver becomes the weak link. Replacing the entire hydraulic control architecture simply because the E-ME-AC-05F is an older card can create unnecessary commissioning work.
A like-for-like legacy replacement keeps the existing valve interface and cabinet architecture intact—assuming the valve, command signal, supply arrangement, and card revision all match.
With vs. Without the Correct Valve Driver
With the correct E-ME-AC-05F:
- Existing proportional valve architecture can be retained.
- Double-solenoid proportional-valve control is supported.
- The standard symmetrical ramp characteristic remains part of the intended application.
- The Eurocard mechanical format fits legacy equipment designed around this card style.
With a generic amplifier:
The electrical signals may look similar on paper while the ramp behavior, valve current characteristics, connector assignment, or control polarity differs. That is where “almost compatible” becomes an expensive commissioning problem.
Obsolete Machine Controls
E-ME-AC-05F is explicitly listed as discontinued by the manufacturer. That makes it relevant for MRO teams supporting older hydraulic presses, machine tools, injection equipment, test systems, and industrial hydraulic power units where redesigning the control cabinet is not economically attractive.
QA & Live Testing SOP
For Atos E-ME-AC-05F, our inspection sequence should start with the part number—not the seller’s description.
- Verify the E-ME-AC-05F marking and manufacturer identification.
- Inspect the Eurocard PCB, edge connector, terminal/interface area, adjustment components, and enclosure for oxidation or physical damage.
- Check for evidence of overheating, cracked solder joints, contamination, or previous repair work.
- Verify the exact hardware revision before declaring interchangeability.
- Power testing should be performed using a controlled laboratory supply and current-limited test setup.
- Verify command-input behavior and output response against the applicable Atos technical documentation.
- Where the appropriate valve simulator or test fixture is available, verify proportional output behavior and ramp response.
- Check the service interface only when the specific revision supports the applicable Atos diagnostic/programming procedure.
- Package the electronics in ESD-safe material with mechanical cushioning for transport.
One important point: Atos states that the RS232 port on applicable drivers is not isolated. Do not casually connect a laptop or USB-to-serial converter to an energized industrial cabinet without checking the grounding arrangement first.
Field Engineer’s Pitfall Guide
❗ Do not assume E-ME-AC-05F and E-BM-AS-PS-05H are plug-and-play equivalents.
Atos lists the E-BM-AS-PS-05H as a suggested replacement, but a modern replacement requires application verification. Connector arrangement, electrical characteristics, valve type, and configuration must be checked before substitution.
❗ Check whether the valve has a transducer.
The E-ME-AC-05F is specifically described for proportional valves without a transducer. If the installed valve uses integrated position feedback, stop and verify the required Atos driver architecture before energizing the replacement.
❗ Do not copy modern configuration instructions blindly.
Atos documentation covers multiple generations of electronic drivers, including E-ME and newer E-BM hardware. Digital-input assignments and configuration procedures can differ by model and option. Match the instructions to the actual part number and revision on the card.
Intent-Driven FAQ
Q: What is the Atos E-ME-AC-05F used for?
A: It is an electronic driver for double-solenoid proportional hydraulic valves without a transducer. It is supplied in Eurocard format and is intended for legacy Atos proportional-valve control applications.
Q: Is E-ME-AC-05F a PLC module?
A: No. It is a hydraulic valve electronic driver/amplifier, not a conventional PLC CPU, I/O card, or communication module. Its job is to control the proportional valve rather than execute a general-purpose PLC program.
Q: Is the Atos E-ME-AC-05F discontinued?
A: Yes. Current industrial parts references identify E-ME-AC-05F as discontinued by the manufacturer. A suggested replacement is E-BM-AS-PS-05H, but replacement suitability must be checked against the complete hydraulic application.
Q: Does E-ME-AC-05F work with a proportional valve that has a transducer?
A: Not as the intended application. The published product description specifically identifies the E-ME-AC-05F for proportional valves without a transducer. If your valve has position feedback, verify the correct Atos driver family before ordering.
Q: Does E-ME-AC-05F use a symmetrical ramp?
A: Yes. The published specification identifies a standard symmetrical ramp configuration. This affects how the proportional valve responds to command changes, so it should be considered during a replacement or retrofit.
Q: What is the replacement for Atos E-ME-AC-05F?
A: Atos documentation identifies E-BM-AS-PS-05H as a suggested replacement. Do not treat that statement as proof of mechanical or electrical drop-in compatibility; confirm the valve, command interface, supply, configuration, and cabinet wiring first.
Q: Is a used E-ME-AC-05F worth buying for a machine repair?
A: It can be, particularly when the machine depends on an obsolete Eurocard architecture and downtime is more expensive than sourcing a legacy card. Current secondary-market listings show both new and used units, but condition varies substantially, so request photographs of the actual nameplate and board before purchasing.
Procurement note: The Atos E-ME-AC-05F is a legacy hydraulic control component. For a serious replacement order, match the complete part number and application rather than purchasing based only on the phrase “Atos electronic amplifier.”
