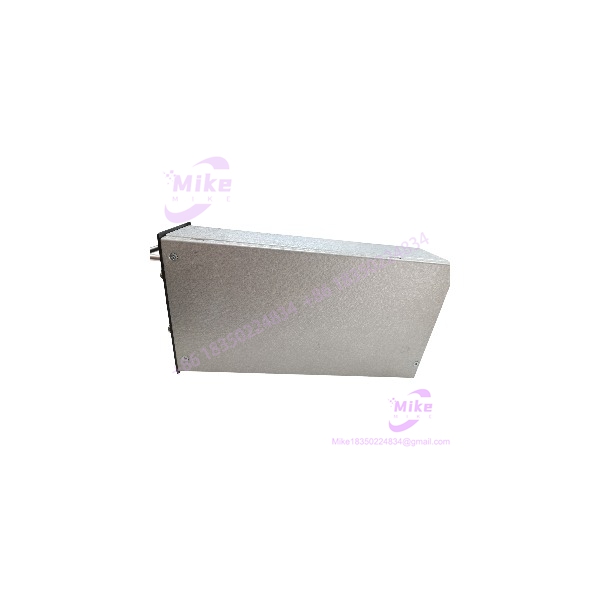

APC GES501W48V0180 | 48VDC 10.5A Rectifier Power Supply
Product Introduction
The APC GES501W48V0180 is a 48 VDC rectifier module designed to convert facility AC power into regulated DC power for APC equipment. Its electrical identification is straightforward: 115/230 VAC input, 50/60 Hz, and a 48 VDC output rated around 10.5 A, placing the unit in the 500 W power class.
This is an important distinction for replacement work. The GES501W48V0180 is not simply a generic 48 V switch-mode power supply that can be substituted by matching voltage and wattage. It is associated with APC cooling-system power architecture, and field replacement should account for mechanical mounting, connector arrangement, airflow, protection behavior, and the host equipment’s DC distribution requirements. Records identify the module with APC ACRD100/201 and related cooling equipment applications.
For procurement, the GES501W48V0180 designation should be checked against the physical nameplate before installation. Units are also encountered under the 920-0082 and 920-0082B identifiers, so confirming the complete label is preferable to relying on an abbreviated marketplace description.
GES501W48V0180
Key Technical Specifications
- Model: APC GES501W48V0180
- Associated APC Part Number: W920-0082 / 920-0082B
- Power Category: AC/DC rectifier power supply
- Input Voltage: 115/230 VAC nominal
- Input Frequency: 50/60 Hz
- Input Current: Approximately 5.2 A at 115 VAC / 2.6 A at 230 VAC
- DC Output Voltage: 48 VDC
- Output Current: 10.5 A
- Output Power Class: 500 W
- Primary Application: APC cooling equipment
- Cooling: Forced-air construction; inspect fan condition before deployment
- Installation: Equipment-specific module; verify mechanical and electrical interface before substitution
The 48 V × 10.5 A rating corresponds to 504 W mathematically, which is consistent with the commonly stated 500 W class for this rectifier. Marketplace and surplus records independently identify the unit as a 500 W, 48 VDC rectifier.
Global Sourcing & Live-Test SOP
A used APC GES501W48V0180 should be treated as a power-electronics component, not as a simple plug-and-play commodity.
1. Inbound Verification
- Photograph the complete nameplate before removing packaging.
- Confirm and the associated 920-0082/W920-0082 identification where applicable.
- Record serial number, manufacturing markings, revision information, and visible date codes.
- Inspect AC input terminals, DC output connections, mounting points, and connector housings for heat damage.
- Check the fan, vents, and internal airflow path for dust accumulation.
- Look for swollen capacitors, discoloration, cracked insulation, corrosion, or evidence of previous overheating.
- Verify that the unit has not been modified or repaired with non-OEM components.
2. Electrical Bench Test
Before applying mains power, perform a visual and electrical inspection.
- Verify protective-earth continuity where applicable.
- Check for obvious input-to-chassis and output-to-chassis faults according to the appropriate service procedure.
- Apply AC through a properly protected test arrangement.
- Confirm startup behavior without immediately attaching the production DC load.
- Measure DC output using a calibrated digital multimeter.
- Confirm approximately 48 VDC before proceeding to load testing.
- Monitor input current and output stability as load is progressively increased.
For a service bench, a programmable DC load is preferable to testing only with a small resistive load. A unit that produces correct no-load voltage can still have degraded switching components, thermal problems, or output regulation issues.
3. Loaded Simulation
Where the test setup permits it, progressively load the rectifier toward its documented operating range.
Monitor:
- DC output voltage
- Output current
- AC input current
- Cooling-fan operation
- Audible switching or bearing noise
- Connector and terminal temperature
- Output ripple
- Thermal behavior
A Fluke-class true-RMS multimeter is useful for basic voltage/current verification, but oscilloscope measurements should be used when output ripple or switching instability is suspected.
4. Thermal Run
For inventory intended for critical equipment, perform an extended heat run rather than declaring the module good after a five-minute power-up.
A practical QC procedure is:
- Initial no-load verification
- Progressive load test
- Sustained operating-load test
- Thermal inspection
- Shutdown and cool-down
- Second startup verification
A 24-hour burn-in can be used when the customer’s application requires extended screening. Record the test load, measured voltage, current, ambient temperature, and any abnormal fan behavior.
5. Final Procurement Preparation
Record:
- Exact model designation
- 920-0082/920-0082B relationship if shown on the unit
- Serial number
- Test date
- Input voltage used during testing
- Maximum test load
- Measured output voltage
- Observed thermal condition
- Physical condition
- Any replacement components or repairs
Seal the unit in ESD-appropriate packaging and protect the AC/DC terminals from mechanical impact during international shipment.
Field Engineer’s Pitfall Guide
❗ Warning 1 — Do Not Match Only the 48 V Rating
A generic 48 VDC, 500 W power supply is not automatically an electrical or mechanical replacement for the .
The APC module is associated with dedicated cooling equipment, so the replacement decision must include connector pinout, mechanical fit, airflow direction, protection behavior, and host-system requirements. A supply can produce the correct 48 V on a bench and still be unsuitable for the installed equipment.
❗ Warning 2 — Verify 115/230 VAC Configuration Before Energizing
The documented input is 115/230 VAC, 50/60 Hz, with approximately 5.2/2.6 A corresponding to those nominal input voltages.
Do not assume that every used unit has the same external configuration simply because the model number matches. Inspect the nameplate and input arrangement first. This matters particularly when importing surplus equipment between regions with different mains standards.
❗ Warning 3 — Cooling Hardware Is Part of the Reliability Equation
This is a high-power rectifier in a relatively compact enclosure. At approximately 500 W output, heat management cannot be treated as an afterthought.
Before installation, inspect the fan and airflow passages. Listen for bearing noise during the live test, check for excessive dust, and monitor temperature during sustained loading. A rectifier that passes a cold-start voltage check but overheats after extended operation should not be released as production-ready.
Intent-Driven FAQ
Is the APC a 48 VDC power supply?
Yes. It is an AC-to-DC rectifier module with a documented 48 VDC output and approximately 10.5 A output rating, placing it around the 500 W power class.
What is the input voltage of the ?
Available technical records identify 115/230 VAC, 50/60 Hz operation, with approximately 5.2 A at 115 VAC and 2.6 A at 230 VAC. Verify the actual nameplate and input configuration on the specific unit before energizing it.
Is 920-0082 the same product designation?
The is commonly cross-identified with W920-0082 and 920-0082B in equipment and surplus records. Because revision suffixes can matter during replacement, compare the complete physical label rather than assuming that every 920-0082 reference represents an identical revision.
What equipment is the associated with?
Available records identify it as a rectifier used with APC cooling equipment, including ACRD-series equipment.
