Kollmorgen CP310250 Module | Factory Sealed & Verified Inventory
Dynamic Product Introduction
Demanding multi-axis automation and robotic machinery require servo drives capable of delivering instantaneous torque loops and precise trajectory tracking. When legacy drive hardware faults or experiences internal power stage degradation, installing a verified Kollmorgen / Servotronix CP310250 servo unit restores absolute motion precision to the production line.
Engineered specifically for high-load industrial environments, this advanced drive handles rigorous acceleration and deceleration profiles without thermal throttling. Deploying a fresh CP310250 module ensures seamless communication handshakes, stable feedback loop processing, and uninterrupted machine throughput.

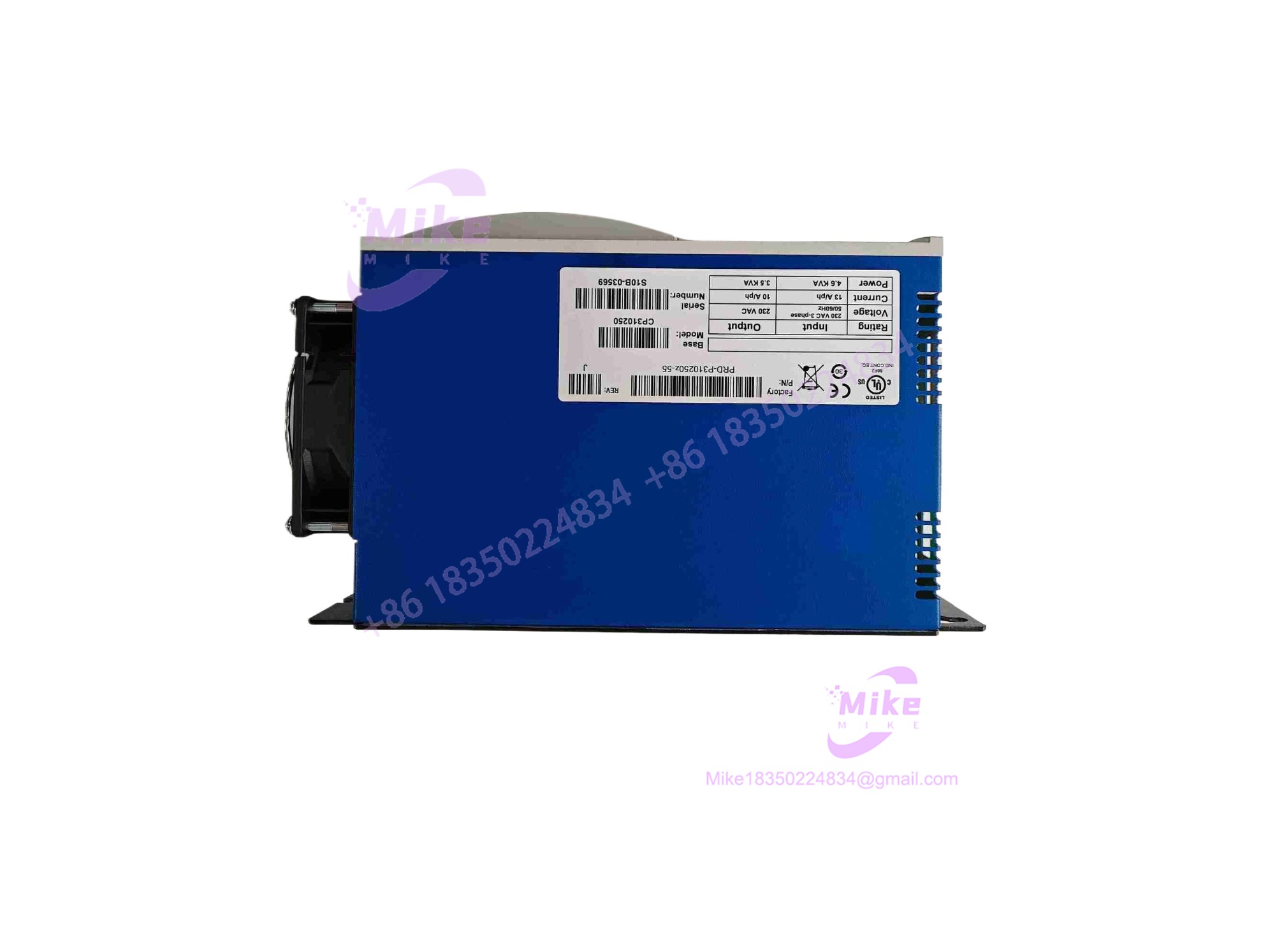

CP310250
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Model | CP310250 (PRD-P310250 series variant) |
| Manufacturer | Kollmorgen / Servotronix |
| System Compatibility | Industrial servo motion architectures and automated production cells |
| Input Voltage | 230V AC nominal supply range |
| Output Current | Approx. 13 A/phase maximum current delivery |
| Power Rating | 4.6 kVA power handling capacity |
| Control Modes | Position, velocity, and torque closed-loop execution |
| Operating Temperature | 0°C to +40°C / +45°C standard industrial panel threshold |
| Enclosure Protection | IP20 cabinet-mount electronic card format |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring legacy or surplus industrial servo drives through secondary markets requires an exhaustive verification workflow to guarantee component longevity and power stage stability.
- Inbound Verification: Incoming CP310250 batches undergo high-magnification optical inspection of power terminal blocks, control connector pins, and electrolytic capacitor health checks against factory specifications.
- Live Simulation: Technicians mount the drive onto a dynamic test fixture linked to a matched servomotor load and energized via a variable AC supply to verify pre-charge and rectifier behavior.
- Diagnostics: Engineers execute full-scale software tuning sweeps, validating encoder feedback tracking, current loop linearity, and running a 24-hour thermal soak load test.
- Final Prep: Units receive comprehensive firmware revision logging, static-dissipative wrapping, and custom foam-lined vacuum sealing inside heavy-gauge moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ DC Bus Capacitance and Pre-Charge Hazards: Failing to allow adequate discharge time after cutting power before touching terminal blocks can result in severe electrical shock from residual high-voltage DC bus charge. Always verify zero voltage with a meter prior to servicing.
❗ Inadequate Heat Dissipation Clearance: Mounting the CP310250 inside a cramped enclosure without maintaining proper vertical airflow clearance will trigger thermal over-temperature faults under heavy loads. Always verify cabinet cooling fans are operational.
❗ Feedback Shield Grounding Omissions: Leaving encoder or resolver cable shields ungrounded at the designated chassis clamp will inject high-frequency electrical noise into the control loops, causing erratic motor jitter. Always secure shield drains cleanly.
Intent-Driven FAQ
Will swapping this drive require downloading a new configuration file?
Yes, servo tuning parameters, gain settings, and commutation offsets are stored within the drive’s memory structure. When replacing a unit, you must upload your machine’s backup parameter file (via the manufacturer’s configuration software) to match your motor mechanics.
Are these units original factory sealed or surplus stock?
Sourced inventory pools span both original factory-sealed packaging and fully certified, tested surplus hardware. Every single unit undergoes rigorous bench validation prior to dispatch.
Can this drive handle third-party servomotors?
While optimized for companion motor lines within the Kollmorgen/Servotronix ecosystem, compatibility depends on matching feedback types, pole counts, and electrical winding curves. Always cross-reference motor specs before pairing.
What software tool is used to configure and tune this drive?
Drive configuration, tuning, and diagnostic monitoring are typically managed via dedicated PC software suites provided by the manufacturer (such as CDHD-compatible tuning tools).
What kind of warranty accompanies a replacement servo drive?
All supplied units carry a comprehensive 1-year operational warranty covering internal power stage health, control board stability, and communication port integrity.
Are you integrating this drive into an active multi-axis machine tool or keeping it on hand as a critical hot-spare for your production line?
