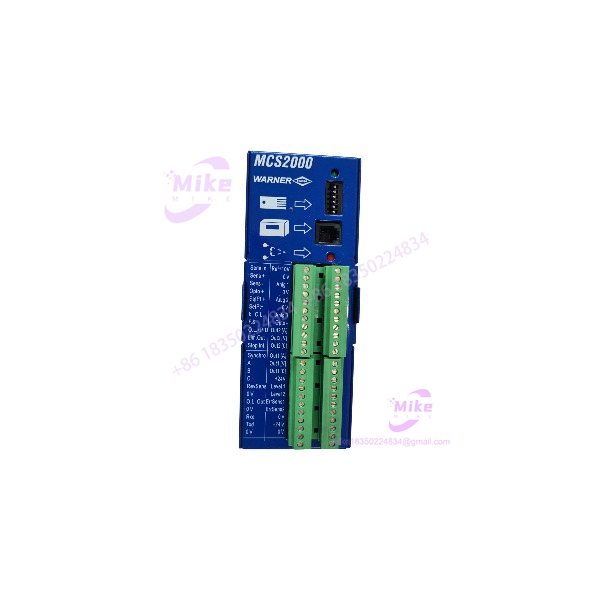

Danaher Motion MCS2000-ECA | Digital Tension Controller
The MCS2000-ECA is a specialized digital controller for industrial tension-control systems, particularly machinery handling continuous web or strip material. Warner Electric documentation describes it as a digital tension controller capable of open-loop, closed-loop and combined control operation.
That distinction is important for procurement. The MCS2000-ECA is not simply a conventional servo amplifier. It performs the tension-control calculations, signal processing, setpoint management and output functions, while companion MCS2000 hardware can provide the power stage for electromagnetic brakes or other tension-control devices.
The Warner Electric catalog identifies MCS2000-ECA as P/N 6910-448-096. The same catalog family includes separate MCS2000-DRV and MCS2000-PSDRV units, reinforcing the distinction between the ECA controller and the associated power/driver hardware.
Current industrial-part references also identify 6910-448-096 as the part number corresponding to -ECA and classify the component as discontinued by the manufacturer.
For a maintenance RFQ, the clean identification is therefore:
Warner Electric -ECA — P/N 6910-448-096
If a seller describes it as a “Danaher Motion” component, retain that marketplace description but verify the physical nameplate and original Warner Electric part number before purchasing.
MCS2000-ECA
Key Technical Specifications
- Model:
- Part number: 6910-448-096
- Product family: Modular Control Components
- Controller type: Digital tension controller
- Supply voltage: 24 VDC
- Analog inputs: 2
- Analog input resolution: 12-bit ADC / 4096 steps
- Standard analog input range: 0–10 VDC
- Sensor input range: ±10 VDC
- Minimum sensor differential: 4 VDC
- Analog outputs: 2
- Analog output range: 0 to ±10 VDC or 0–20 mA
- Analog output adjustment: Software adjustable
- Open-loop signal output: 0–10 VDC, 10 mA maximum
- Reference output: 10 VDC, 10 mA maximum
- Sensor output: ±15 VDC, 100 mA maximum
- Digital outputs: 2 binary outputs for sensor-error indication
- Communications: RS-232
- Programming: PC/PLC through RS-232, Windows software and dedicated programming hardware
- Memory card: Stores up to two complete programs
- Controller memory: Stores one complete program
- Control modes: Open loop, closed loop and combined open-plus-superimposed closed loop
- PID control: Supported
- Automatic sensor scaling: Supported
- External setpoint change: Supported
- Integral reset: Supported
- Sensor polarity inversion: Supported
Warner’s technical documentation provides the core electrical and functional specifications above.
System Architecture
The should be understood as the control layer of the tension system.
A typical arrangement is:
Tensior → → driver/amplifier → electromagnetic brake or clutch
Warner’s product documentationthe alongside -DRV, -PSDRV, -PSDRVH and other components.
This matters when diagnosing a machine fault.
If the brake is not producing the expected torque, the ECA may not be the failed component. The problem could instead be the driver, brake, clutch, sensor, wiring, power supply or configuration.
Likewise, replacing an ECA with a different controller without transferring the original tension parameters can turn a hardware replacement into a full commissioning exercise.
Control and Programming Functions
The provides considerably more than a fixed analog threshold function.
Documented functions include:
- Open-loop tension control
- Closed-loop tension control
- Superimposed closed-loop operation
- Automatic sensor scaling
- External setpoint adjustment
- Programmable output functions
- Sensor polarity inversion
- Integral reset
- Sensor-error indication
- Digital input functions
- Analog output control
- PID parameter adjustment
- RS-232 communications
- Memory-card program storage
The controller can display operating parameters such as setpoint, sensor value, analog inputs, output values and sensor-error information through the applicable programming/display equipment.
For an existing production machine, these configuration parameters can be more valuable than the hardware itself.
Memory and Configuration Retention
The has a particularly important feature for legacy-machine procurement: removable program memory.
Warner documentation states that the controller stores one full program internally, while the memory card can store two full programs.
Therefore, when buysed , ask the seller whether the original memory card is included.
A replacement controller with no configuration data may still be electrically correct but require the machine builder or controls engineer to reconstruct:
- Sensor scaling
- Tension setpoint
- PID parameters
- Output scaling
- Control mode
- Sensor polarity
- Digital-input assignments
- Limit behavior
- Other machine-specific settings
For a running legacy line, preserving the original configuration can materially reduce commissioning time.
Global Sourcing & Incoming-Test SOP
The eBay listing should be treated separately from the OEM technical specification. A marketplace seller’s description does not establish that the specific controller has passed a controlled tension-system test.
Recommended incoming procedure:
- Photograph the complete front label and all identification markings.
- Confirm .
- Confirm 6910-448-096 where marked.
- Record serial number and revision information.
- Inspect the enclosure for cracks, impact damage and heat discoloration.
- Inspect all terminal blocks and connectors.
- Check the RS-232 connector.
- Inspect the memory-card socket.
- Determine whether a memory card is included.
- If a memory card is included, preserve its original contents before modifying the controller.
- Inspect for corrosion, contamination and moisture exposure.
- Apply a controlled 24 VDC supply.
- Confirm normal startup and power indication.
- Verify the analog inputs using calibrated voltage sources.
- Verify the tension-sensor input using an appropriate ±10 V simulator.
- Verify the ±15 V sensor supply.
- Test both analog output channels.
- Verify digital input functions.
- Check sensor-error indication.
- Verify RS-232 communication using compatible programming equipment.
- If available, load the controller into a controlled test arrangement.
- Verify open-loop output behavior.
- Simulate closed-loop tension feedback and verify controller response.
- Document configuration and test results.
- Package in ESD-protective material for shipment.
Important: This is a recommended incoming inspection/test procedure. It does not mean the specific marketplace unit has been tested.
Field Engineer’s Pitfall Guide
1. Don’t confuse the ECA with the -DRV.
The is the programmable tension controller. Warner lists the -DRV, P/N 6910-448-092, separately as a dual-channel 24 VDC driver for electromagnetic brakes.
If the failed hardware is actually the power driver, purchasing an ECA will not correct the fault.
2. Preserve the original program before changing hardware.
The ECA supports internal program storage and an external memory card capable of holding two programs.
If the existing controller is still accessible, extract and document its configuration before removal.
3. Verify the sensor signal, not just the connector.
The controller’s tension-sensor input is specified as ±10 VDC with a minimum 4 V differential range. Verify the actual sensor output, polarity, excitation and scaling before declaring the controller defective.
A bad tension transducer can produce symptoms that look exactly like a controller problem.
FAQ
A: It is a digital programmable tension controller for industrial web/material handling systems. It supports open-loop, closed-loop and combined tension-control operation.
Q: What is the part number?
A: 6910-448-096 is the documented Warner Electric part for .
Is a servo drive?
A: It is sometimes categorized as “servo drive/servo control” by aftermarket suppliers, but Warner Electric’s technical documentation identifies it specifically as a digital tension controller. It works with separate driver/power components.
Q: What voltage does it require?
A: The documented controller supply is 24 VDC.
Q: How many analog inputs and outputs are provided?
The has two analog inputs and two analog output channels, with 12-bit ADC/DAC resolution.
Q: Does it support closed-loop tension control?
A: Yes. Warner specifically documents open-loop, closed-loop and “open plus superimposed closed-loop” operation.
Q: Can it store the machine program?
A: Yes. The controller stores one full program, while the optional memory card can store two full programs.
Is still manufactured?
A: Current industrial-part references identify it as discontinued by the manufacturer. It remains available through surplus, repair and legacy-industrial suppliers.
Q: What should I request from the eBay seller?
A: Request clear photographs of the nameplate, confirmation of , serial/revision information, power-up evidence, and whether the original memory ca
