Honeywell MC-TDPR02 | 24 VDC Digital Input Power FTA
Product Introduction
The MC-TDPR02 is not a conventional digital-input card. It is a Field Termination Assembly used for 24 VDC digital-input power distribution within the Honeywell Process Manager / Advanced Process Manager hardware family. Honeywell documentation identifies model MC-TDPR02 with CE-compliant part number 51304425-175, while the corresponding non-CE number is 51304425-150.
That distinction matters during a legacy rack repair. The MC-TDPR02 sits in the field-termination power path; it does not perform the logic processing that a controller or I/O processor performs. Western Process Computers’ current hardware catalog likewise identifies 51304425-175 as “DI 24V Power Distribution CC CE FTA.”

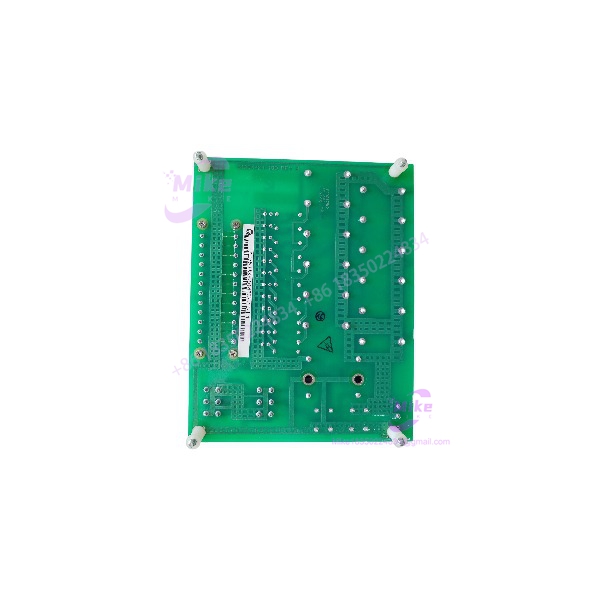

MC-TDPR02 51304425-175
Key Technical Specifications
- Manufacturer: Honeywell
- Model: MC-TDPR02
- Part Number: 51304425-175
- Product Type: Digital Input Power Distribution Assembly
- FTA Type: DI Power Distribution Assembly
- Nominal Power: 24 VDC
- Construction: Conformally coated
- Compliance Variant: CE-compliant
- System Family: Honeywell Advanced Process Manager / Process Manager FTA hardware
- Primary Function: Distribution of 24 VDC power associated with digital-input field termination
- Architecture: Field Termination Assembly rather than a controller or standalone I/O processor
- Legacy Status: Legacy Honeywell hardware intended for maintenance, replacement, and installed-system support
The Honeywell hardware documentation is particularly useful here because it distinguishes the conformally coated MC version from the earlier MU-series assemblies. For MC-TDPR02, 51304425-175 is the CE-compliant coated version, while 51304425-150 is listed as the non-CE part number.
Application Scenarios & Pain Points
Legacy Honeywell DCS Maintenance
A failed power-distribution FTA can create symptoms that look like an I/O problem: missing digital-input states, unstable field circuits, or unexpected loss of multiple input points. Replacing the correct distribution assembly can isolate the problem without redesigning the complete I/O cabinet.
Planned Shutdown Spare
The MC- 51304425-175 is a sensible component to identify by exact part number in a legacy-system spare inventory. Power-distribution hardware is easy to overlook because it does not execute control logic, yet its failure can affect several downstream field circuits simultaneously.
CE-Version Replacement
For installations requiring the CE-compliant coated configuration, the suffix matters. 51304425-175 is specifically documented as the CE-compliant part number for MC-. Do not substitute the -150 version simply because the model string is identical.
Legacy Rack Migration
During a rack migration or cabinet refurbishment, document the existing FTA power architecture before removing hardware. The MC- should be treated as part of the complete Honeywell FTA ecosystem rather than as a generic 24 VDC distribution board.
QA & Live Testing SOP
A good inspection for starts with identity verification and ends with a controlled power-distribution test.
1. Nameplate and Part-Number Verification
- Confirm Honeywell manufacturer marking.
- Confirm model marking.
- Confirm complete part number 51304425-175.
- Verify the hardware corresponds to the CE/conformally coated configuration.
- Photograph the board and connector arrangement before acceptance.
2. Physical Inspection
- Examine the PCB and terminal hardware for corrosion or contamination.
- Inspect connectors for bent, recessed, or oxidized contacts.
- Check the conformal coating for cracking, peeling, contamination, or obvious rework.
- Inspect mounting hardware and terminal blocks for mechanical damage.
3. Electrical Inspection
- Perform continuity checks before applying power.
- Verify there is no unintended short between the relevant supply and return paths.
- Confirm the site’s 24 VDC source is appropriate for the associated digital-input architecture.
- Check downstream wiring for shorts before energizing the distribution assembly.
4. System Test
The meaningful test is not simply “board powers on.”
Install the MC- within a compatible Honeywell FTA test configuration and verify that the expected 24 VDC distribution reaches the associated digital-input circuits. Then exercise representative field-input circuits and confirm that the Honeywell I/O system sees the expected input transitions.
5. ESD and Packaging
- Package the assembly in ESD-safe material.
- Protect exposed connectors and terminals from impact.
- Keep the conformally coated board clean and dry.
- Do not allow conductive packing material to contact exposed circuitry.
Field Engineer’s Pitfall Guide
❗ Do not confuse MC- with a digital-input I/O processor. MC- is a DI power distribution assembly. It does not replace the processor responsible for input acquisition and logic handling.
❗ Do not ignore the suffix. For MC-, Honeywell documentation distinguishes 51304425-175 as the CE-compliant part from 51304425-150 as the non-CE part. If the existing cabinet requires the CE/coated version, verify the complete number before procurement.
❗ Do not diagnose a multi-channel input failure as an I/O-card failure immediately. A common power-distribution problem can affect several downstream input circuits at once. Check the 24 VDC distribution path, field wiring, and FTA connections before replacing the processor.
❗ Do not hot-swap based on mechanical fit alone. Confirm the Honeywell system’s approved maintenance procedure, rack configuration, field power state, and backplane/FTA arrangement before removing the assembly.
Intent-Driven FAQ
What is Honeywell MC-?
is a Honeywell Digital Input 24 VDC Power Distribution Assembly used within the company’s legacy FTA architecture. It distributes field power associated with digital-input circuits rather than executing the digital-input logic itself.
What is the part number for MC-?
The CE-compliant, conformally coated version is 51304425-175. Honeywell documentation lists 51304425-150 as the corresponding non-CE part number.
Is MC- an FTA?
Yes. The documented FTA classification is DI Power Dist Assy, and current Honeywell hardware catalogs identify 51304425-175 as a conformally coated CE FTA.
What voltage does MC- distribute?
The assembly is associated with 24 VDC digital-input power distribution. Current documentation identifies the FTA as “DI 24V Power Distribution.”
Is 51304425-175 the CE version?
Yes. Honeywell documentation lists 51304425-175 as the CE-compliant part number for MC- and 51304425-150 as the non-CE number.
Does MC- process digital input signals?
No. Its primary function is power distribution. Do not treat it as a substitute for the Honeywell digital-input processor or acquisition hardware.
What should I verify before purchasing a replacement?
Verify the complete MC- / 51304425-175 identification, CE/coating requirement, connector and terminal arrangement, installed Honeywell FTA architecture, and the associated 24 VDC field-power scheme. For an installed legacy DCS, matching the complete hardware identity is more important than matching a generic description such as “24 VDC power distribution.”
