Description

Honeywell CC-TCNT01 | C300 Processor Termination Assembly Specs

Dynamic Product Introduction

Staring down a cabinet retrofit when controller communication loops fail to sync can quickly derail a tight commissioning schedule. When aging backplate connectors suffer from mechanical stress or pin oxidation, the entire control node loses determinism.

Enter the Honeywell CC-TCNT01, a heavy-duty Input/Output Termination Assembly engineered to anchor Experion C300 controller nodes. By consolidating Fault Tolerant Ethernet (FTE) drops, redundant I/O link ports, and power distribution into a single structured baseplate, this CC-TCNT01 hardware revision eliminates messy cabling tangles. Facilities upgrading to this controller IOTA experience superior signal reliability and faster processor swapouts—though this strictly depends on proper backplane alignment and secure grounding.

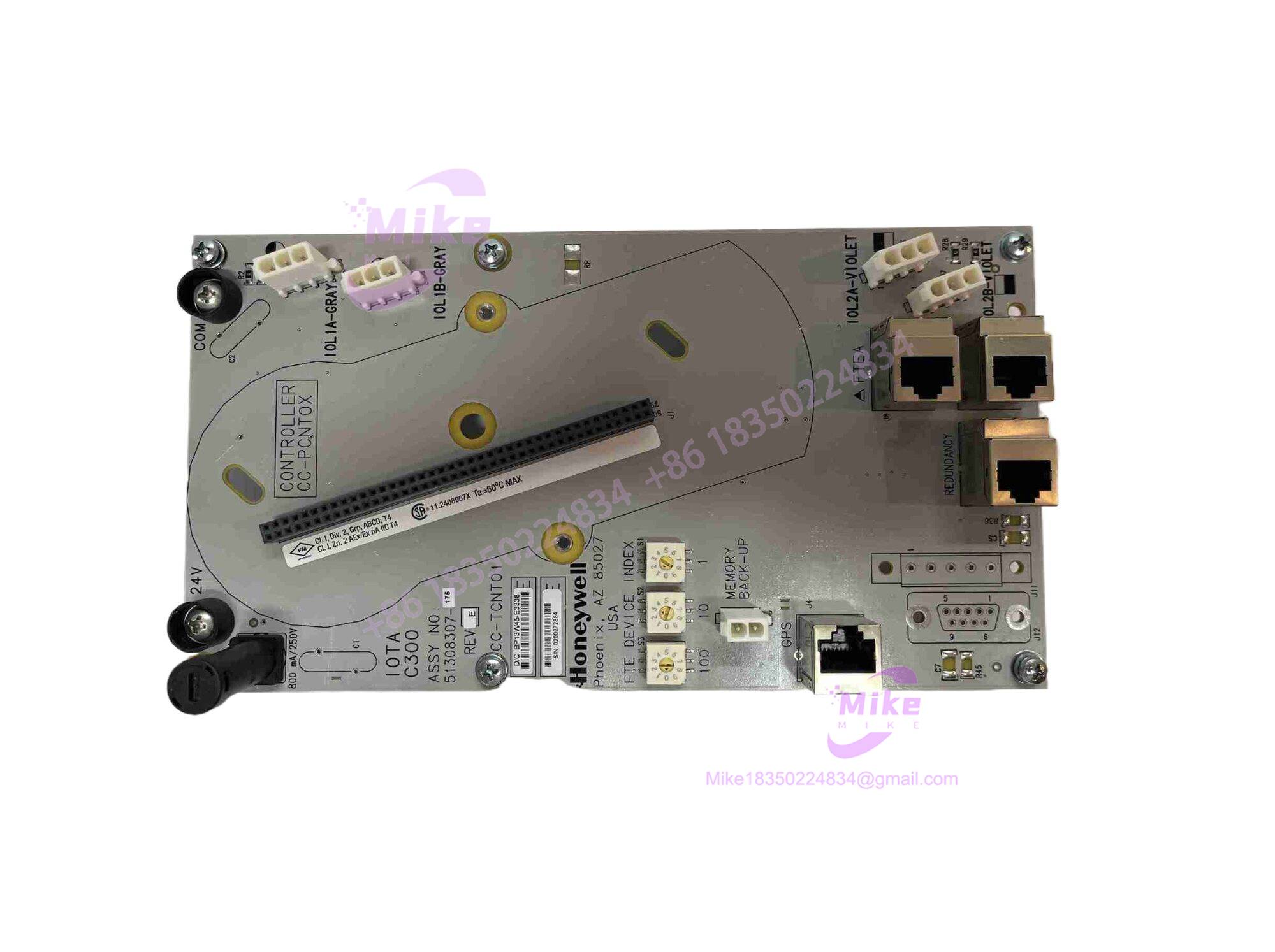

CC-TCNT01

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring surplus or replacement automation hardware demands an uncompromising quality control pipeline. In field deployments, dropping an untested board into a live rack can trigger catastrophic controller faults.

• Inbound Verification: Every incoming shipment of the CC-TCNT01 undergoes meticulous customs documentation review alongside high-magnification holographic serial number checks to block gray-market counterfeits.
• Live Simulation: Technicians mount the CC-TCNT01 hardware onto an authentic Series C test bench to verify backplane pin alignment and mechanical latching integrity.
• Diagnostics: Engineers execute full-scale FTE network handshakes, verify 24 VDC power distribution stability using calibrated multimeters, and run a 24-hour thermal heat run to flush out infant mortality defects.
• Final Prep: Once cleared, the unit is logged by revision level, packed in anti-static shielding, and vacuum-sealed for storage.

The Field Engineer’s Pitfall Guide

❗ Backplane Pin Bending: Forcing the heavy C300 controller module onto the CC-TCNT01 base without verifying correct keying alignment can bend delicate internal pins, instantly destroying communication paths. I’ve seen plants delay startup because a rushed installation compromised the primary I/O link connector.

❗ FTE Network Ring Isolation: The CC- manages critical Fault Tolerant Ethernet paths. Failing to configure network switches or misplacing redundant cable drops during a controller swap will break the fault-tolerant ring and trigger nuisance failover alarms.

❗ Power Supply Sourcing Limits: Drawing excessive auxiliary power across uncalculated loop headers connected to the CC- will trip internal protection circuits if total cabinet power distribution isn’t balanced.

Intent-Driven FAQ

• Will I lose my configuration logic if I swap out a faulty CC- assembly?

  No. The control execution logic resides in the C300 processor module and system database, whereas the CC- functions as the passive and active connection baseplate.

• Does the CC- support redundant controller configurations?

  Yes, when paired with an identical second CC- base and a proper redundancy cable kit, it facilitates seamless 1:1 backup controller failovers.

• Can this IOTA handle high-speed data exchanges with remote I/O drops?

  Yes, the integrated dual I/O link connectors provide high-speed, deterministic communication with Series C remote data gathering panels.

• What maintenance tools are required to verify backplane health locally?

  A certified digital multimeter and network diagnostic tools are necessary for validating incoming 24 VDC rails and FTE link status.

• Are factory-sealed units supplied with updated firmware?

  Surprise inventory often ships with baseline factory hardware revisions. Always cross-check the CC- build level against your system engineering requirements before final commissioning.
