Honeywell CC-PDIS01 | 32-Channel 24VDC Sequence of Events 1ms Scan
Product Introduction
When a complex plant trip cascades across multiple systems, standard control scan rates often fail to capture the exact root-cause timeline. Operating natively inside the Series-C architecture, the CC-PDIS01 functions as an advanced Digital Input Sequence of Events (DISOE) module, engineered to time-stamp field contact closures with uncompromising precision.
Forensic root-cause analysis demands absolute temporal accuracy during an emergency shutdown. The CC-PDIS01 monitors 32 discrete channels simultaneously, providing a dedicated 1 ms SOE resolution layer that exposes the precise order of alarm and interlock trips (—though your mileage may vary depending on cabinet temp and active ventilation).

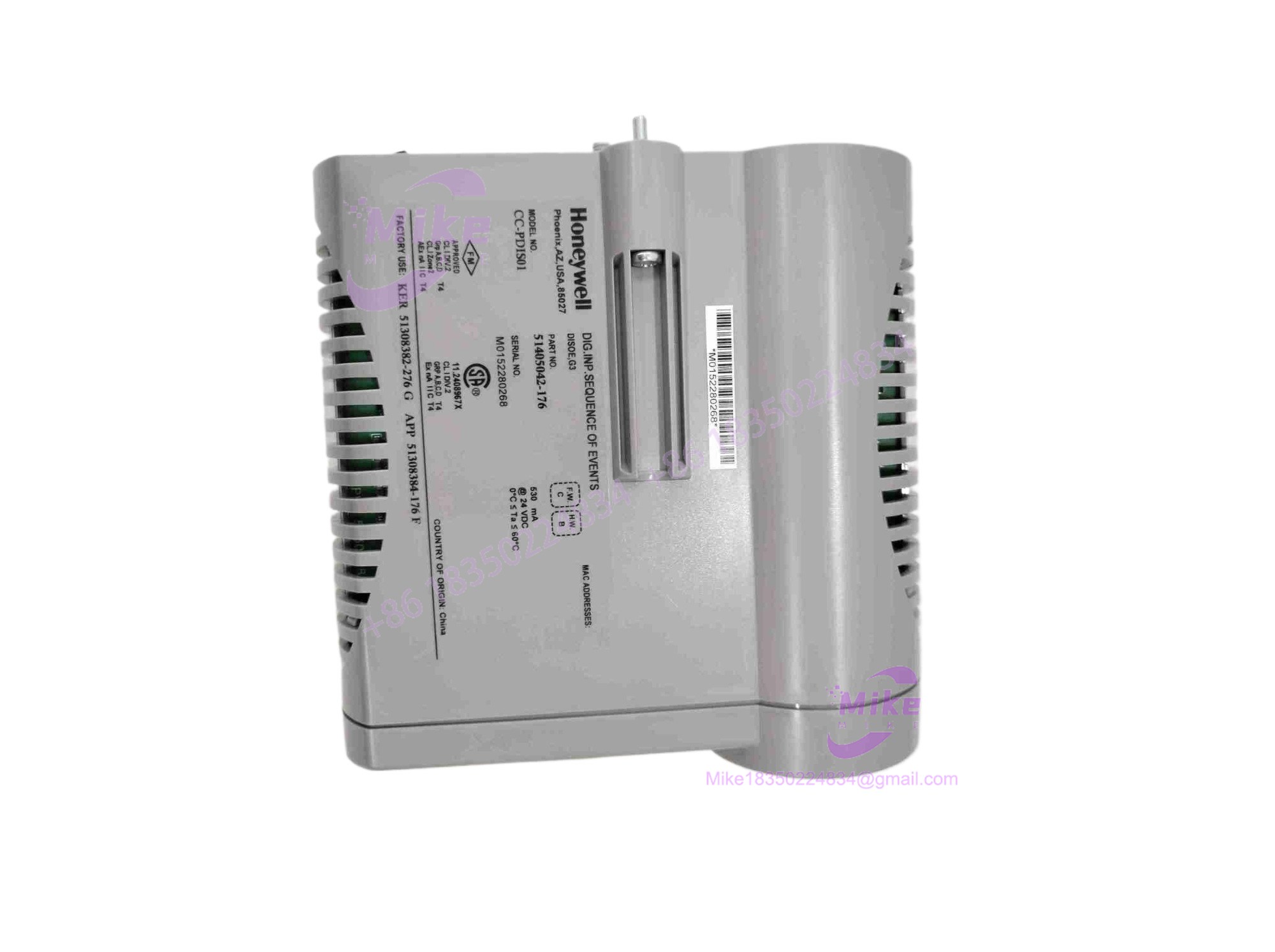

CC-PDIS01
Key Technical Specifications
| Parameter | Technical Specification |
| Input Channels | 32 discrete digital input channels |
| Input Voltage Range | 18 VDC to 30 VDC nominal |
| SOE Resolution | 1 ms time-stamping accuracy |
| PV Scan Rates | Normal (20 ms), Fast (5 ms), and SOE modes |
| ON Sense Threshold | \ge 13 VDC or \ge 3 mA |
| OFF Sense Threshold | \le 5 VDC or \le 1.2 mA |
| Galvanic Isolation | 1500 VAC RMS or \pm 1500 VDC optical isolation |
| Operating Temp Range | 0^\circC to +55^\circC (standard cabinet environment) |
Application Scenarios & Pain Points
- Emergency Shutdown (ESD) Root-Cause Auditing: Disentangling which valve tripped first during a compressor blackout is notoriously difficult with standard 20ms I/O scans; the CC-PDIS01 logs microsecond-accurate state changes to satisfy strict safety compliance audits.
- A “With vs. Without” Contrast: Without hardware-level time stamping, sequential alarms appear clustered within the same software scan cycle, leaving engineers guessing at the true sequence of failure. With the CC-PDIS01, every transition is ordered down to the millisecond.
- High-Vibration Turbo-Machinery Skids: Rapidly fluctuating auxiliary contacts require robust filtering and noise immunity to prevent ghost transitions from triggering false trip logs.
QA & Live Testing SOP (Trust Signal)
We treat surplus industrial hardware with strict scrutiny. Every CC-PDIS01 undergoes a rigorous multi-stage evaluation before hitting our inventory shelf. First, we verify physical OEM seals and inspect backplane pin integrity under magnification. Next, we drop the CC- onto a live test rack running a compatible controller node, injecting precise pulsed 24VDC transitions to validate optical isolation channels and 1 ms time-stamp synchronization. Finally, the card is wrapped in dissipative ESD-safe packaging to ensure it survives transit straight to your plant floor.
Field Engineer’s Pitfall Guide
- ❗ Firmware Revision Mismatch: Dropping a newer revision CC- onto an outdated controller backplane without verifying the system software tree can trigger communication faults. Check your node configuration files before initiating a hot-swap.
- ❗ Field Power Supply Sag: Ensure your auxiliary 24VDC loop power supplies are robust enough to handle simultaneous state changes across all 32 channels without dropping below the 18VDC minimum threshold.
- ❗ SOE Buffer Configuration: Failing to map the high-resolution event buffers correctly in the Control Builder database can result in truncated event logs during a major plant trip sequence.
Intent-Driven FAQ
- Can I hot-swap the CC- without crashing the rack?
Yes, the Series-C architecture supports hot-swapping under normal operating conditions, provided you follow proper hardware release procedures and ensure the replacement card matches your exact configuration.
- Is the CC- compatible with older controller firmware revisions?
Compatibility depends on your specific system profile release. Verify your node builder database version, as older software loads may require a minor patch to correctly process the 1 ms SOE data stream of the CC-.
- How do you verify the authenticity of surplus units?
Every CC- we supply is sourced directly from decommissioned industrial inventory, verified for original component markings, and bench-tested under power.
- What is the standard warranty on this module?
We back every CC- unit with a comprehensive 12-month replacement warranty covering any functional defects.
- Does this module support open-wire detection?
Yes, the CC- features open wire detection capabilities when operating in Normal mode, helping technicians identify broken field sensor loops instantly.
