GE Fanuc IC660EBD025 | Genius I/O Electronics Assembly
Dynamic Product Introduction
When a Genius I/O block fails, replacing the entire assembly is not always necessary. If the terminal assembly and field wiring remain serviceable, sourcing the correct electronics assembly can be a practical way to restore an installed control system—provided the replacement matches the original block configuration.
The GE Fanuc IC660EBD025 is the electronics assembly for the IC660BBD025, a 32-circuit DC sink I/O block. The complete block supports 5, 12, or 24 VDC sink applications and is used in distributed Genius I/O installations. Its discrete circuits handle field input and output signals, with the corresponding terminal assembly providing the field-wiring interface.
This is not a complete field-ready I/O block. The IC660EBD025 is a component-level replacement, and revision compatibility matters—especially in older installations where the terminal assembly and housing may have been in service for decades. For maintenance buyers, exact identification and a documented functional test are more useful than a generic “tested” label.

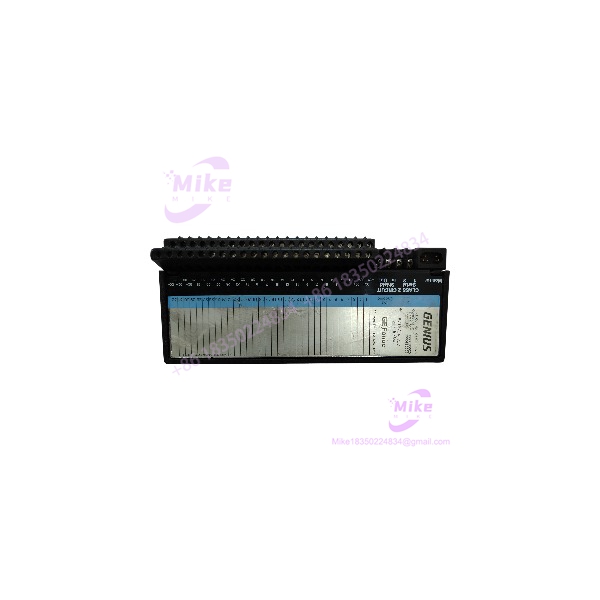

IC660EBD025
Key Technical Specifications
- Catalog Number: IC660EBD025
- Manufacturer: GE Fanuc
- Series: Genius I/O
- Component: Electronics assembly
- Compatible Block: IC660BBD025
- Terminal Assembly: IC660TBD025
- I/O Type: 32-circuit DC sink I/O
- Voltage Class: 5/12/24 VDC
- Operating Voltage: 10–30 VDC for 12/24 V supply configuration
- 5 V Supply Range: 4.9–5.3 VDC, sink-block configuration
- Maximum Steady-State Output Current: 0.5 A per circuit
- Maximum Total Block Output Current: 16 A
- Maximum Inrush Current: 4 A for up to 10 ms
- Block-to-Block Isolation: 850 V
- Typical Required DC Power: 150 mA
- Maximum Required DC Power: 300 mA
- Maximum Ripple: 10% at 12/24 V; 1% at 5 V
- Power Supply Dropout Time: 4 ms at 12 V; 20 ms at 24 V
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +100°C
- Humidity: 5–95%, non-condensing
- Approximate Complete-Block Dimensions: 8.83 × 3.56 × 4.42 in.
- Approximate Complete-Block Weight: 4 lb.
Electrical ratings above describe the IC660BBD025 block family associated with the IC660EBD025 electronics assembly. They should not be interpreted as independent board-only ratings.
Global Sourcing & Live-Test SOP
Inbound Verification
- Photograph the complete IC660EBD025 catalog number and revision markings.
- Confirm that the item is the electronics assembly, not a complete IC660BBD025 block or IC660TBD025 terminal assembly.
- Verify compatibility with the installed terminal assembly.
- Inspect connectors, PCB surfaces, mounting points, and housing for corrosion, contamination, or previous rework.
- Review supplier traceability paperwork and available serial/lot information.
- Confirm the revision suffix; Revision K and later may involve newer housing and terminal/door compatibility considerations.
Functional Test
- Use a compatible IC660BBD025/IC660TBD025 test arrangement.
- Verify the intended supply configuration before applying power.
- Confirm normal startup and Genius bus communication.
- Exercise representative input and output circuits using a controlled test fixture.
- Verify circuit switching behavior and status indication.
- Check output loading against the 0.5 A per-circuit and 16 A total block limits.
- Record tested channels, test conditions, assembly revision, and any limitations.
Burn-In & Final Preparation
- Perform an extended powered test under controlled conditions.
- Monitor for intermittent circuit faults or communication dropouts.
- Record the configuration used during validation.
- Package in ESD-safe material with connector protection.
- Clearly state the actual condition: used, refurbished, tested surplus, or factory sealed.
A 24-hour heat run can be used as a supplier-defined screening procedure; it should not be represented as an OEM-mandated acceptance test without supporting documentation.
Field Engineer’s Pitfall Guide
❗ Confirm the Exact Block and Revision
is the electronics assembly for IC660BBD025. The complete block uses IC660TBD025 as its terminal assembly. Revision K and later may use a newer electronic housing, so confirm the installed terminal/door arrangement before ordering.
❗ Respect Sink-I/O Wiring and Voltage Class
The is a 32-circuit sink I/O block rated for 5/12/24 VDC configurations. Do not substitute a source-type block or assume that a similar-looking Genius assembly has the same field wiring. Verify the circuit’s electrical design before reconnecting field devices.
❗ Check Per-Circuit and Total Current Limits
The associated block is rated for up to 0.5 A steady-state output current per circuit and 16 A total. A replacement that passes a no-load bench test may still fail under the actual field load. Confirm both the individual circuit demand and the aggregate block load during commissioning.
Intent-Driven FAQ
What is the GE Fanuc ?
It is the electronics assembly for the Genius I/O 32-circuit DC sink block.
Is a complete I/O block?
No. It is the electronics assembly only. The corresponding complete block is , which uses the IC660TBD025 terminal assembly.
What voltage class does the support?
It is associated with the 5/12/24 VDC sink I/O block. Confirm the existing block’s supply configuration and field wiring before installation.
Can I use with IC660TBD024?
Do not assume compatibility. is documented for and its IC660TBD025 terminal assembly. Verify the exact terminal assembly and hardware revision before considering any substitution.
Is still manufactured?
It is a legacy/discontinued GE Fanuc component. Buyers should verify current stock condition, revision, test status, and warranty terms with the supplier rather than assume new OEM production.
Can be hot-swapped?
Do not assume hot-swap safety. Follow the site’s approved Genius I/O maintenance procedure and assess the effect of removing the assembly on field circuits, bus communication, and the controlled process.
What should I verify before purchasing?
Confirm the exact number, revision, compatible / hardware, physical condition, documented test results, and seller warranty. If the requirement is a complete block, specify that explicitly.
