Description

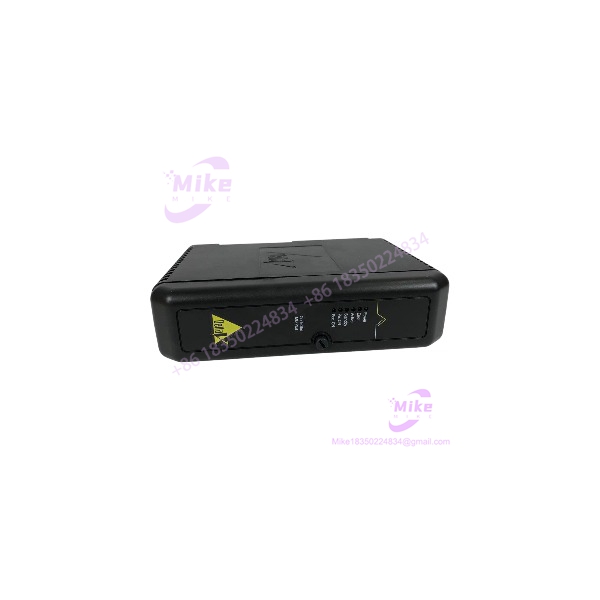

Emerson KJ2003X1-BB1 | VE3006 DCS Controller
Product Introduction
A DeltaV controller replacement is not a simple board swap. The Emerson KJ2003X1-BB1 MD Plus Controller is a system-specific control component, and successful replacement depends on matching the controller model, hardware revision, system configuration, and application requirements.
The KJ2003X1-BB1 is identified in supplier references as the VE3006 MD Plus Controller. Emerson’s instruction sheet documents a +5 VDC LocalBus power rating of 1.4 A and specifies environmental limits and installation precautions. Those details matter when qualifying a surplus controller for a legacy DeltaV system.
For maintenance teams, the priority is to verify the exact model and ordering-number markings, preserve the existing controller configuration, and confirm compatibility with the installed DeltaV system before commissioning. A unit that passes a basic bench power-up should not automatically be treated as a production-ready controller.

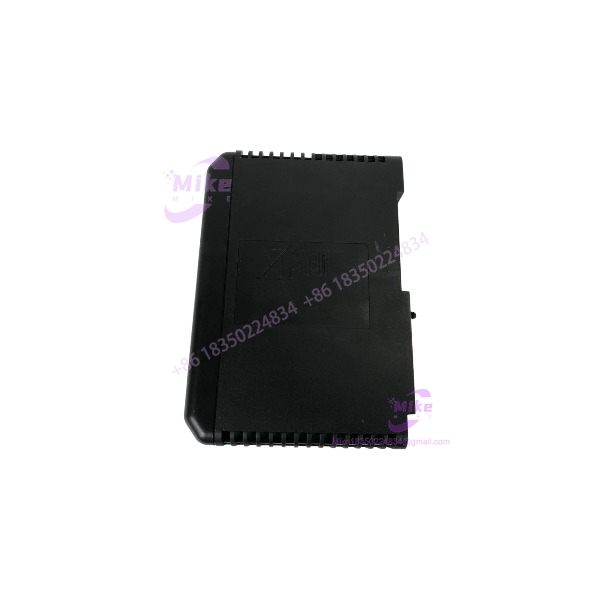

KJ2003X1-BB1
Key Technical Specifications
- Model: KJ2003X1-BB1
- Manufacturer: Emerson / Fisher-Rosemount
- System: DeltaV DCS
- Controller Designation: MD Plus Controller
- Associated Model Reference: VE3006
- Ordering Number References: 12P3439X012 / 12P3439X032; confirm the actual unit label
- LocalBus Power Rating: +5 VDC at 1.4 A
- Ambient Temperature: -40°C to +70°C, per OEM instruction sheet
- Relative Humidity: 5%–95%, non-condensing
- Shock Resistance: 10 G, half-sine, 11 ms
- Vibration: 1 mm peak-to-peak from 5–16 Hz; 0.5 G from 16–150 Hz
- Airborne Contaminants: ISA-S71.04-1985 Class G3
- Hazardous-Area Reference: Class I, Division 2 and ATEX-related markings appear in OEM documentation; verify the specific unit’s approvals and installation conditions
- Removal/Insertion: System power must be de-energized before removal or insertion
- Maintenance: OEM instruction sheet states that the unit has no user-serviceable parts and does not require calibration
Specification note: The model identity and LocalBus rating are supported by OEM instruction material and supplier cross-references. Detailed processor, memory, network-interface, and application-capacity claims should be confirmed against the applicable Emerson hardware documentation and the exact controller revision. Do not infer those values from unrelated DeltaV controller models.
Global Sourcing & Live-Test SOP
For a used or surplus KJ2003X1-BB1, inspection should establish both hardware condition and configuration traceability. A controller that powers up is not necessarily ready to return to a live process.
1. Inbound Verification
- Photograph the complete nameplate and all visible labels.
- Confirm the exact KJ2003X1-BB1 model designation.
- Record the ordering number, including 12P3439X012 or 12P3439X032 if present.
- Capture serial number, hardware revision, and manufacturing details.
- Inspect the board, connectors, edge contacts, and housing for damage.
- Check for corrosion, contamination, bent contacts, or signs of unauthorized repair.
- Compare the unit’s revision and ordering number against the installed DeltaV controller.
- Preserve original labels and any included OEM documentation.
2. Controlled Power-Up
- Test only with compatible DeltaV hardware or an approved test setup.
- Confirm the applicable power and installation requirements before energizing.
- Verify that the LocalBus supply is within the specified system limits.
- Observe startup indicators and diagnostic behavior.
- Monitor for abnormal heating, unexpected resets, or unusual current draw.
- Do not attempt to disassemble the controller for internal repair; the OEM instruction sheet identifies no user-serviceable parts.
3. Controller and System Diagnostics
- Verify the controller is recognized by compatible DeltaV system infrastructure.
- Confirm hardware revision and controller identity.
- Check diagnostic status using the appropriate DeltaV engineering and maintenance tools.
- Where authorized, verify communication with the system and inspect controller status.
- Confirm the intended configuration and application compatibility.
- Record diagnostic results, firmware or revision information available through the system, and any fault indications.
Do not load, overwrite, or modify customer configuration data without authorization and a verified recovery plan.
4. Extended Heat Run
For units advertised as tested, perform an extended powered test using compatible equipment and an appropriate procedure.
Monitor:
- Startup and diagnostic stability
- LocalBus power behavior
- Controller recognition
- Communication stability
- Unexpected resets
- Abnormal temperature rise
Record the test duration, test configuration, observed status, and any faults. A 24-hour test should be claimed only if it was actually completed and documented.
5. Final Preparation and Shipment
- Record model, ordering number, serial number, and revision.
- Photograph the nameplate and connector condition.
- Preserve customer-specific configuration media and data where supplied.
- Use ESD-safe handling and protective packaging.
- Protect connectors from impact and contamination.
- State the actual condition and test status.
- Identify warranty terms as seller-provided unless an applicable OEM warranty is verified.
Field Engineer’s Pitfall Guide
❗ Do not assume all ordering numbers are interchangeable
Supplier records associate the model with more than one ordering-number reference, including 12P3439X012 and 12P3439X032. Match the complete unit markings and revision to the installed system before approving a replacement.
❗ This controller is not hot-swappable
Emerson’s instruction sheet states that the cannot be removed or inserted with system power energized. Follow the applicable DeltaV shutdown, isolation, and hazardous-area procedures. Do not treat it as a live-insertion module.
❗ A bench power-up does not prove controller compatibility
A controller may power up without being compatible with the target system’s configuration or application. Verify the DeltaV system revision, controller identity, and configuration requirements before returning the unit to service.
Intent-Driven FAQ
What is the Emerson ?
The is an Emerson DeltaV MD Plus Controller used in distributed control system applications. Supplier references also associate it with the VE3006 designation.
What is the associated DeltaV model number?
The is commonly cross-referenced to VE3006. Confirm the complete model and ordering-number markings on the actual unit before procurement.
What is the LocalBus power rating?
The OEM instruction sheet specifies +5 VDC at 1.4 A for the LocalBus. Confirm the applicable system power requirements before installation.
Can the be hot-swapped?
No. Emerson’s instruction sheet states that the controller cannot be removed or inserted while system power is energized.
Does the require calibration?
The OEM instruction sheet states that calibration is not required. This does not eliminate the need for system diagnostics and compatibility checks before commissioning.
Is the obsolete?
It is a legacy DeltaV controller commonly encountered through industrial surplus channels. Current OEM support and lifecycle status should be confirmed with Emerson for the exact model and revision.
What should I verify before buying a replacement?
Confirm the full model number, ordering number, serial number, hardware revision, condition, and seller’s test documentation. Also verify compatibility with the installed DeltaV system and the configuration required for the intended application.
Bottom Line for Buyers
The Emerson MD Plus Controller is a DeltaV-specific control component associated with VE3006 and ordering-number references including 12P3439X012 and 12P3439X032. Its documented LocalBus rating is +5 VDC at 1.4 A, and Emerson prohibits removal or insertion while system power is energized.
For procurement, match the complete nameplate and revision, request clear photographs, and ask for documented functional-test results. Confirm controller and application compatibility before treating a surplus unit as a production-ready spare.
