Emerson 5X00170G01 | Ovation DCS I/O Subsystem Card Ready to Ship

Description

Emerson 5X00170G01 | Ovation DCS I/O Subsystem Card Ready to Ship

Architect’s Product Breakdown

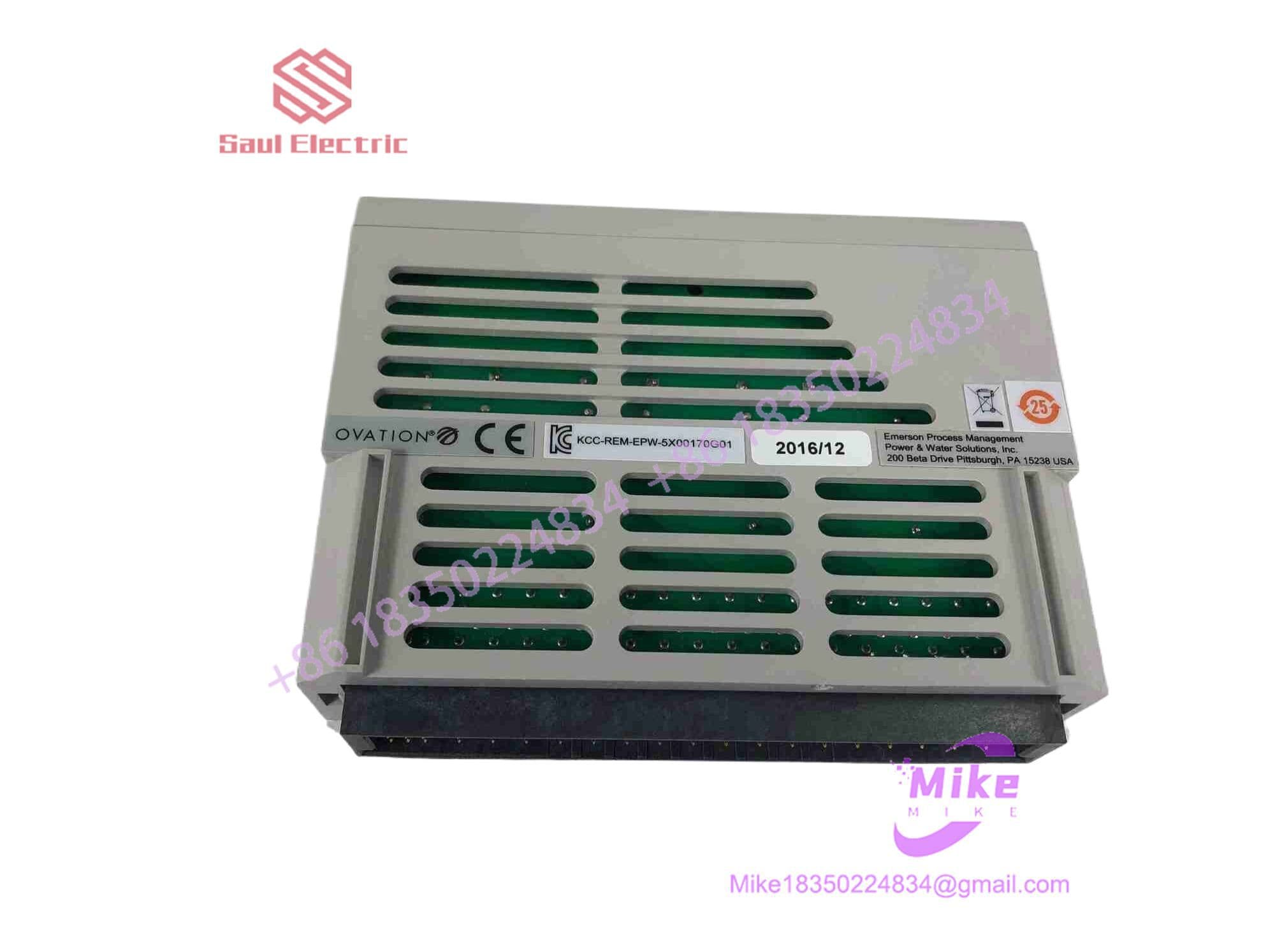

The Emerson Ovation 5X00170G01 is a HART High Performance Analog Output Personality Module (PMOD) designed to snap onto an Ovation DIN-rail base assembly. In the modular Ovation I/O architecture, the system splits functions cleanly: the Electronics Module (EMOD) handles active A/D-D/A processing and backplane communication, while the PMOD provides physical field wiring isolation, signal routing, and passive network conditioning to field actuators and smart positioners.

Specifically engineered for high-performance loops, the 5X00170G01 matches high-speed HART Analog Output EMOD cards. It enables simultaneous, bi-directional HART digital signal pass-through over the 4–20 mA analog loop without damping or distorting the high-frequency FSK (Frequency Shift Keying) HART carriers. This capability allows the Ovation Controller and asset management software (such as AMS Device Manager) to poll real-time valve stem position, actuator pressure readings, and device diagnostics while actively driving the loop.

During outage turnarounds or emergency cabinet work, technicians often make the mistake of assuming all analog output personality modules are interchangeable. Installing a standard non-HART or lower-spec PMOD in place of the 5X00170G01 can attenuate the HART carrier signal, causing intermittent HART dropouts or digital noise coupling on analog command lines. Using the exact 5X00170G01 hardware revision preserves loop impedance characteristics and ensures clean signal pass-through to field control elements.

5X00170G01

4. Key Technical Specifications

5. Field Engineer’s Pitfall Guide

WARNING: Base Alignment & Keying Pin Integrity

Mechanical keying pins on the Ovation base assembly prevent cross-plugging high-voltage cards into low-voltage analog slots. Never force the 5X00170G01 onto a base if you feel resistance. Forcing the module can shear off the plastic alignment guide pins or bend gold-plated terminal header pins, leading to intermittent open circuits on field valve command loops.

WARNING: High-Impedance Field Loop Voltage Drops

I’ve seen I&C engineers spend an entire afternoon troubleshooting a smart valve positioner that wouldn’t stroke past 75% output after a module swap. The root cause was an external loop power impedance mismatch: the combined resistance of the long field cable run, the smart positioner’s internal load, and the PMOD/EMOD loop output exceeded the 24 VDC auxiliary power supply’s compliance voltage. Always calculate total loop resistance ($R_{\text{total}} = R_{\text{wire}} + R_{\text{positioner}} + R_{\text{PMOD}}$) and verify it falls within the compliance curve of the driving EMOD before returning the loop to service.

WARNING: Incorrect Terminal Block Shield Grounding

Always terminate individual field cable shields at the dedicated shield terminals on the Ovation base unit, ensuring the shield is insulated and floating at the valve positioner end. Grounding field shields at both the PMOD base and the field enclosure creates ground loops that contaminate the 1200 Hz / 2200 Hz HART frequency carriers with 60 Hz AC hum, corrupting HART digital communications.

6. QA & Testing SOP

Every 5X00170G01 PMOD passes a thorough 4-step hardware validation process prior to release:

1. Physical & Pin-Header Inspection: Microscopic audit of edge connectors, base seating pins, solder joint integrity, and OEM serial verification.

2. Passive Loop Continuity & Impedance Check: Every signal trace and return path undergoes pin-to-pin resistance testing to verify zero open circuits, micro-cracks, or high-resistance solder bridges.

3. High-Speed HART Pass-Through Test: The module is seated on a live Ovation test base paired with a HART AO EMOD. Simulated HART field positioners are connected to verify clean FSK wave modulation and uninterrupted communication with AMS software.

4. ESD Wipedown & Safe Packaging: Cleared modules are treated with static-dissipative cleaning protocols and sealed in anti-static ESD shielding bags with physical edge protection.

7. Technical FAQ

Is the 5X00170G01 an active electronics module or a passive personality board?

The 5X00170G01 is a passive Personality Module (PMOD). It contains signal routing paths, filter networks, and terminal interface paths, but relies on the paired Electronics Module (EMOD) plugged into the adjacent slot on the base assembly for active D/A conversion and logic processing.

Can I replace a 5X00170G01 while the Ovation controller and base power are live?

Yes, PMODs can be inserted or removed under live power. However, pulling the PMOD physically breaks the circuit to the field control valves connected to that base, driving them to their fail-safe state (fail closed, fail open, or lock in place depending on actuator setup). Always place associated loops in manual and bypass plant interlocks prior to extraction.

Does the 5X00170G01 require software database changes when replaced like-for-like?

No. Replacing an existing 5X00170G01 with an identical hardware revision requires zero software configuration, database downloads, or drop reboots in Developer Studio. The controller drop sees only the active EMOD hardware address.

Why is my HART communicator failing to connect to field devices through this module?

Ensure the paired EMOD supports HART protocols and that HART polling is enabled in the Ovation point configuration. Additionally, check that the loop load resistance meets the minimum 250-ohm requirement needed by HART modems to decode the FSK signal properly.
