Emerson 1C31189G03 | 16-Channel 24VDC Isolated I/O Module
Product Introduction
When a turbine trip valve drops offline without warning, every second spent troubleshooting dead logic cards eats into plant availability. The Westinghouse Emerson 1C31189G03 slots straight into your standard Ovation I/O base unit, linking primary field instrumentation directly to the controller backbone. It processes discrete switching commands without hogging system bus bandwidth or slowing controller execution.
Running on a standard 24V DC logic rail, this module executes switching routines down in the microsecond range—far past the speed of legacy relay hardware. It features 1,500V RMS channel-to-backplane isolation to keep power spikes from burning up your primary controller CPU—though you will still want proper surge suppression on long outdoor field loops.

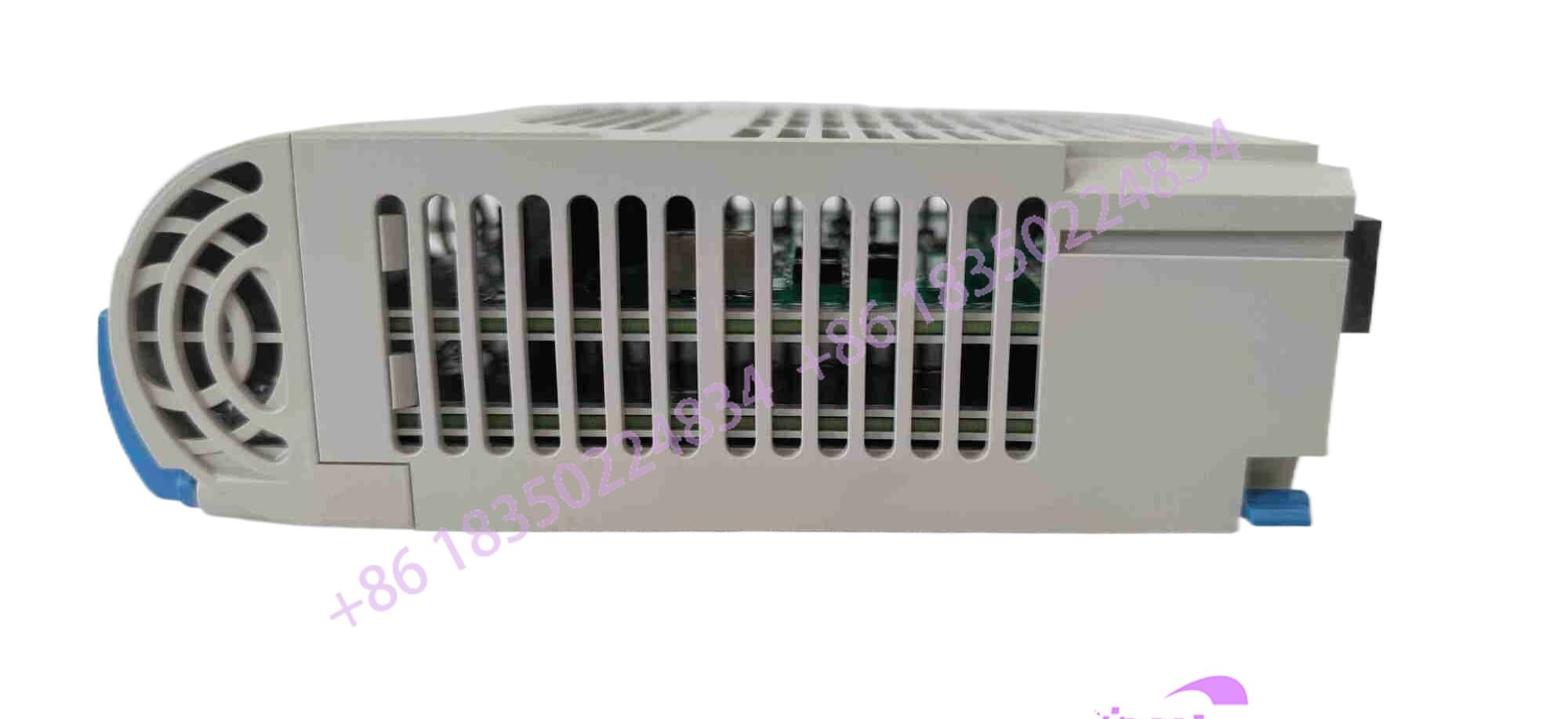

1C31189G03
Key Technical Specifications
| Parameter | Specification |
| Model Number | 1C31189G03 |
| Manufacturer | Emerson / Westinghouse |
| System Architecture | Ovation DCS |
| Channel Density | 16 Channels |
| Operating Voltage | 24V DC Nominal (18 – 32V DC range) |
| Isolation Voltage | 1,500V RMS (Channel-to-Backplane) |
| Power Dissipation | 3.5 Watts (Maximum load) |
| Logic Execution Time | < 1 ms total response latency |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Rating | 5% to 95% RH non-condensing |
Application Scenarios & Pain Points
- Field Anecdote: A combined-cycle plant in Ohio kept recording false contact chatter on boiler feed pump status loops during summer peak operations. Switching out worn-out legacy cards for fresh 1C31189G03 modules cleared up signal noise instantly, preventing a costly forced shutdown that would have burned $45,000 in unearned generation revenue.
- With vs. Without Contrast:
- Without 1C31189G03: Unfiltered inductive spikes travel up field wiring, punching through input optocouplers and locking up adjacent rack slots on the Ovation bus.
- With 1C31189G03: Dedicated internal filtering dampens electrical transient bursts before they hit the local bus, maintaining steady real-time telemetry back to the engineering workstation.
- Blunt Technical Conditions:
- High-Vibration Cabinet Drives: Conformal-coated PCB traces hold up against continuous mechanical chatter near large steam turbine pedestals.
- Corrosive Control Rooms: Designed for harsh industrial enclosures, suppressing ambient sulfur and moisture exposure before traces degrade.
QA & Live Testing SOP (Trust Signal)
We do not just box up surplus cards and call it a day. Every incoming 1C31189G03 goes through strict verification before entering warehouse inventory:
- Origin Verification: Thorough physical inspection of OEM silkscreen markings, board trace integrity, and factory conformal coatings.
- Rack Power Test: We plug the card directly into an Ovation test chassis to confirm backplane power draw, bus communication handshakes, and diagnostic LED responses.
- I/O Verification: We place every single channel on a Fluke meter, driving 24V signals across all 16 points to check isolation resistance and switching speeds.
- ESD Packaging: Sealed in static-shielding bags with moisture-absorbing desiccant packs inside double-walled, foam-lined shipping cartons.
Field Engineer’s Pitfall Guide
- ❗ Firmware & Revision Matching: Do not assume all Ovation bases play nice right out of the box. Verify that your controller base software build supports this exact board spin before pushing logic live, or you will trigger a slot mismatch fault in your system diagnostic log.
- ❗ Terminal Block Pin Alignment: Hot-swapping is physically possible, but jamming the terminal block in at an angle can bend fragile backplane pins. Straighten the guide tracks and insert straight in—replacing a bent pin rack header takes four hours you do not have.
- ❗ Field Power Isolation: Verify that your field contact power source is completely isolated before wiring backplane ground terminals—ground loops across separate power supplies will ruin your isolation barriers fast.
Intent-Driven FAQ
Can I hot-swap the 1C31189G03 while the rest of the Ovation rack is live?
Yes, the Ovation backplane architecture permits live insertion and removal under power. However, ensure the terminal block lock screw is completely disengaged before pulling, and verify that the target slot logic is placed in a safe software state to prevent uncommanded switching.
How do I tell if a channel failure is on the 1C31189G03 card or field wiring?
Check the channel diagnostic LED on the front faceplate. If the LED illuminates when 24V DC is applied across field terminals but the DCS software shows no input state change, the internal optocoupler or bus latch is damaged. If the LED stays dead, grab a multimeter and check for field voltage directly at the terminal strip.
Is this 1C31189G03 module compatible with older Westinghouse WDPF systems or strictly Ovation?
This part is designed specifically for the Ovation DCS backplane structure. While some legacy WDPF systems use similar pin layouts, power requirements and bus communication protocols differ—do not insert this into a Q-line or WDPF rack without checking backplane pinouts.
What condition is this unit delivered in?
We supply fully tested New Surplus and high-grade reconditioned 1C31189G03 units. Every card is benchmarked on a live test rack before shipping out.
Does the 1C31189G03 module come with the field terminal block assembly included?
Standard shipments include the main circuit module board. If you need the matching terminal base or custom personality module, let us know at checkout so we can bundle them together.
What warranty coverage applies to this 1C31189G03 card?
Every unit comes backed by a full 1-year operational warranty covering component defects and logic failures under standard operating conditions.
